RTLx-SC3 - Smooth Drum

RTLX-SC3 Fan Guard Diagram

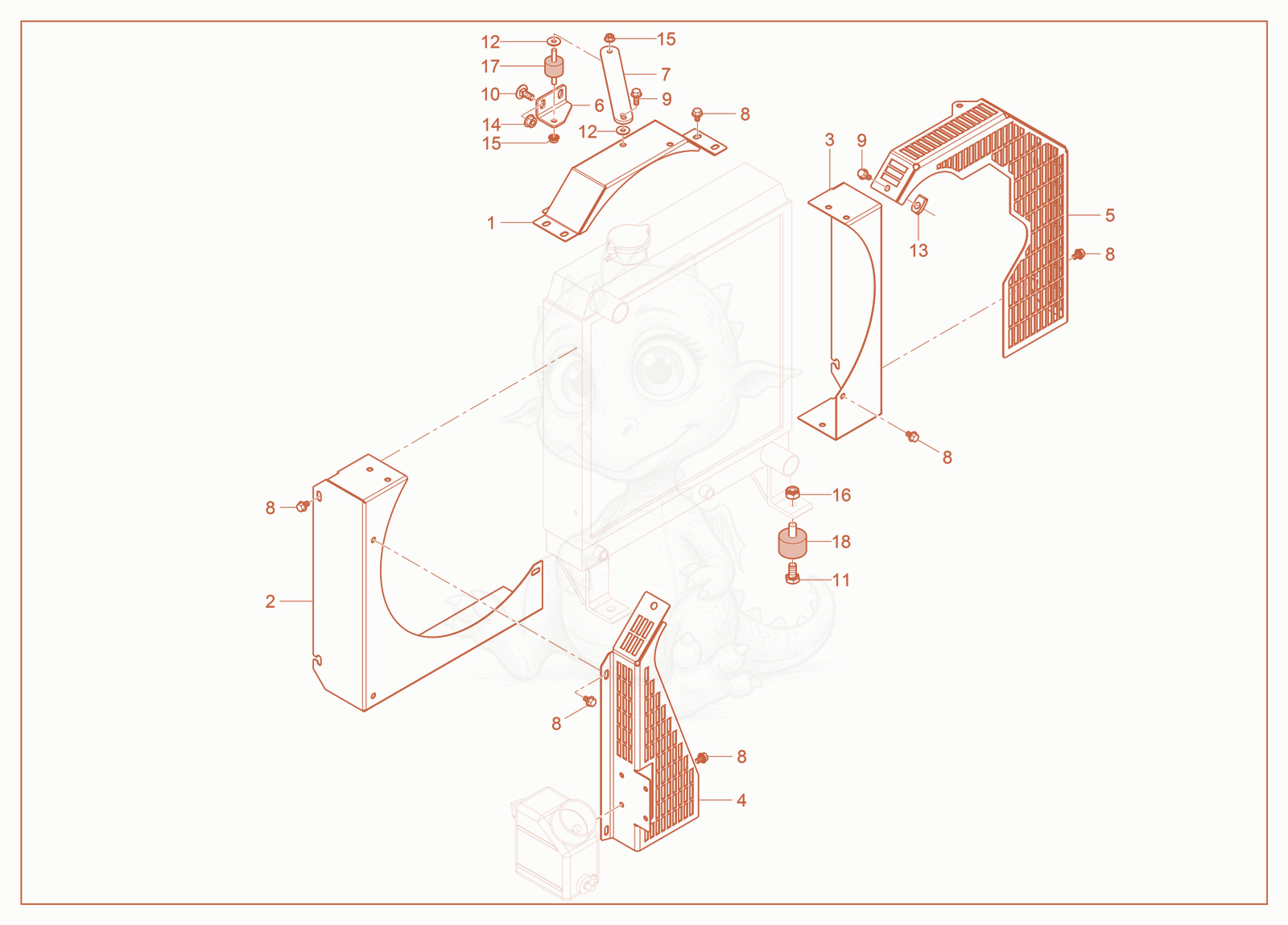

Exploded parts diagram of the Fan Guard of a Wacker Neuson RTLX-SC3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000156236
    $148.72
    C0VER-FAN,TOP P-5000176420 - 5000156236×1
  • 25000156240
    $178.59
    COVER-FAN,LH P-5000176420 - 5000156240×1
  • 35000156238
    $172.14
    COVER-FAN,RH P-5000176420 - 5000156238×1
  • 45000155128
    $93.68
    GUARD-FAN,LH P-5000176420 - 5000155128×1
  • 55000155121
    $144.98
    GUARD-FAN,RH P-5000176420 - 5000155121×1
  • 65000163899
    $182.26
    BRACKET-GRILL P-5000176420 - 5000163899×1
  • 75000163898
    $61.61
    BRACKET-RADIATOR SUPPORT P-5000176420 - 5000163898×1
  • 85000073164
    $0.42
    SCREW M6 X 10,HX.HD,SER.FLG - 5000073164×19
  • 95000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×2
  • 105000163954
    $0.35
    Bolt-Carriage M8x20-8.8,Blk EP3 - 5000163954×2
  • 115000012364
    $0.44
    SCREW M10 X 20 HX.HD. - 5000012364×2
  • 125000010373
    $0.03
    WASHER B6.4 FLAT - 5000010373×2
  • 135000150959
    $0.52
    NUT-LOCK,M6 CLIP,PHOSPHATE - 5000150959×1
  • 145000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
  • 155000029117
    $0.03
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×2
  • 165000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×2
  • 175000150205
    $3.29
    SHOCKMOUNT 25X19-60SH,FORM A - 5000150205×1
  • 185000150206
    $5.37
    SHOCKMOUNT 38.1X25.4-60SH,FM B - 5000150206×2
