RTLx-SC3 - Smooth Drum

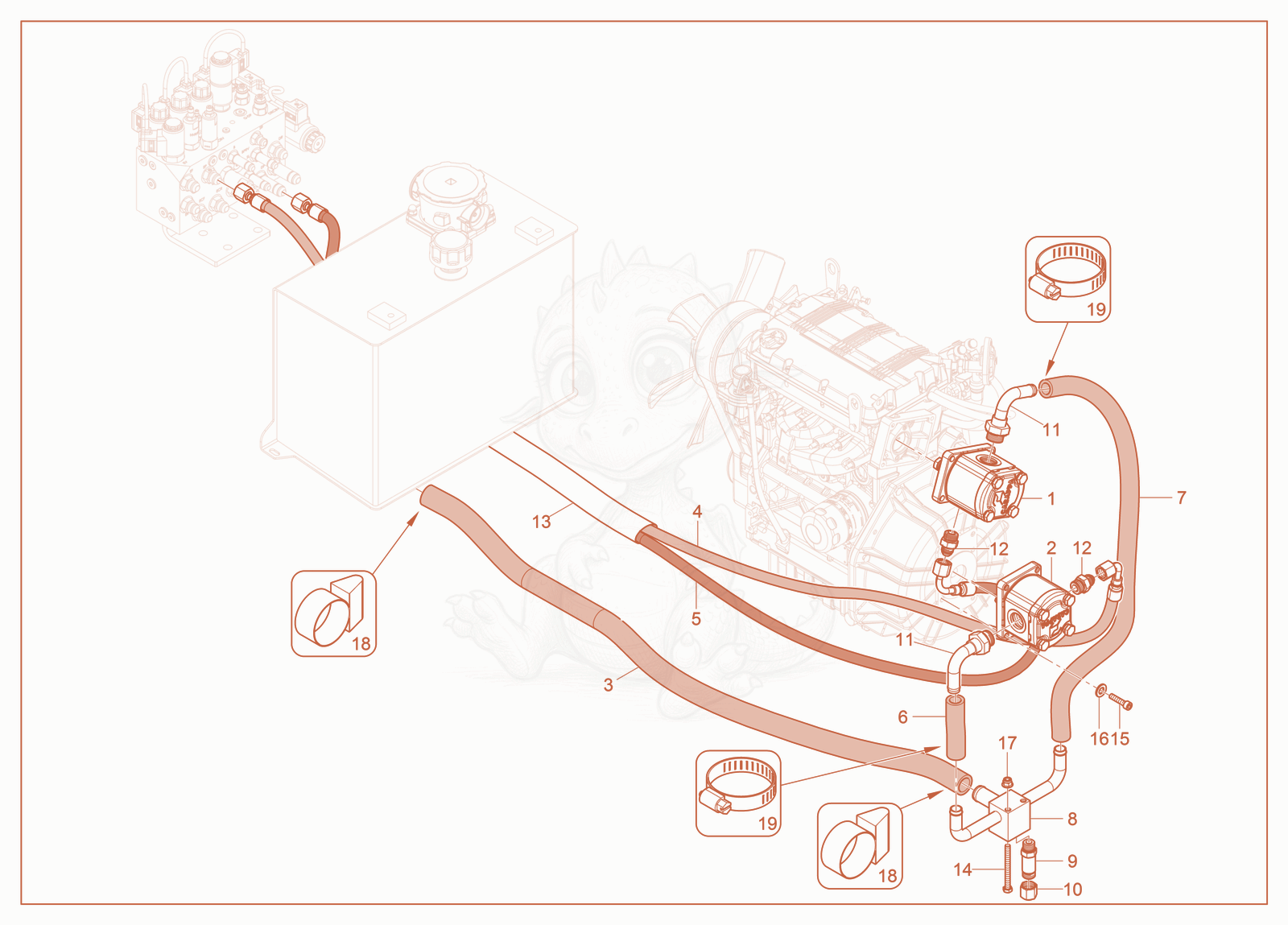

RTLX-SC3 Engine Compartment Hydraulics Diagram

Exploded parts diagram of the Engine Compartment Hydraulics of a Wacker Neuson RTLX-SC3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200022250Not stocked
    Drive pump×1
  • 25200022239Not stocked
    Exciter pump×1
  • 35100057193
    $56.50
    HOSE-SUCTION - 5100057193×1
  • 45100056986
    $48.51
    HOSE ASSEMBLY - 5100056986×1
  • 55100056983
    $53.38
    HOSE ASSEMBLY - 5100056983×1
  • 65100057192
    $4.46
    HOSE-SUCTION EP - 5100057192×1
  • 75100057191
    $20.28
    HOSE-SUCTION DP - 5100057191×1
  • 85000181897
    $142.41
    MANIFOLD-SUCTION W/DRAIN - 5000181897×1
  • 95000158572
    $12.05
    FITTING #8 - 5000158572×1
  • 105000111716Not stocked
    Fitting cap×1
  • 115000088342
    $51.56
    FITTING 90 DEG. BEADED INSERT - 5000088342×2
  • 121000343325
    $7.89
    FITTING HYD 10MB-08MJ - 1000343325×2
  • 135000111458
    $0.03
    WRAP-CABLE TIE 3.6X203MM,BLACK - 5000111458×2
  • 135100059126
    $15.26
    SLEEVE-HOSE RT PUMP - 5100059126×1
  • 145000011310
    $0.32
    SCREW M8 X 85 HX.HD. - 5000011310×2
  • 155000011540
    $0.55
    SCREW M8 X 35 SOC.HD. - 5000011540×8
  • 165000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×8
  • 175100045993
    $0.12
    NUT-M8-HEX.FLG.NYLOC-8-ZNC - 5100045993×2
  • 185000150051
    $12.17
    CLAMP-HOSE #16CLAMP-HOSE #16 - 5000150051×2
  • 195000172012
    $1.40
    CLAMP-HOSE W/O SERATN 20-32 MM - 5000172012×4
