RTLx-SC3 - Smooth Drum

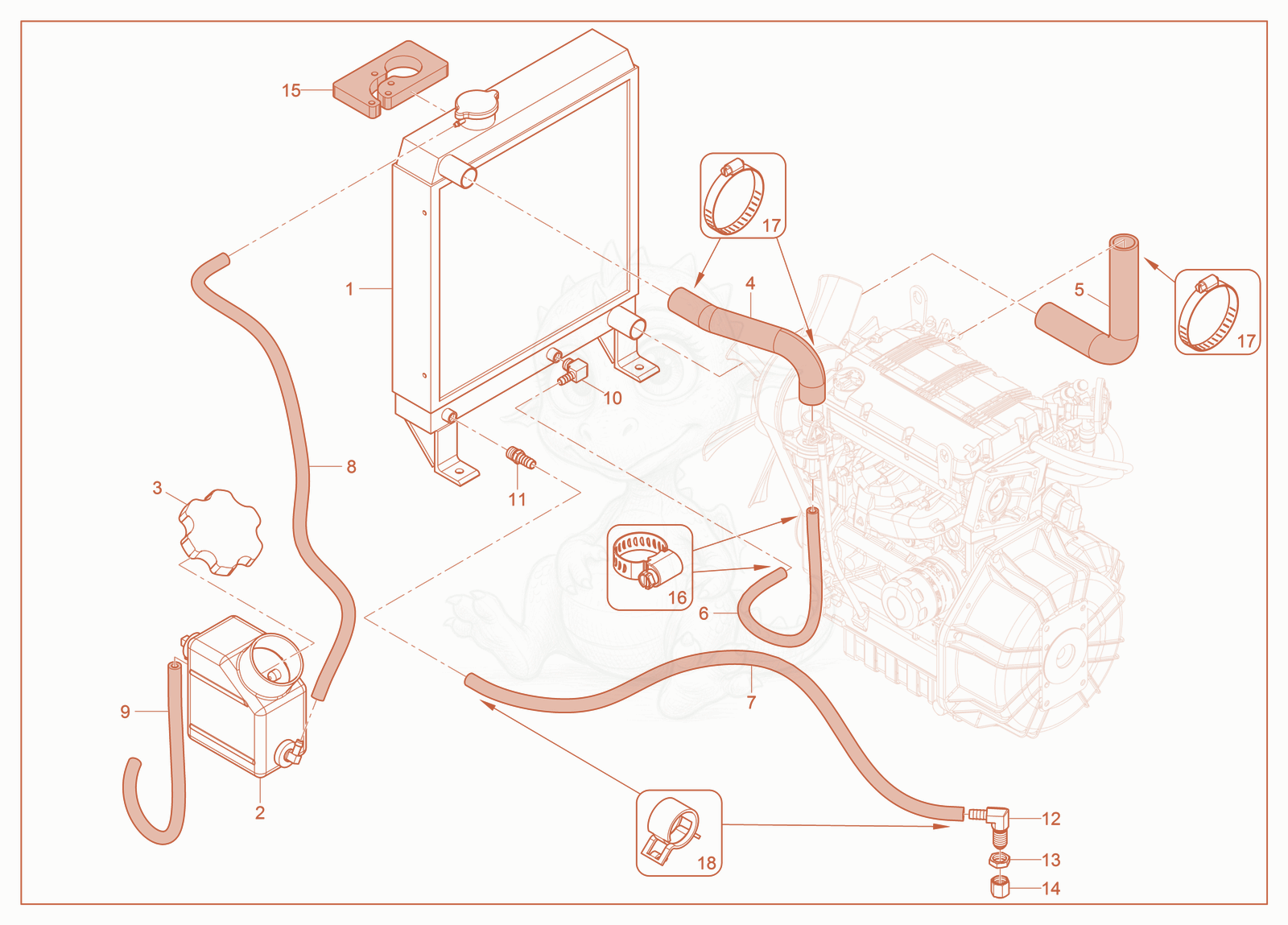

RTLX-SC3 Cooler Diagram

Exploded parts diagram of the Cooler of a Wacker Neuson RTLX-SC3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100055578
    $409.76
    RADIATOR-RT - 5100055578×1
  • 15000164350
    $32.48
    CAP-RADIATOR - 5000164350×1
  • 25000157209
    $84.17
    BOTTLE-OVERFLOW - 5000157209×1
  • 35000157255
    $3.95
    CAP-UNVENTED - 5000157255×1
  • 45000155119
    $11.31
    HOSE-RADIATOR,UPPER - 5000155119×1
  • 55000155120
    $18.43
    HOSE-RADIATOR,LOWER - 5000155120×1
  • 65100057197
    $8.36
    HOSE-COOLANT RECOVERY - 5100057197×1
  • 75100057926
    $10.82
    HOSE-COOLANT DRAIN - 5100057926×1
  • 85000111458
    $0.03
    WRAP-CABLE TIE 3.6X203MM,BLACK - 5000111458×2
  • 85100058232
    $9.54
    HOSE-COOLANT OVERFLOW - 5100058232×1
  • 95100058231
    $4.67
    HOSE-OVERFLOW DRAIN - 5100058231×1
  • 105000156401
    $9.16
    FITTING-90 DEG - 5000156401×1
  • 115100057930
    $8.54
    FITTING 08BARB-3/8MNPT - 5100057930×1
  • 125100057932
    $8.44
    FITTING HYD 08BARB-08MJBKHD90 - 5100057932×1
  • 135000160579
    $1.51
    NUT #8 3/4-16 UN/UNF-2B - 5000160579×1
  • 145000119929Not stocked
    Fitting cap×1
  • 155000111458
    $0.03
    WRAP-CABLE TIE 3.6X203MM,BLACK - 5000111458×2
  • 155000150228
    $8.93
    SEAL-RADIATOR,CAP - 5000150228×1
  • 165000172307
    $0.81
    CLAMP-HOSE W/O SERATN 12-20 MM - 5000172307×2
  • 175000119906
    $1.28
    CLAMP-HOSE,#20,.81-1.75 - 5000119906×4
  • 181000343152Not stocked
    Hose clamp×2
