RTLx-SC3 - Smooth Drum

RTLX-SC3 Rear Section/Controls Diagram

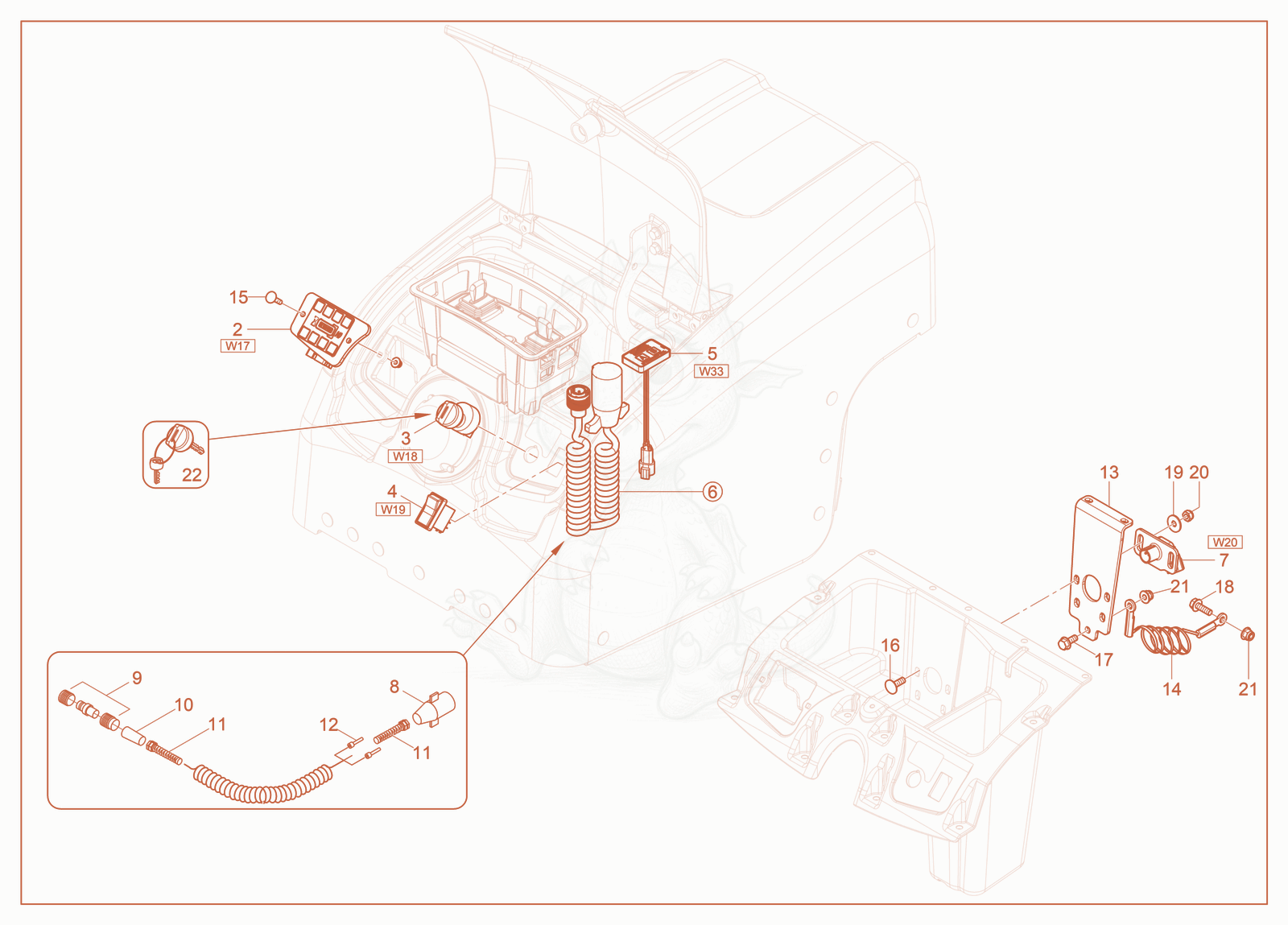

Exploded parts diagram of the Rear Section/Controls of a Wacker Neuson RTLX-SC3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000178862
    $183.78
    MODULE-DISPLAY,RT - 5000178862×1
  • 35000150115
    $83.83
    SWITCH-KEY START,2P,PCKRD TERM - 5000150115×1
  • 45000150110
    $18.70
    SWITCH-TOGGLE - 5000150110×1
  • 55000172989Not stocked
    Diagnostic control module×1
  • 65000154417
    $576.40
    CABLE-CHARGING - 5000154417×1
  • 75000178854
    $69.09
    MODULE-CHARGE PORT,RT - 5000178854×1
  • 85000164490
    $29.36
    PLUG,9-PIN CONNECTOR - 5000164490×1
  • 95000116889
    $1,020.66
    CONNECTOR-COUPLING - 5000116889×1
  • 105000088821
    $44.01
    ADAPTER-BUSHING,CORD - 5000088821×1
  • 115000089676
    $17.75
    CLAMP-CORD,STRAIN RELIEF,BLACK - 5000089676×2
  • 125100037420
    $0.55
    TERMINAL-PIN,22-18 - 5100037420×2
  • 135200019784Not stocked
    Bracket×1
  • 145000154402
    $15.61
    CABLE-LANYARD - 5000154402×1
  • 155200012212Not stocked
    Locknut×2
  • 155000164579
    $1.29
    Bolt-Carriage M6x25-4.6,Blk EP3 - 5000164579×2
  • 165000163950
    $0.56
    Bolt-Carriage M8x25-8.8,Blk EP3 - 5000163950×4
  • 175100049721
    $0.66
    SCREW-M8x20-HEX.FLG.HD-8.8-BK.ZNC - 5100049721×1
  • 185000163947
    $0.26
    SCREW M8X25 HX FL HD,BL ZN 8.8 - 5000163947×1
  • 195000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×2
  • 205000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×2
  • 215100045993
    $0.12
    NUT-M8-HEX.FLG.NYLOC-8-ZNC - 5100045993×4
  • 225000160431
    $16.71
    KEY-W/COVER & KEY RING - 5000160431×1
