RTLx-SC3 - Smooth Drum

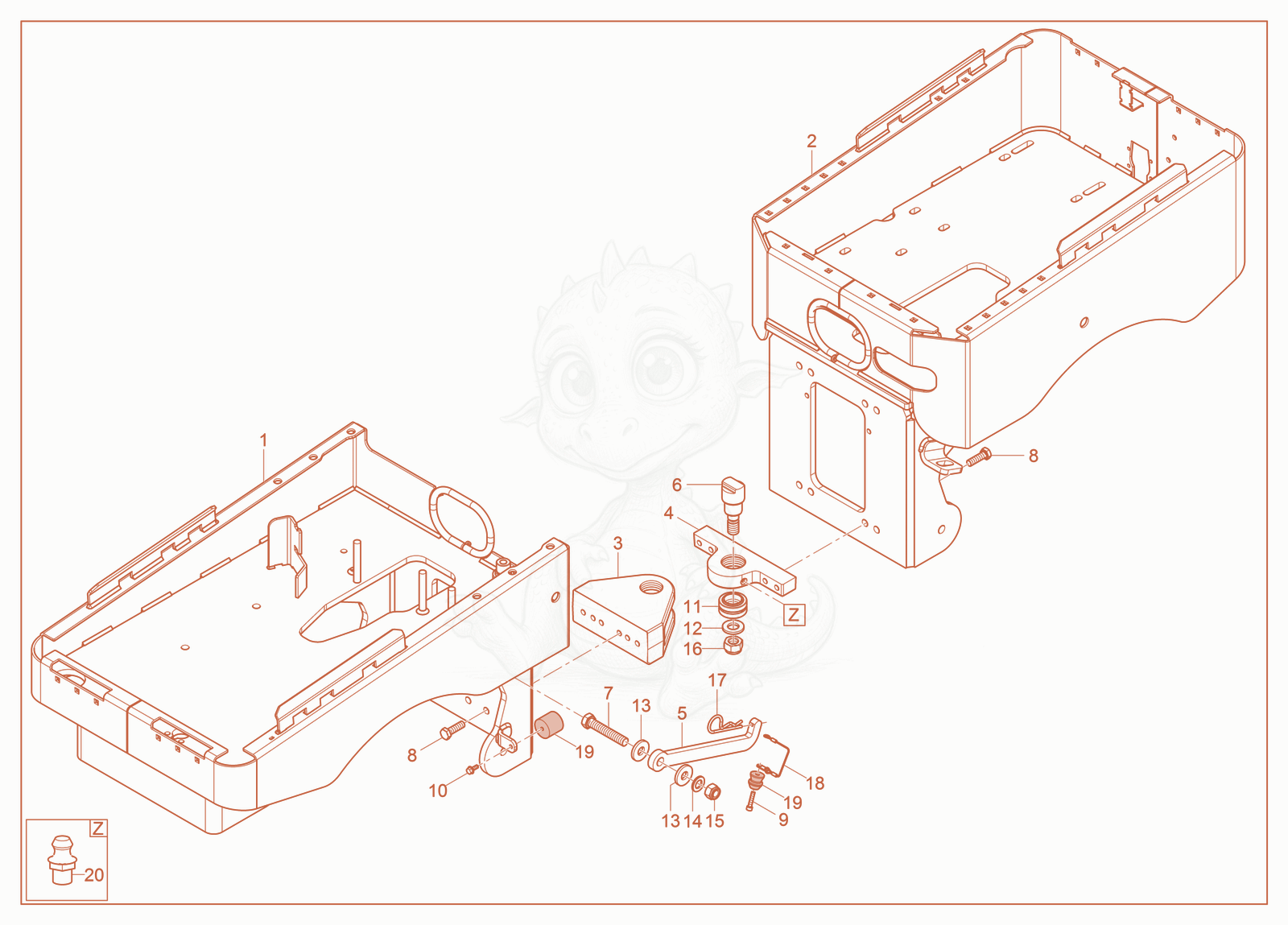

RTLX-SC3 Frame Diagram

Exploded parts diagram of the Frame of a Wacker Neuson RTLX-SC3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100055670
    $1,701.11
    FRAME-RT FRONT,WELDMENT - 5100055670×1
  • 25100055579
    $1,861.60
    FRAME-RT REAR,WELDMENT - 5100055579×1
  • 35000115448
    $204.61
    PIVOT-CLEVIS P-5000176420 - 5000115448×2
  • 45000089323
    $146.88
    Bracket-pivot P-5000176420 - 5000089323×2
  • 55000119629
    $111.47
    LOCK-ARM P-5000175819 - 5000119629×1
  • 65000119066
    $64.38
    PIVOT-PIN - 5000119066×2
  • 75000011382
    $2.18
    SCREW M16 X 90 HX.HD. - 5000011382×1
  • 85000016434
    $3.63
    SCREW M12 X 40-10.9,HX HD - 5000016434×16
  • 95000011549
    $0.14
    SCREW M6 X 30 SOC.HD. - 5000011549×1
  • 105000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×1
  • 115000079161
    $20.44
    BEARING-SPHERICAL BALL,PLAIN - 5000079161×2
  • 125000119067
    $2.59
    WASHER-HARDENED - 5000119067×2
  • 135000031121
    $1.60
    WASHER, NYLON - 5000031121×2
  • 145000010618
    $0.28
    WASHER B17 FLAT - 5000010618×1
  • 155000013496
    $0.97
    NUT-LOCK M16 HEX. - 5000013496×1
  • 165000017088
    $1.10
    NUT-LOCK M20 HEX. - 5000017088×2
  • 175002005276
    $0.99
    PIN 3-9/16 LONG,COTTER - 5002005276×1
  • 185000159035
    $12.51
    CABLE-LANYARD - 5000159035×1
  • 195000111536
    $13.04
    LATCH-DOOR - 5000111536×1
  • 205002004705
    $0.32
    FITTING-GREASE AM6 - 5002004705×4
