ST28 Compact Track Loader

ST28(S05-5) Battery, Battery Cables Diagram

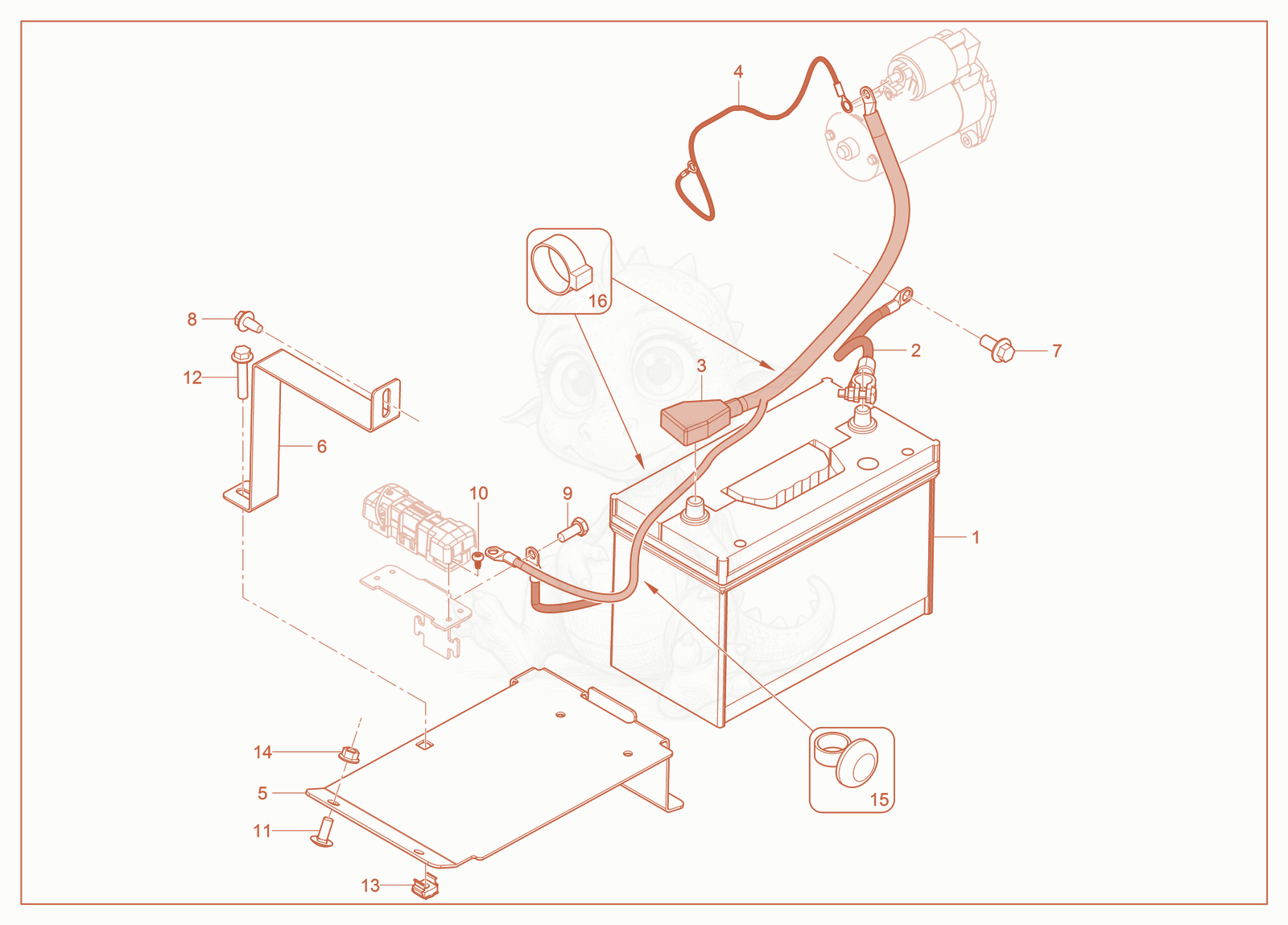

Exploded parts diagram of the Battery, Battery Cables of a Wacker Neuson ST28(S05-5), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000339853Not stocked
    Battery×1
  • 21000403206Not stocked
    Negative battery cable×1
  • 31000391632Not stocked
    Positive battery cable×1
  • 31000340447Not stocked
    Positive battery cable×1
  • 41000384605
    $47.16
    WIRING HARNESS ALTERNATOR - 1000384605×1
  • 51000364512Not stocked
    Mount×1
  • 61000348719
    $18.54
    STRAP BATTERY PAINTED - 1000348719×1
  • 71000343355Not stocked
    Bolt×1
  • 81000343280
    $0.44
    SCREW M10 X 20 THREAD ROLLING ZINC - 1000343280×1
  • 91000343393Not stocked
    Hexagonal head cap screw×1
  • 101000366944
    $0.26
    SCREW M6 X 12 THREAD ROLLING ZINC - 1000366944×2
  • 111000343297
    $0.85
    BOLT M10X25 CARRIAGE SHORT NECK 8.8 ZINC - 1000343297×3
  • 121000357182
    $0.67
    BOLT M10 X 50 FLANGED 10.9 ZINC - 1000357182×1
  • 131000343290Not stocked
    Cage nut×1
  • 141000343293
    $0.23
    NUT M10 FLANGED 10 ZINC - 1000343293×3
  • 151000357167
    $1.80
    TIE BUTTON - 1000357167×1
  • 161000342986
    $0.58
    TIE HEAVY DUTY - 1000342986×2
