ST28 Compact Track Loader

ST28(S05-5) Fuel Tank Diagram

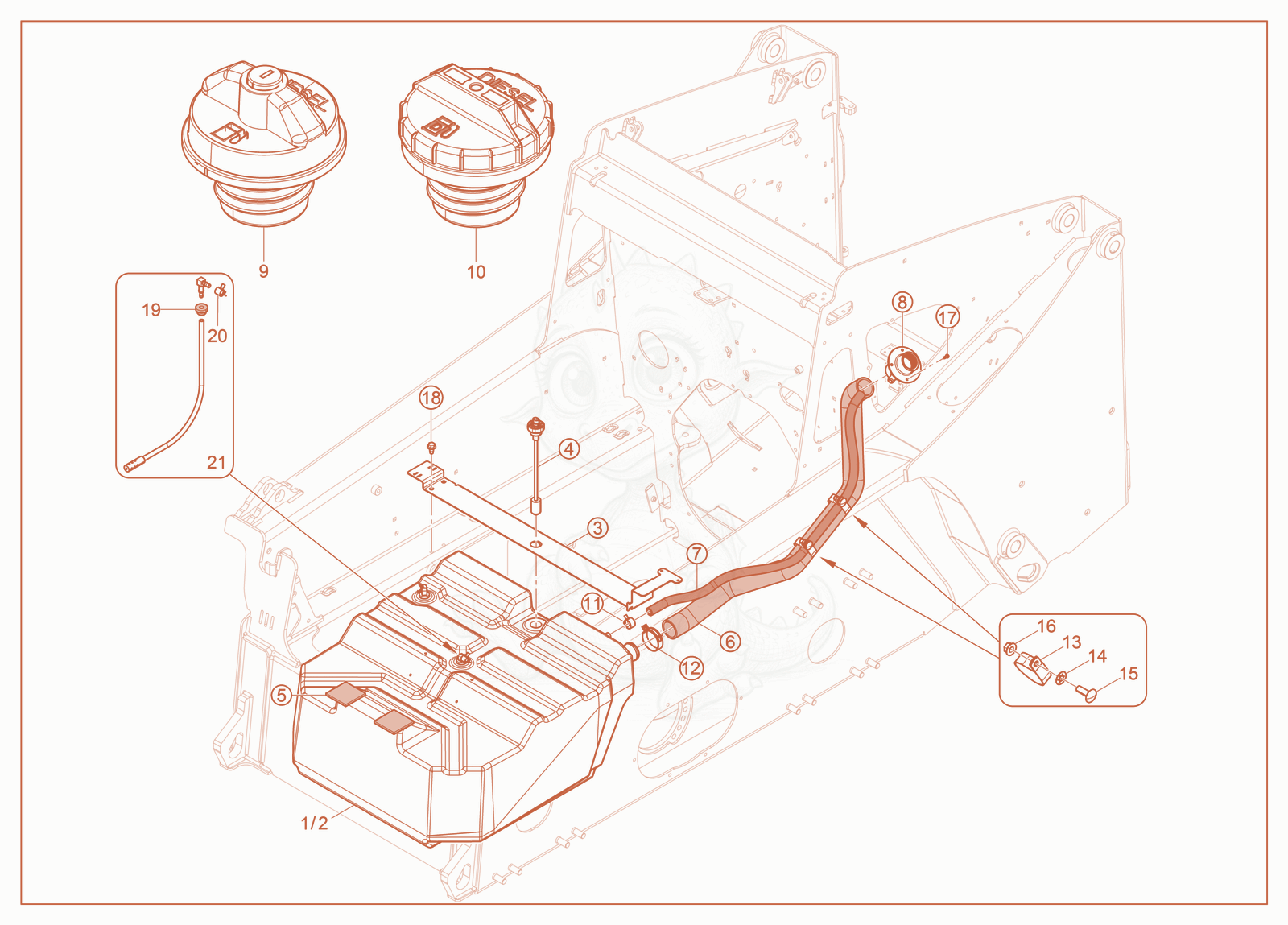

Exploded parts diagram of the Fuel Tank of a Wacker Neuson ST28(S05-5), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000453965Not stocked
    Fuel tank complete×1
  • 21000340121Not stocked
    Fuel tank×1
  • 31000402212Not stocked
    Plate×1
  • 41000340133Not stocked
    Sensor×1
  • 51000343089Not stocked
    Insulating mat×4
  • 61000340122Not stocked
    Hose×1
  • 71000340123Not stocked
    Hose×1
  • 81000340137
    $21.04
    NECK FUEL FILL - 1000340137×1
  • 91000340136
    $19.67
    Cap fuel locking - 1000340136×1
  • 101000340135
    $24.19
    CAP FUEL - 1000340135×1
  • 111000357141
    $0.96
    HOSE CLAMP CTB 23 - 1000357141×2
  • 121000343390
    $2.71
    HOSE CLAMP CTB 58 - 1000343390×2
  • 131000340301
    $3.01
    CLAMP INSULATED - 1000340301×2
  • 141000343294
    $0.06
    RETAINER BOLT M10 - 1000343294×2
  • 151000343297
    $0.85
    BOLT M10X25 CARRIAGE SHORT NECK 8.8 ZINC - 1000343297×2
  • 161000343293
    $0.23
    NUT M10 FLANGED 10 ZINC - 1000343293×2
  • 171000342707
    $0.78
    SCREW 12-11 X 1 PLASTITE 48-2 ZINC - 1000342707×4
  • 181000343280
    $0.44
    SCREW M10 X 20 THREAD ROLLING ZINC - 1000343280×4
  • 191000340129
    $1.76
    GROMMET - 1000340129×1
  • 201000343388Not stocked
    Hose clamp×2
  • 211000453864Not stocked
    Fuel pickup hose complete×1
