ST28 Compact Track Loader

ST28(S05-5) One Speed Brake System Diagram

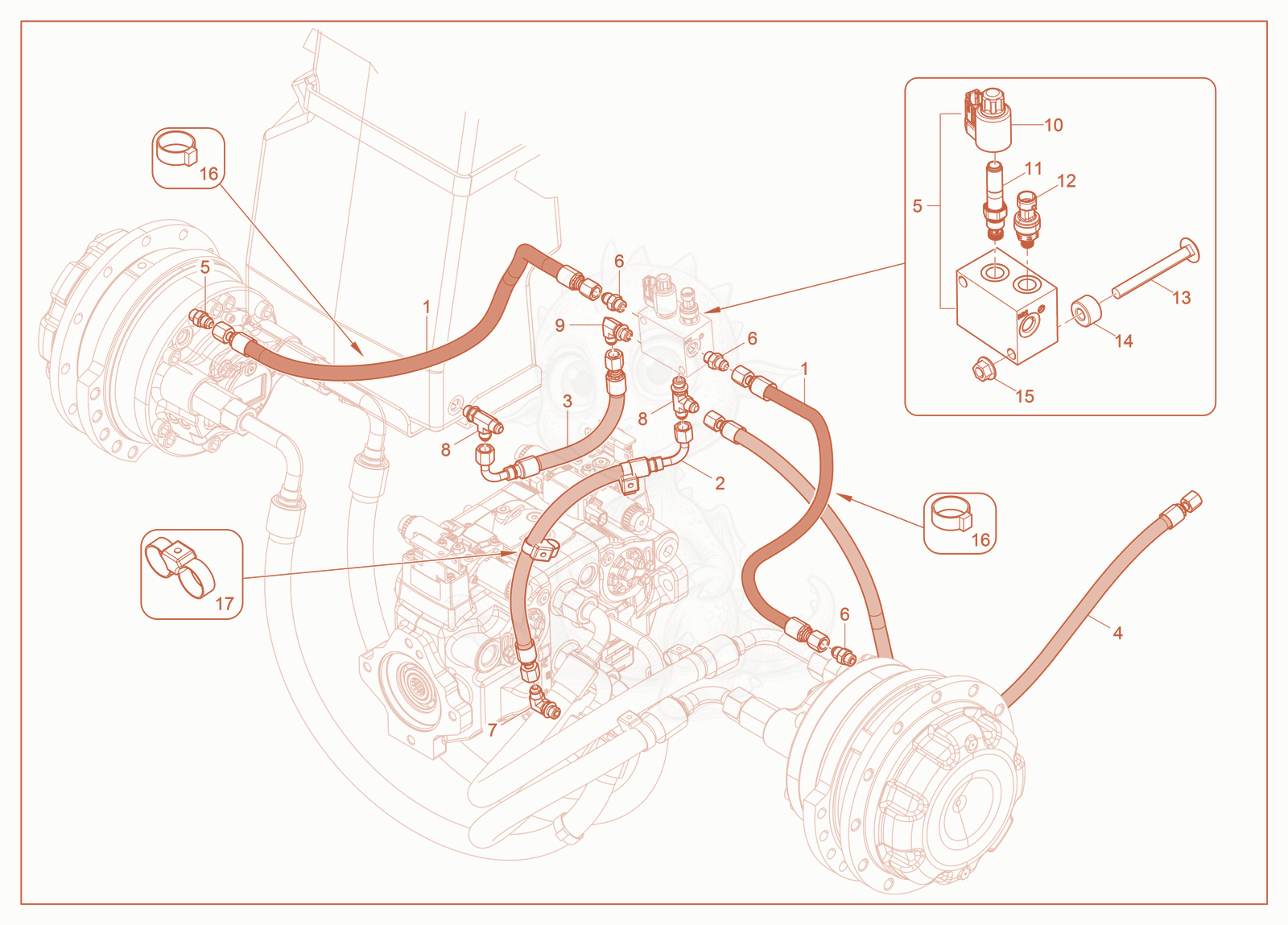

Exploded parts diagram of the One Speed Brake System of a Wacker Neuson ST28(S05-5), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000340183Not stocked
    Hose assembly×1
  • 21000343142Not stocked
    Hydraulic hose×1
  • 21000343408Not stocked
    Hydraulic hose×1
  • 31000340204Not stocked
    Hydraulic hose×1
  • 41000340210Not stocked
    Hydraulic hose×1
  • 51000340170
    $143.43
    MANIFOLD BLOCK BRAKE - 1000340170×1
  • 61000343339
    $2.74
    FITTING HYD 06MB-04MJ - 1000343339×4
  • 71000343141Not stocked
    Fitting×1
  • 71000343340Not stocked
    Fitting×1
  • 81000343369Not stocked
    Tee fitting×2
  • 91000343340Not stocked
    Fitting×1
  • 101000365402
    $29.43
    MAGNET SPOOL - 1000365402×1
  • 111000437948
    $121.41
    valve - 1000437948×1
  • 121000342842Not stocked
    Valve×1
  • 131000343337
    $2.61
    BOLT M10 X 90 CARRIAGE 8.8 ZINC - 1000343337×2
  • 141000363508Not stocked
    Spacer×2
  • 151000343293
    $0.23
    NUT M10 FLANGED 10 ZINC - 1000343293×2
  • 161000342986
    $0.58
    TIE HEAVY DUTY - 1000342986×4
  • 171000342832
    $2.64
    TIE DOUBLE - 1000342832×4
