ST28 Compact Track Loader

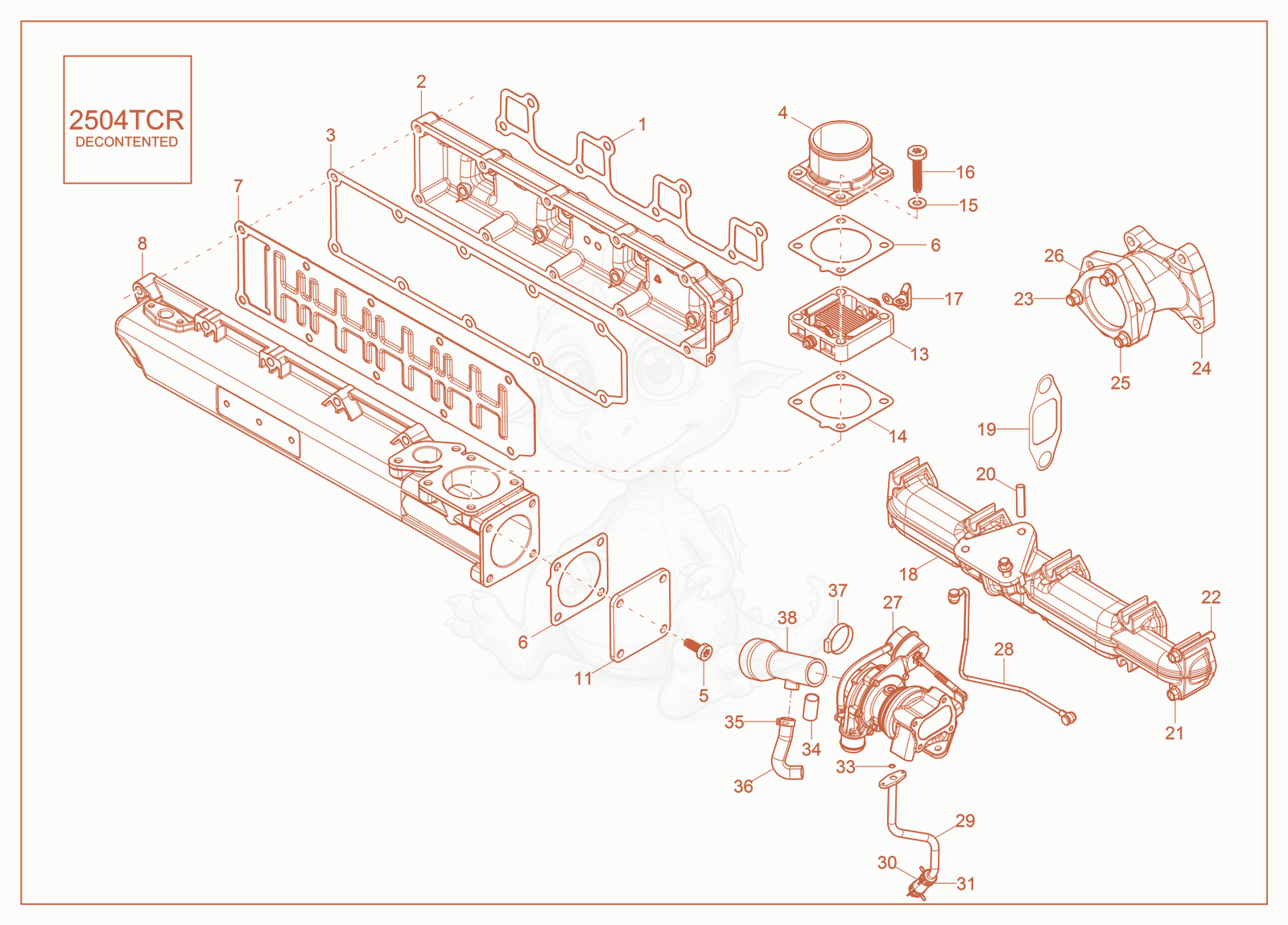

ST28(S05-5) Intake/Exhaust Diagram
- 15200016480Not stockedGasket×1
- 25200016481Not stockedManifold×1
- 35200016484Not stockedIntake manifold gasket×2
- 45200016485Not stockedFlange×1
- 55200016486Not stockedScrew×4
- 65200016493Not stockedGasket×2
- 75200016494Not stockedGasket×1
- 85200016482Not stockedIntake manifold×1
- SCREW M8 X 35 - 5000084171×8
- 115200016495Not stockedFlange×1
- 125200016496Not stockedScrew×10
- 135200016532Not stockedHeater×1
- 145200016493Not stockedGasket×1
- Washer - 5000082293×4
- 165200016496Not stockedScrew×4
- 175200016534Not stockedCable×1
- 185200016509Not stockedExhaust manifold×1
- 195200016511Not stockedGasket×4
- 205100029468Not stockedStud×3
- 215200016512Not stockedFlange nut×10
- 225100029471Not stockedStud×10
- 235100029469Not stockedStud×4
- FLANGE - 5100029470×1
- NUT-COPPER - 5000086331×7
- 265200016515Not stockedTurbo gasket×1
- 275200016499Not stockedTurbocharger×1
- 285200016501Not stockedOil pipe×1
- 295200016502Not stockedOil pipe×1
- 305200016503Not stockedOil pipe×1
- 315200016433Not stockedClamp×2
- BOLT M6 X 1 X 12 - 5000159253×2
- 335200016504Not stockedO-ring×1
- 345200016505Not stockedPipe×1
- 355200016507Not stockedClamp×3
- 365200016508Not stockedPipe×1
- CLAMP-HOSE,ENGINE - 5000087354×1
- 385200016506Not stockedRubber connector×1
