ST28 Compact Track Loader

ST28(S05-5) Bucket Cylinder Hydraulic System Diagram

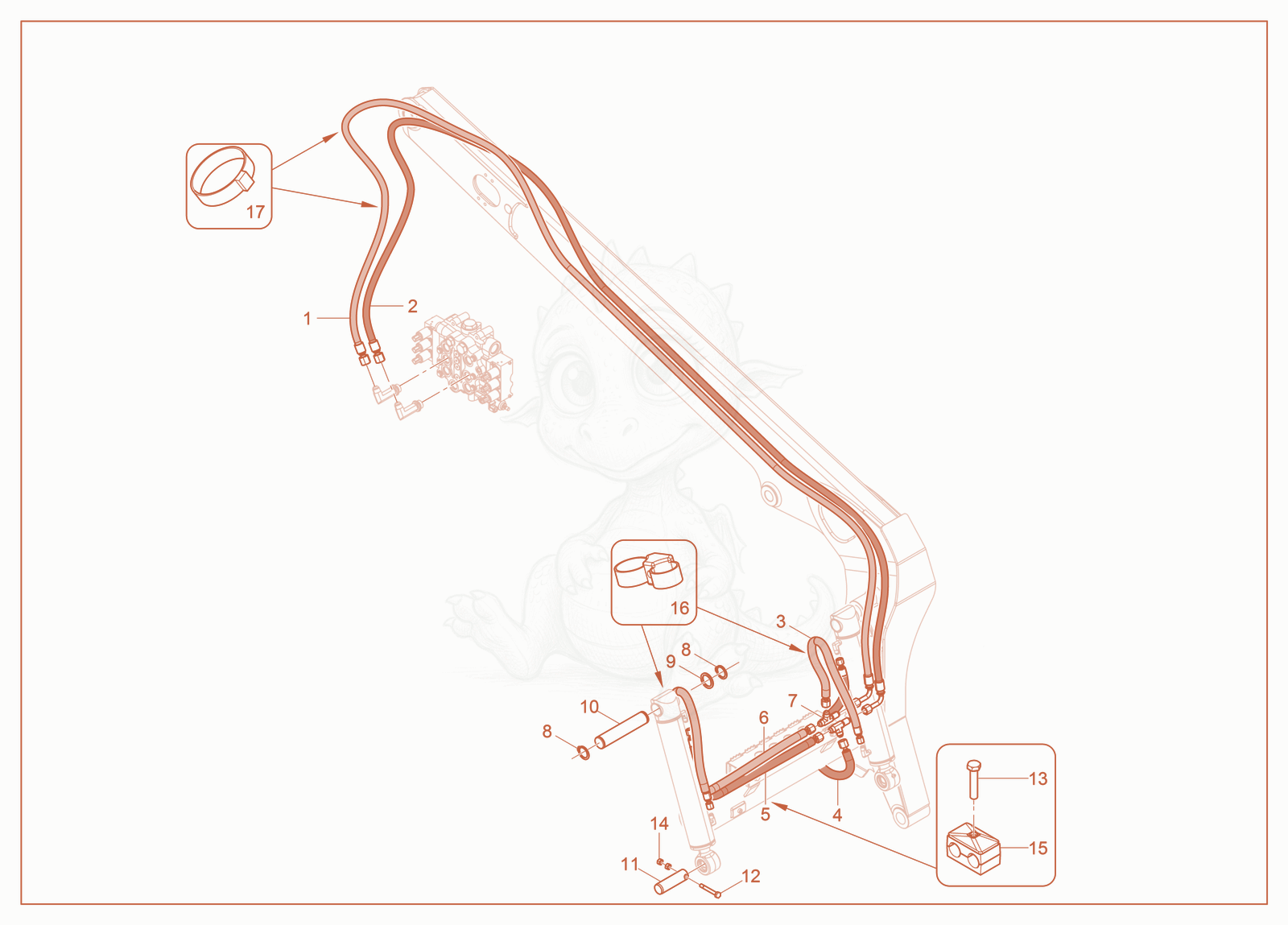

Exploded parts diagram of the Bucket Cylinder Hydraulic System of a Wacker Neuson ST28(S05-5), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000370841Not stocked
    Hp hose×1
  • 21000370841Not stocked
    Hp hose×1
  • 31000340653Not stocked
    Hydraulic hose×1
  • 41000339996Not stocked
    Hydraulic hose×1
  • 51000339997Not stocked
    Hydraulic hose×1
  • 61000340819Not stocked
    Hydraulic hose×1
  • 71000343372Not stocked
    Tee fitting×2
  • 71000343153Not stocked
    Hexagon nut×2
  • 81000343371Not stocked
    Ring×4
  • 91000378709Not stocked
    Flat washer×2
  • 101000399934Not stocked
    Pivot pin×2
  • 111000399999Not stocked
    Pivot pin×2
  • 121000343312Not stocked
    Screw×2
  • 131000085392
    $0.83
    hex screw M8x40-8.8 A2C DIN933 - 1000085392×1
  • 141000343310
    $0.06
    NUT M10 HEX 8 ZINC - 1000343310×4
  • 151000342638
    $5.65
    CLAMP HOSE DIN 2 - 1000342638×1
  • 161000342832
    $2.64
    TIE DOUBLE - 1000342832×4
  • 171000342986
    $0.58
    TIE HEAVY DUTY - 1000342986×4
