ST28 Compact Track Loader

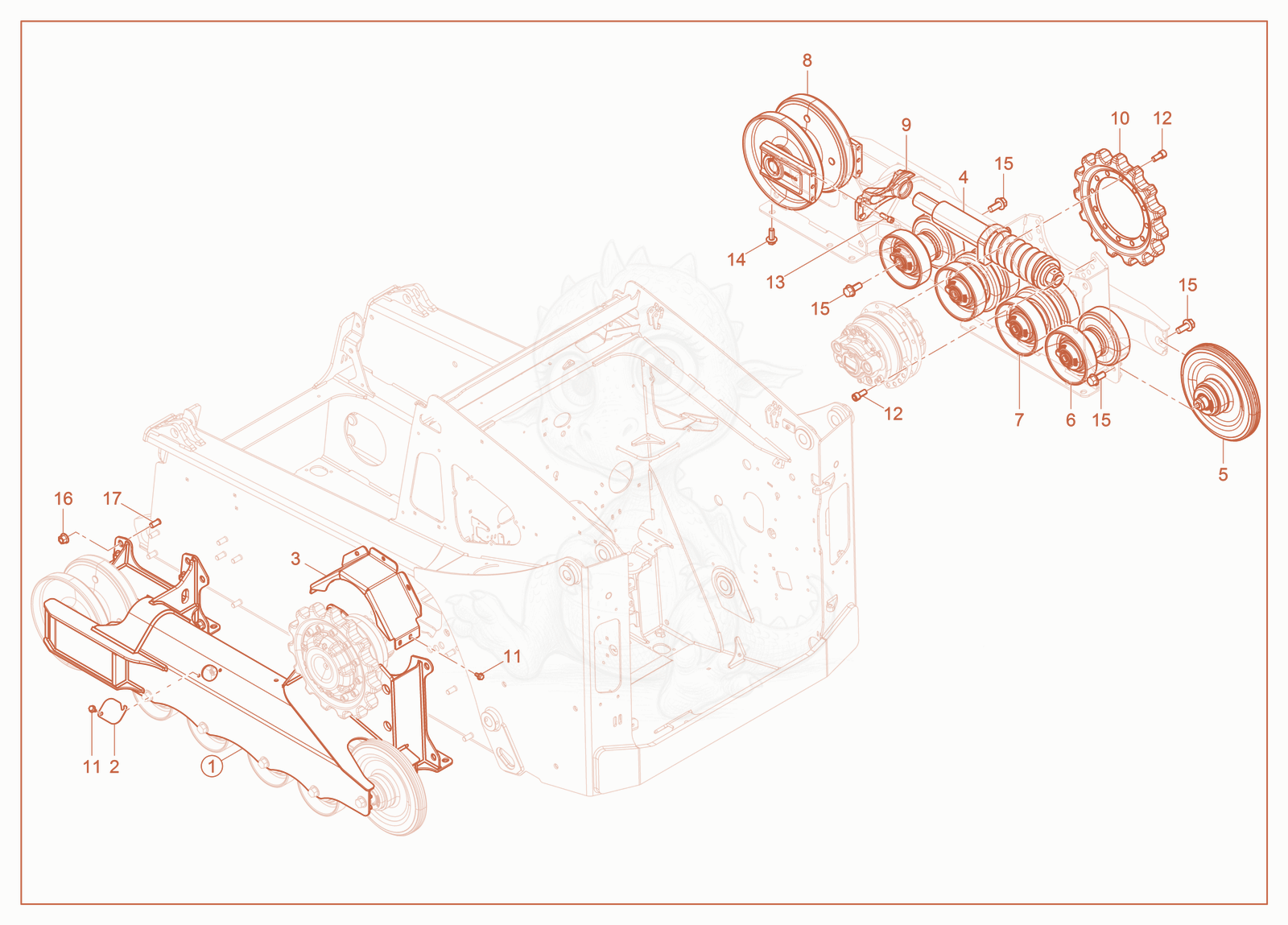

ST28(S05-5) Undercarriage Diagram
- 11000347295Not stockedCarriage (Right-hand Side)×1
- 11000347296Not stockedCarriage (Left-hand Side)×1
- 21000347309Not stockedAccess cover×2
- COVER MOTOR MFL - 1000431732×2
- 41000339847Not stockedTension cylinder×1
- non return valve - 1000187716Unknown×1
- 41000340776Not stockedTension cylinder×1
- 51000339842Not stockedRoller×2
- 61000339848Not stockedRoller×4
- 71000339841Not stockedRoller×4
- 81000339843Not stockedRoller×2
- 91000343258Not stockedGuide×2
- 101000544569Not stockedSPROCKET 15 TEETH 86 PITCH×2
- SCREW M10 X 20 THREAD ROLLING ZINC - 1000343280×16
- 121000343282Not stockedScrew×44
- 131000343279Not stockedHex screw×8
- 141000343281Not stockedFlange bolt×14
- 151000343278Not stockedFlange bolt×20
- 161000343276Not stockedFlange nut×28
- 171000340809Not stockedStud×28
