ST35 Compact Track Loader

ST35(S04-02) wire harness chassis, engine Diagram

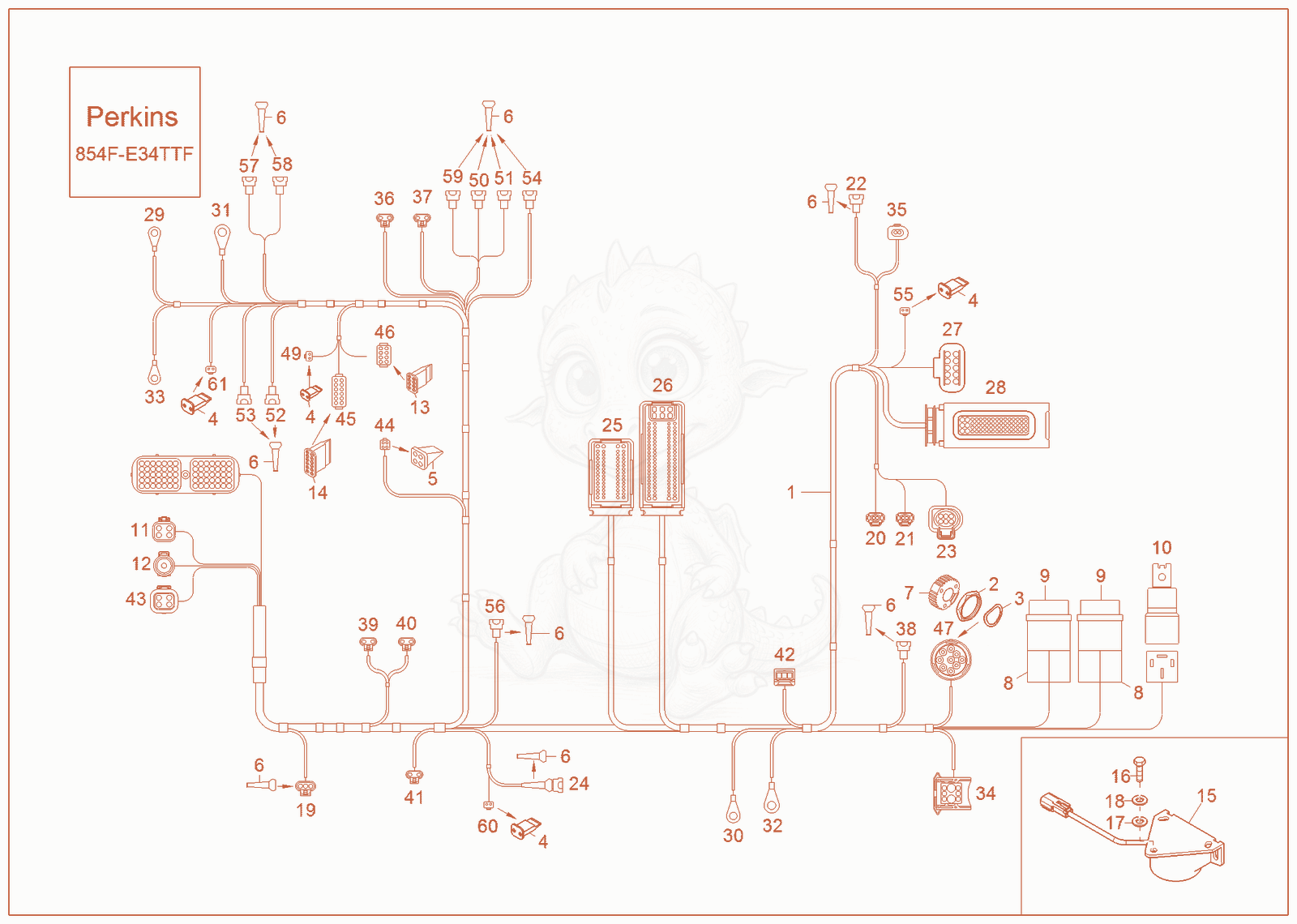

Exploded parts diagram of the wire harness chassis, engine of a Wacker Neuson ST35(S04-02), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000354269Not stocked
    Harness wiring chassis×1
  • 21000312641
    $6.62
    hexagon nut - 1000312641×1
  • 31000312642Not stocked
    Washer×1
  • 41000027442Not stocked
    Wedge×4
  • 51000104287
    $0.99
    wedge - 1000104287×1
  • 61000027466Not stocked
    protecting cap×12
  • 71000277443
    $22.68
    protecting cap - 1000277443×1
  • 81000360586
    $27.31
    fuse holder - 1000360586×2
  • 91000360587
    $24.77
    fuse cap - 1000360587×2
  • 101000342857Not stocked
    Relay×1
  • 111000360582Not stocked
    Pin housing×1
  • 121000360583
    $6.40
    Plug - 1000360583×1
  • 131000100723
    $2.77
    wedge - 1000100723×1
  • 141000085010
    $1.46
    wedge - 1000085010×1
  • 151000170892
    $57.64
    reverse warner - 1000170892×1
  • 161000082237
    $1.71
    6-Point screw M6x16-8.8 A2C-DIN933 - 1000082237×2
  • 171000015430Not stocked
    Washer×2
  • 181000015436Not stocked
    Snor safety catch×2
  • 191000051989Not stocked
    bushing housing×1
  • 201000311735Not stocked
    Bushing housing×1
  • 211000311737
    $9.99
    bushing housing - 1000311737×1
  • 221000027332
    $3.80
    housing - 1000027332×1
  • 231000311739Not stocked
    Bushing housing×1
  • 241000027332
    $3.80
    housing - 1000027332×1
  • 251000288543
    $40.69
    Plug Sleeve Housing - 1000288543×1
  • 261000288545
    $34.18
    Plug Sleeve Housing - 1000288545×1
  • 271000288541
    $7.65
    Plug Sleeve Housing - 1000288541×1
  • 281000260163
    $44.53
    plug sleeve housing - 1000260163×1
  • 291000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 301000100364
    $3.82
    cable lug - 1000100364×1
  • 311000107754
    $2.77
    cable lug - 1000107754×1
  • 321000107754
    $2.77
    cable lug - 1000107754×1
  • 331000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 341000288540
    $11.06
    Plug Sleeve Housing - 1000288540×1
  • 351000315298Not stocked
    Housing 6-pol.×1
  • 361000110449
    $2.46
    plug bushing - 1000110449×1
  • 371000110449
    $2.46
    plug bushing - 1000110449×1
  • 381000027332
    $3.80
    housing - 1000027332×1
  • 391000110449
    $2.46
    plug bushing - 1000110449×1
  • 401000110449
    $2.46
    plug bushing - 1000110449×1
  • 411000110449
    $2.46
    plug bushing - 1000110449×1
  • 421000126017
    $8.07
    Plug housing - 1000126017×1
  • 431000360584Not stocked
    Pin housing×1
  • 441000104286
    $11.39
    bushing housing - 1000104286×1
  • 451000105122
    $29.32
    bushing housing - 1000105122×1
  • 461000105113
    $14.50
    bushing housing - 1000105113×1
  • 471000298661
    $386.76
    pin housing - 1000298661×1
  • 491000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • 501000027332
    $3.80
    housing - 1000027332×1
  • 511000027332
    $3.80
    housing - 1000027332×1
  • 521000027332
    $3.80
    housing - 1000027332×1
  • 531000027332
    $3.80
    housing - 1000027332×1
  • 541000027332
    $3.80
    housing - 1000027332×1
  • 551000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • 561000027332
    $3.80
    housing - 1000027332×1
  • 571000027332
    $3.80
    housing - 1000027332×1
  • 581000027332
    $3.80
    housing - 1000027332×1
  • 591000027332
    $3.80
    housing - 1000027332×1
  • 601000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • 611000270365
    $6.40
    Plug Deutsch - 1000270365×1
