ST35 Compact Track Loader

ST35(S04-02) quick hitch Diagram

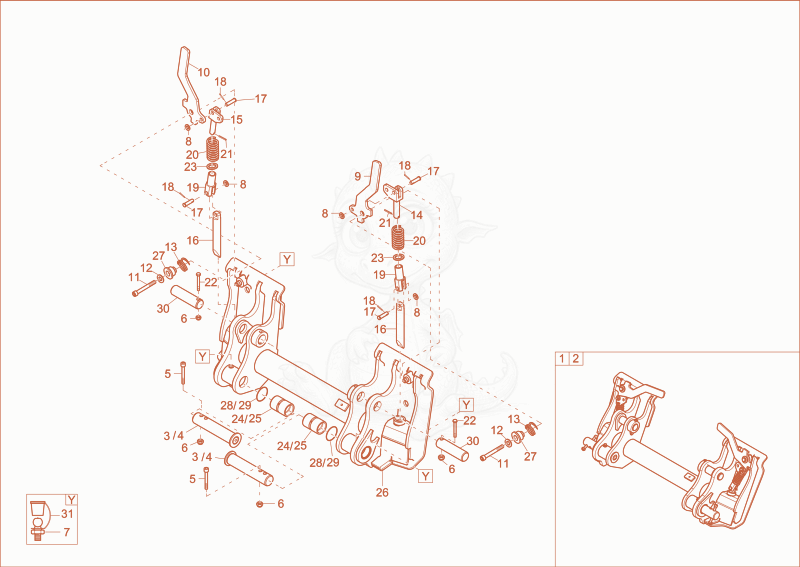

Exploded parts diagram of the quick hitch of a Wacker Neuson ST35(S04-02), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 31000320733
    $174.84
    PIN - 1000320733×2
  • 41000339723Not stocked
    Pin×2
  • 51000323299Not stocked
    screws instrum.housing×2
  • 61000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×4
  • 71000015476Not stocked
    Grease nipple×4
  • 81000015433Not stocked
    Washer×4
  • 91000303876
    $62.06
    LEVER - 1000303876×1
  • 101000332317
    $100.54
    LEVER - 1000332317×1
  • 111000082242
    $0.86
    cheese head screw - 1000082242×2
  • 121000082678
    $1.36
    NORTHLOCK DISC - 1000082678×2
  • 131000321977Not stocked
    Pressure Spring×2
  • 141000312143
    $132.18
    pin - 1000312143×1
  • 151000312141
    $68.75
    pin - 1000312141×1
  • 161000287394
    $340.45
    locking pin - 1000287394×2
  • 171000302890
    $18.61
    pin - 1000302890×4
  • 181000095365
    $0.10
    cotter pin 3,2x20 - 1000095365×4
  • 191000303905
    $46.10
    PIN - 1000303905×2
  • 201000331251
    $14.66
    SPRING - 1000331251×2
  • 211000085646
    $0.12
    cotter pin - 1000085646×2
  • 221000323299Not stocked
    screws instrum.housing×2
  • 231000143467
    $2.27
    washer - 1000143467×2
  • 241000083211
    $26.32
    STEEL BUSHING - 1000083211×2
  • 251000341582Not stocked
    steel bushing×2
  • 261000314888
    $3,728.86
    Quick Hitch Plate, P-5000176420 - 1000314888Unknown×1
  • 261000339607
    $2,514.92
    Quickhitchplatep 5000176420 1000339607Unknown×1
  • 261000332381Not stocked
    quickhitch plate×1
  • 271000322351
    $25.36
    sleeve - 1000322351×2
  • 281000107367
    $9.83
    PIN GASKET - 1000107367×2
  • 291000015707Not stocked
    Pin gasket×2
  • 301000287429
    $42.20
    Pin 1000287429×2
  • 311000015480Not stocked
    Cap grease nipple×4
