ST35 Compact Track Loader

ST35(S04-02) hydraulic tank Diagram

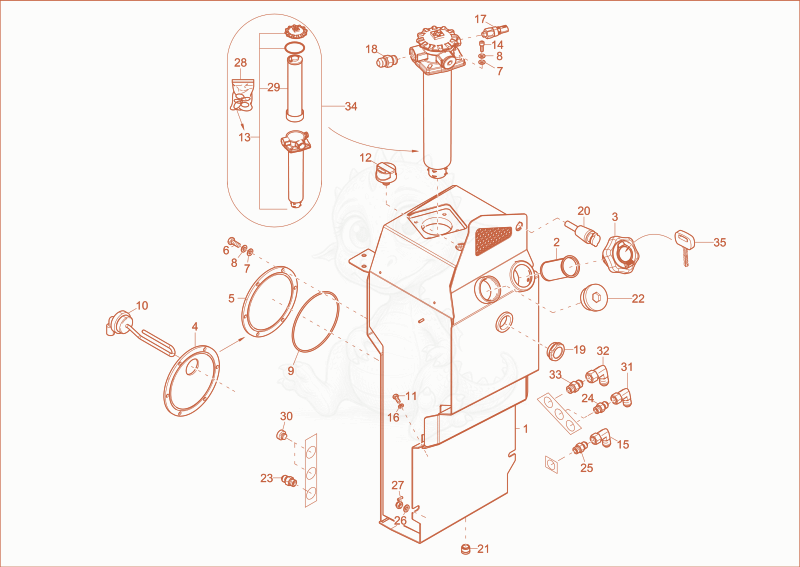

Exploded parts diagram of the hydraulic tank of a Wacker Neuson ST35(S04-02), with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000281830
$1,600.70
hydraulic tank - 1000281830×1
21000267866
$20.53
FILING STRAINER - 1000267866×1
31000310560Not stocked
Filler cap×1
41000284368
$173.94
Cover 1000284368×1
51000284372
$167.73
Cover 1000284372×1
61000019136Not stocked
Hex screw×6
71000092292
$5.86
washer A8,4-140HV A2C DIN125 - 1000092292×10
81000015437Not stocked
Lock washer×10
91000165782
$0.50
O-RING - 1000165782×1
101000038244Not stocked
Oil pre heater×1
111000015345
$1.55
Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
121000261957
$33.36
venting filter (0,2bar) - 1000261957×1
131000310184Not stocked
Hydraulic oilfilter×1
141000013014Not stocked
Cheese head screw×4
151000310253
$6.97
6C6MXS - 1000310253×1
161000015434Not stocked
Washer×2
171000297272
$89.98
PRESSURE SWITCH - 1000297272×1
181000307994
$13.86
16F5OMXS - 1000307994×1
191000002989Not stocked
View glass×1
201000038423Not stocked
Wiring harness cpl.×1
211000313338
$0.79
6HP5ON-S - 1000313338×1
221000116833
$107.72
VSTI2ORA3C - 1000116833×1
231000307999
$8.09
10-12F5OMXS - 1000307999×1
241000307996
$5.04
8-10F5OMXS - 1000307996×2
251000307998
$5.08
6F5OMXS - 1000307998×1
261000082635
$0.78
WASHER - 1000082635×2
271000082585
$0.93
HEXAGON NUT - 1000082585×2
281000068817Not stocked
Seal kit back flow filter×1
291000289912
$68.90
Reflux Filter Insert - 1000289912×1
301000313340
$3.05
10HP5ON-S - 1000313340×2
311000310259
$10.25
8C6MXS - 1000310259×2
321000307964
$13.44
12C6MXS - 1000307964×1
331000308002
$8.09
12F5OMXS - 1000308002×1
341000310184Not stocked
Hydraulic oilfilter×1
351000004590Not stocked
Key×1
