ST35 Compact Track Loader

ST35(S04-02) CABIN (OPTION) Diagram

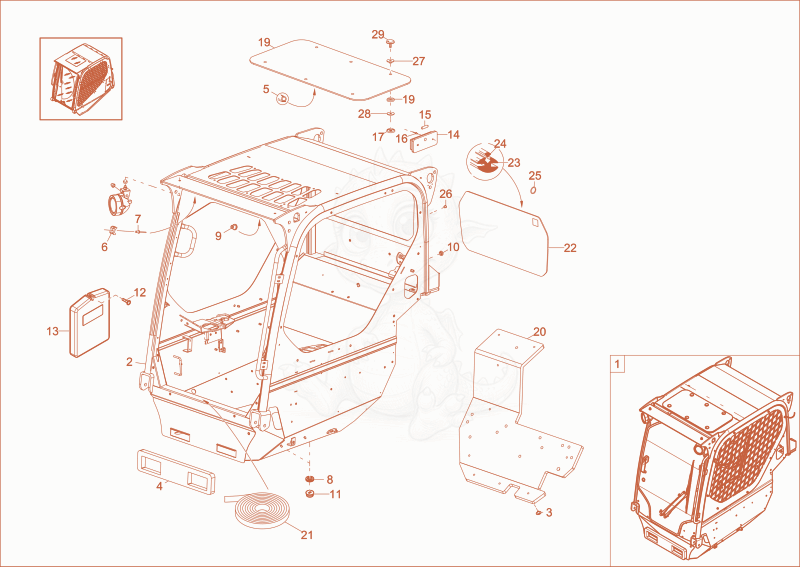

Exploded parts diagram of the CABIN (OPTION) of a Wacker Neuson ST35(S04-02), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000347215Not stocked
    Cabin×1
  • 21000347868
    $2,149.52
    CABIN FRAME - 1000347868×1
  • 31000317520
    $4.18
    Clip - 1000317520×8
  • 41000317541Not stocked
    Insulating mat×1
  • 51000216347
    $25.21
    sealing profile - 1000216347×3
  • 61000248704
    $5.34
    sockets - 1000248704×11
  • 71000191008
    $1.22
    blind rivet - 1000191008×11
  • 81000274374
    $17.59
    rubber sleeve - 1000274374×1
  • 91000124843
    $2.59
    cable sleeve - 1000124843×3
  • 101000075523
    $2.92
    blind plug - 1000075523×1
  • 111000099287
    $1.46
    plug - 1000099287×1
  • 121000326518Not stocked
    Flat head screw×4
  • 131000081206
    $40.96
    documents box - 1000081206×1
  • 141000003334Not stocked
    Dome light×1
  • 151000085712
    $6.16
    bulb - 1000085712×1
  • 161000324190Not stocked
    blind rivet×2
  • 171000066253
    $3.42
    washer - 1000066253×6
  • 181000004291
    $3.27
    washer - 1000004291×6
  • 191000317549Not stocked
    Roof glass×1
  • 201000317519
    $134.56
    Insulating - 1000317519×1
  • 211000158125
    $23.65
    antislide strip - 1000158125×1
  • 221000291323
    $228.60
    Rearwindow 1000291323×1
  • 231000316318Not stocked
    Rubber profile×3
  • 241000208360
    $24.15
    sealing profile - 1000208360×1
  • 251000317543
    $7.28
    ring - 1000317543×1
  • 261000172091
    $0.78
    PLUG - 1000172091×8
  • 271000004290Not stocked
    Rubber disc×6
  • 281000004289Not stocked
    Rubber disc×6
  • 291000317548
    $6.74
    WASHER - 1000317548×6
