ST35 Compact Track Loader

ST35(S04-02) boom cylinder Diagram

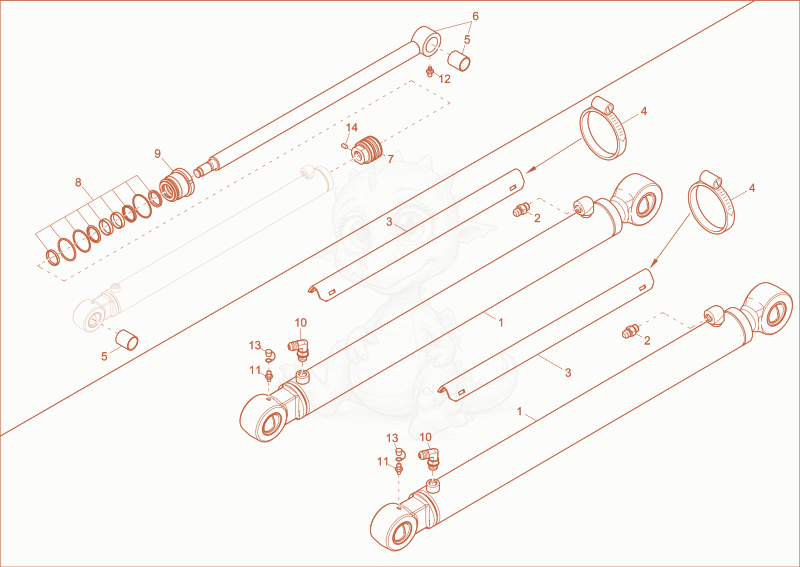

Exploded parts diagram of the boom cylinder of a Wacker Neuson ST35(S04-02), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000313085Not stocked
    Boom cylinder×2
  • 21000307998
    $5.08
    6F5OMXS - 1000307998×2
  • 31000142305
    $37.73
    Clamp Plate, Painted P-5000176420 - 1000142305×2
  • 41000032150Not stocked
    Hose clamp×4
  • 51000320542Not stocked
    Steel bushing×4
  • 61000320570Not stocked
    Piston rod×2
  • 71000320568
    $132.08
    PISTON - 1000320568×2
  • 81000320550Not stocked
    Seal kit×2
  • 91000320569
    $344.88
    Guide Bushing - 1000320569×2
  • 101000307982
    $11.48
    6C5OMXS - 1000307982×2
  • 111000015476Not stocked
    Grease nipple×2
  • 121000320541Not stocked
    Grease nipple×2
  • 131000015480Not stocked
    Cap grease nipple×2
  • 141000177287
    $29.85
    LOCK SCREW - 1000177287×2
