ST45

ST45 Wiring Harness 14 Pin Kit Diagram

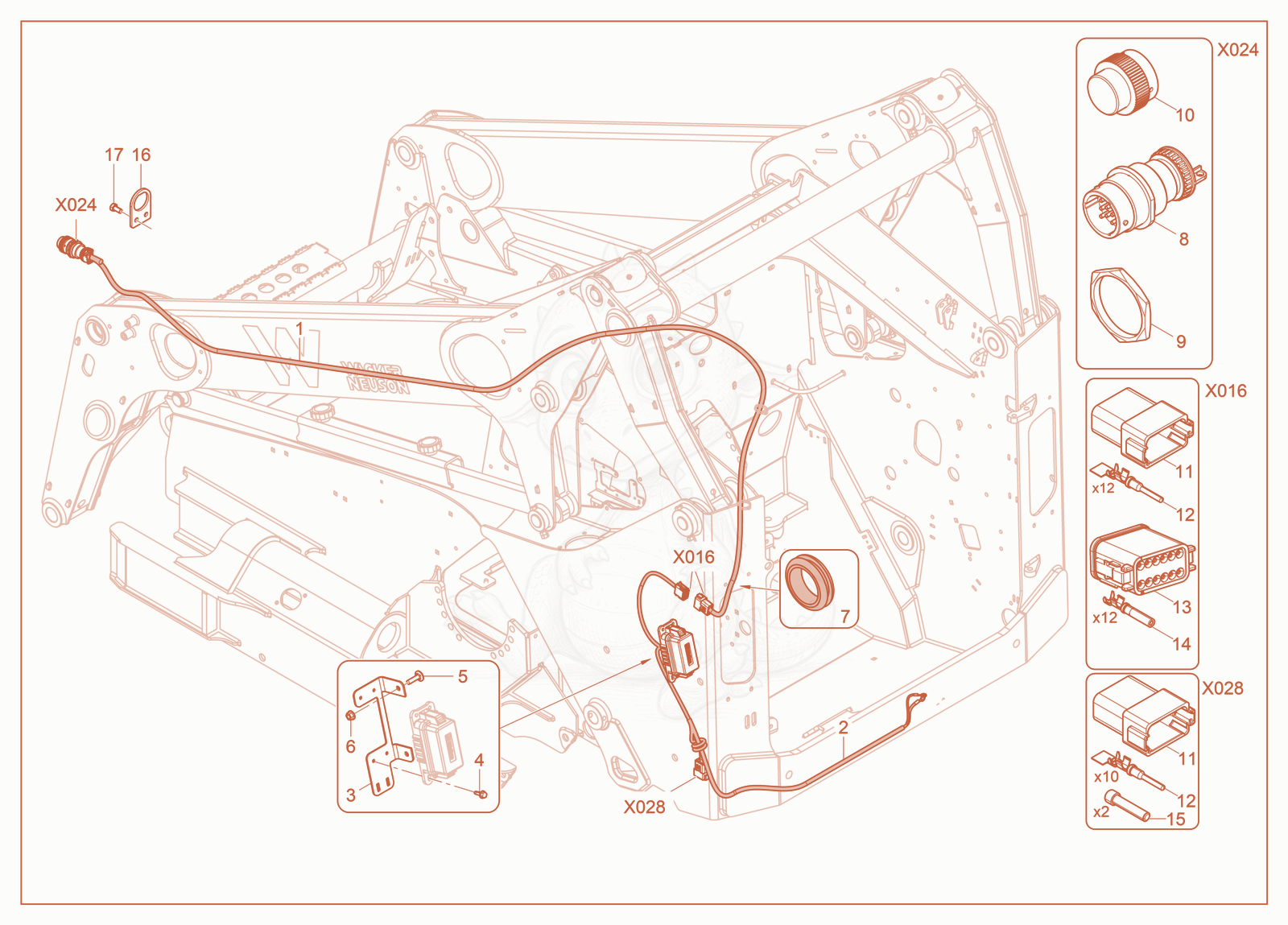

Exploded parts diagram of the Wiring Harness 14 Pin Kit of a Wacker Neuson ST45, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000362989Not stocked
    Wiring harness×1
  • 21000377024Not stocked
    Wiring harness×1
  • 31000362468Not stocked
    Bracket×1
  • 41000342814Not stocked
    Screw×4
  • 51000343405Not stocked
    Carriage bolt×2
  • 61000343350
    $0.18
    NUT M8 FLANGED LOCKNUT 8 ZINC - 1000343350×2
  • 71000365648
    $2.18
    GROMMET RUBBER 45MM - 1000365648×1
  • 81000275852
    $183.05
    Pin housing - 1000275852×1
  • 91000275853
    $6.15
    Spring washer - 1000275853×1
  • 91000170243
    $11.57
    HEXAGON NUT - 1000170243×1
  • 101000051980
    $38.40
    Cover - 1000051980×1
  • 111000342961Not stocked
    Connector×1
  • 121000085028Not stocked
    Pin contact×1
  • 131000342794Not stocked
    Connector×1
  • 141000438886Not stocked
    Pin×1
  • 155000111873
    $0.12
    PLUG-CONNECTOR - 5000111873×1
