ST45

ST45 Bypass Valve Diagram

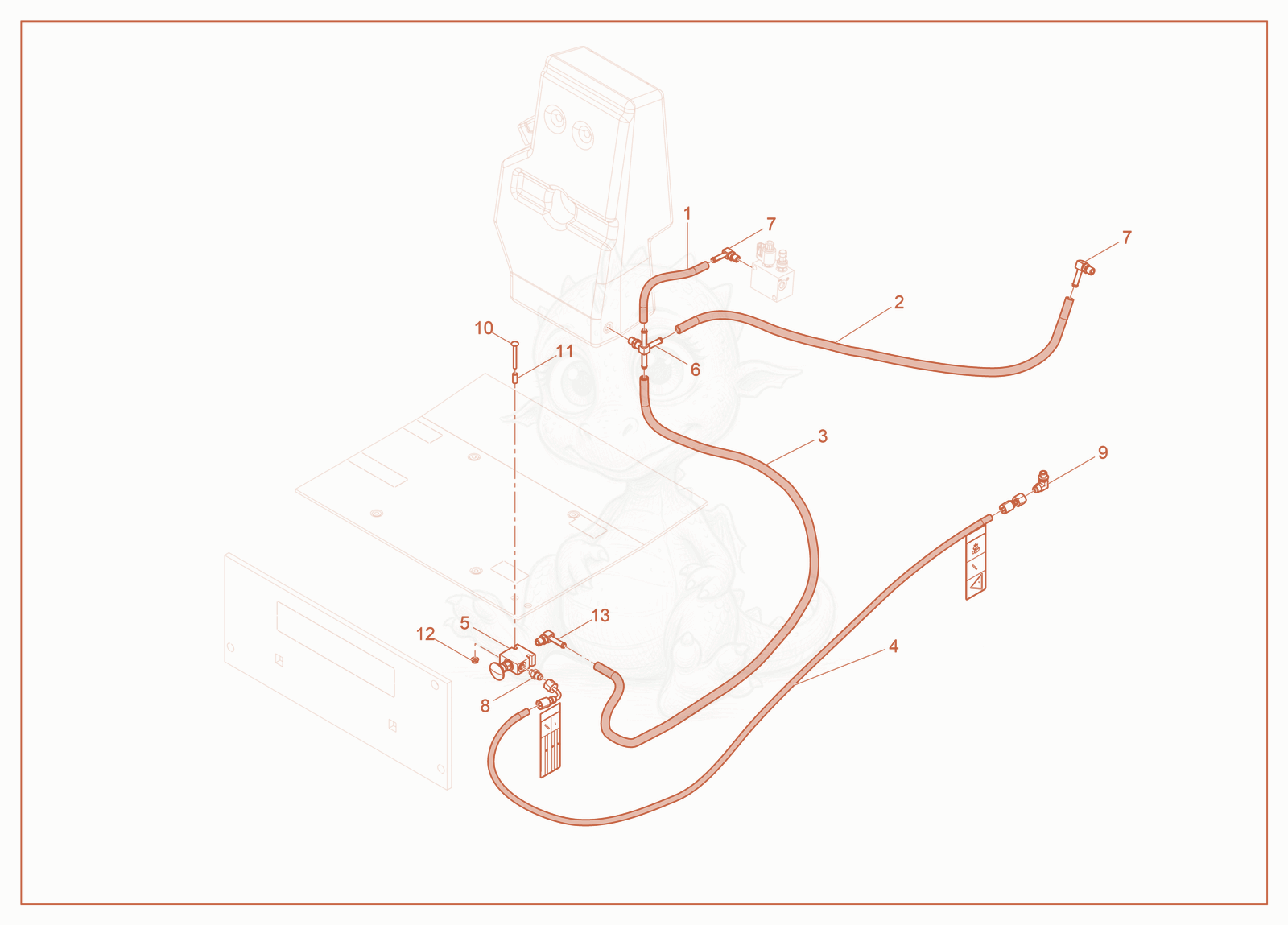

Exploded parts diagram of the Bypass Valve of a Wacker Neuson ST45, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000451453
    $1.62
    HOSE - 1000451453×1
  • 21000543096Not stocked
    HOSE×1
  • 31000543095Not stocked
    HOSE×1
  • 41000543098Not stocked
    HOSE ASSEMBLY×1
  • 51000340161Not stocked
    Bypass valve×1
  • 61000343323
    $14.37
    FITTING HYD 820-06-06-06-06 - 1000343323×1
  • 71000343341Not stocked
    Fitting×3
  • 81000365717Not stocked
    Straight fitting×1
  • 91000343340Not stocked
    Fitting×1
  • 101000379974Not stocked
    Bolt×2
  • 111000448242Not stocked
    Spacer×2
  • 121000343345
    $0.14
    NUT M6 FLANGED LOCK 10 ZINC - 1000343345×2
  • 131000343368
    $11.41
    FITTING HYD 4601-06-04-NWO - 1000343368×1
