ST45

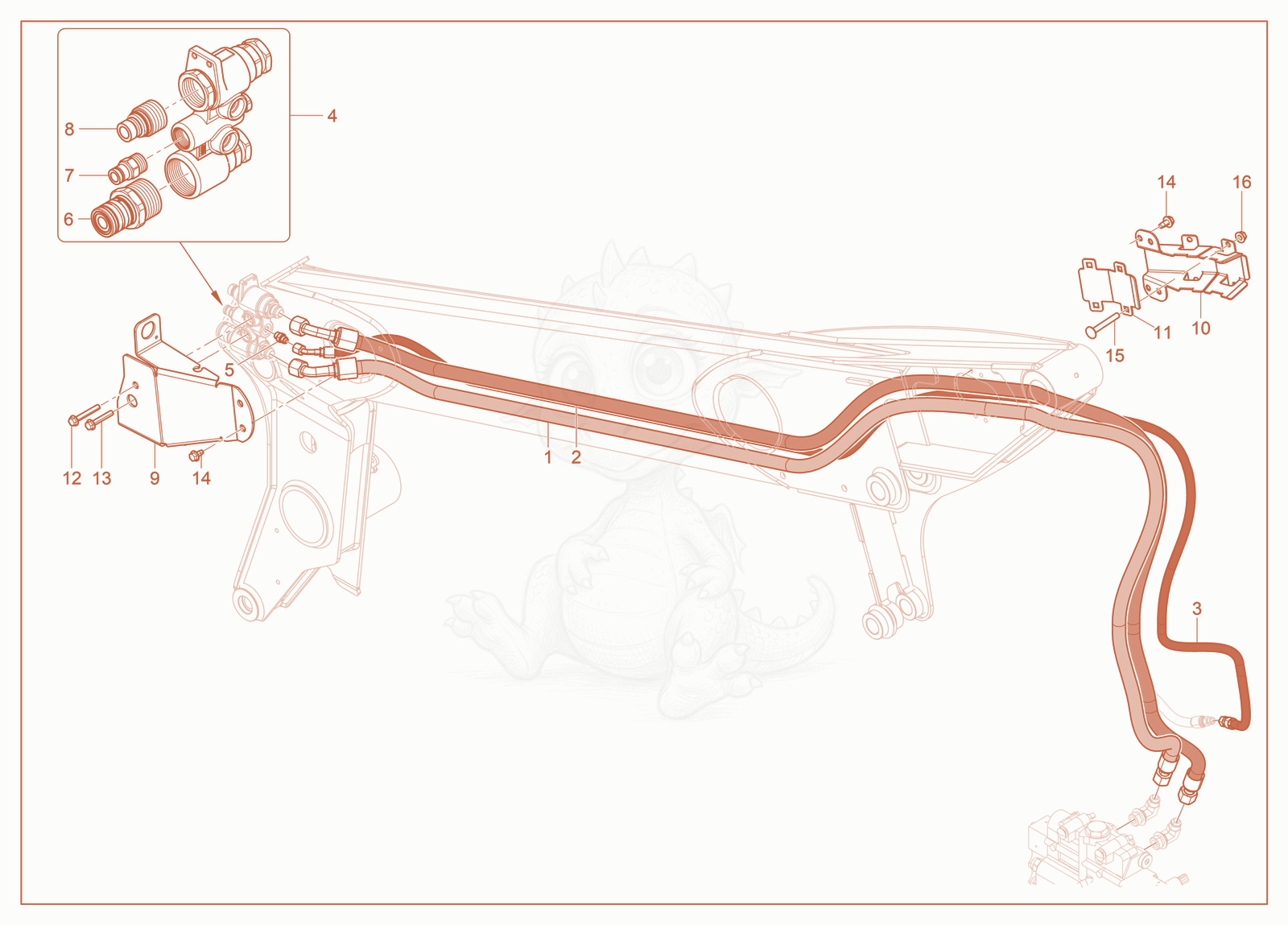

ST45 Auxiliary Hydraulics Operation High Flow Diagram

Exploded parts diagram of the Auxiliary Hydraulics Operation High Flow of a Wacker Neuson ST45, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000444574Not stocked
    Hose assembly×1
  • 21000444574Not stocked
    Hose assembly×1
  • 31000366260Not stocked
    Hose assmebly×1
  • 41000343338
    $2.95
    FITTING HYD 06MB-06MJ - 1000343338×1
  • 51000406906Not stocked
    Hydraulic block×1
  • 61000370075
    $177.31
    SEAL KIT - 1000370075×1
  • 61000282548
    $89.13
    quick lock coupling - 1000282548×1
  • 71000423215Not stocked
    Coupling socket×1
  • 81000370074
    $153.35
    SEAL KIT - 1000370074×1
  • 81000282547
    $277.10
    coupling socket - 1000282547×1
  • 91000370074
    $153.35
    SEAL KIT - 1000370074×1
  • 91000282549
    $215.64
    quick lock coupling - 1000282549×1
  • 101000423216Not stocked
    Male coupling×1
  • 111000549202Not stocked
    GUARD COUPLER 5-LINE×1
  • 121000414185Not stocked
    Mount×1
  • 131000455605Not stocked
    Hose clamp×1
  • 141000455606Not stocked
    Clamp×1
  • 151000343289Not stocked
    Flanged bolt×3
  • 161000343280
    $0.44
    SCREW M10 X 20 THREAD ROLLING ZINC - 1000343280×9
  • 171000343292Not stocked
    Carriage bolt×4
  • 181000343293
    $0.23
    NUT M10 FLANGED 10 ZINC - 1000343293×4
  • 191000416440Not stocked
    Kit—high flow fitting×1
