ST45

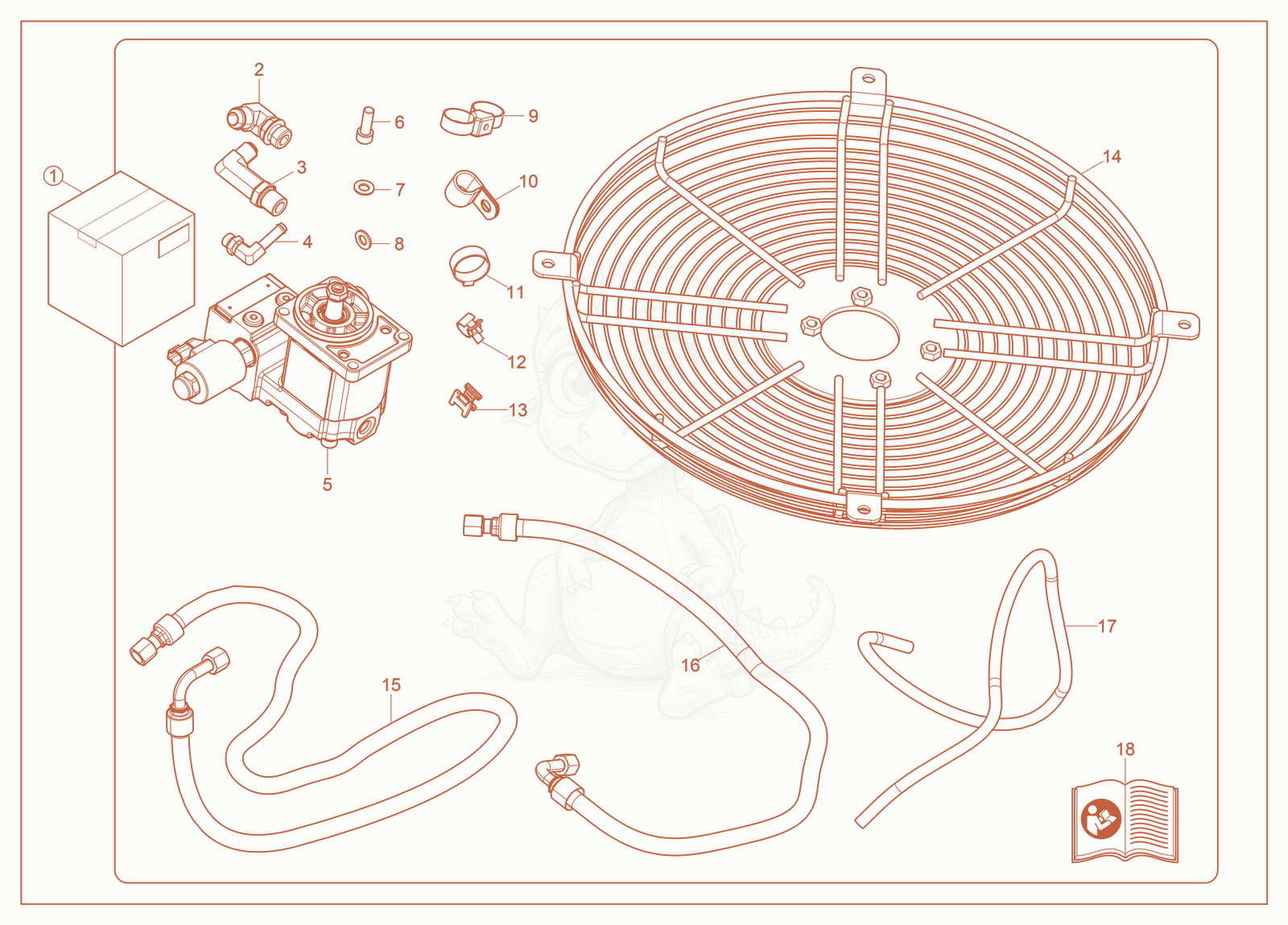

ST45 Kit—Reversible Cooling Fan Diagram

Exploded parts diagram of the Kit—Reversible Cooling Fan of a Wacker Neuson ST45, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000549501Not stocked
    DIA KIT REVERSIBLE COOLING FAN LFL×1
  • 21000388531Not stocked
    Fitting×1
  • 31000343332Not stocked
    Fitting×1
  • 41000343381
    $6.71
    FITTING HYD 06MB-06HB90 - 1000343381×1
  • 51000515120
    $879.24
    MOTOR FAN REVERSIBLE - 1000515120×1
  • 65000012382
    $1.28
    SCREW M10 X 30 10.9,SOC - 5000012382×4
  • 75000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×4
  • 81000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×1
  • 91000342832
    $2.64
    TIE DOUBLE - 1000342832×1
  • 101000369360
    $1.56
    P-CLIP 7/8 VINYL COAT - 1000369360×1
  • 111000342986
    $0.58
    TIE HEAVY DUTY - 1000342986×7
  • 121000357140
    $1.19
    HOSE CLAMP CTB 16 - 1000357140×2
  • 131000380284Not stocked
    Mount×1
  • 141000388551Not stocked
    Protecting screen×1
  • 151000450492Not stocked
    Hose assembly×1
  • 161000388508Not stocked
    HOSE ASSEMBLY×1
  • 171000388513
    $28.67
    HOSE - 1000388513×1
  • 181000543357Not stocked
    INSTRUCTIONS KIT LFL REVERSIBLE FAN×1
