ST45

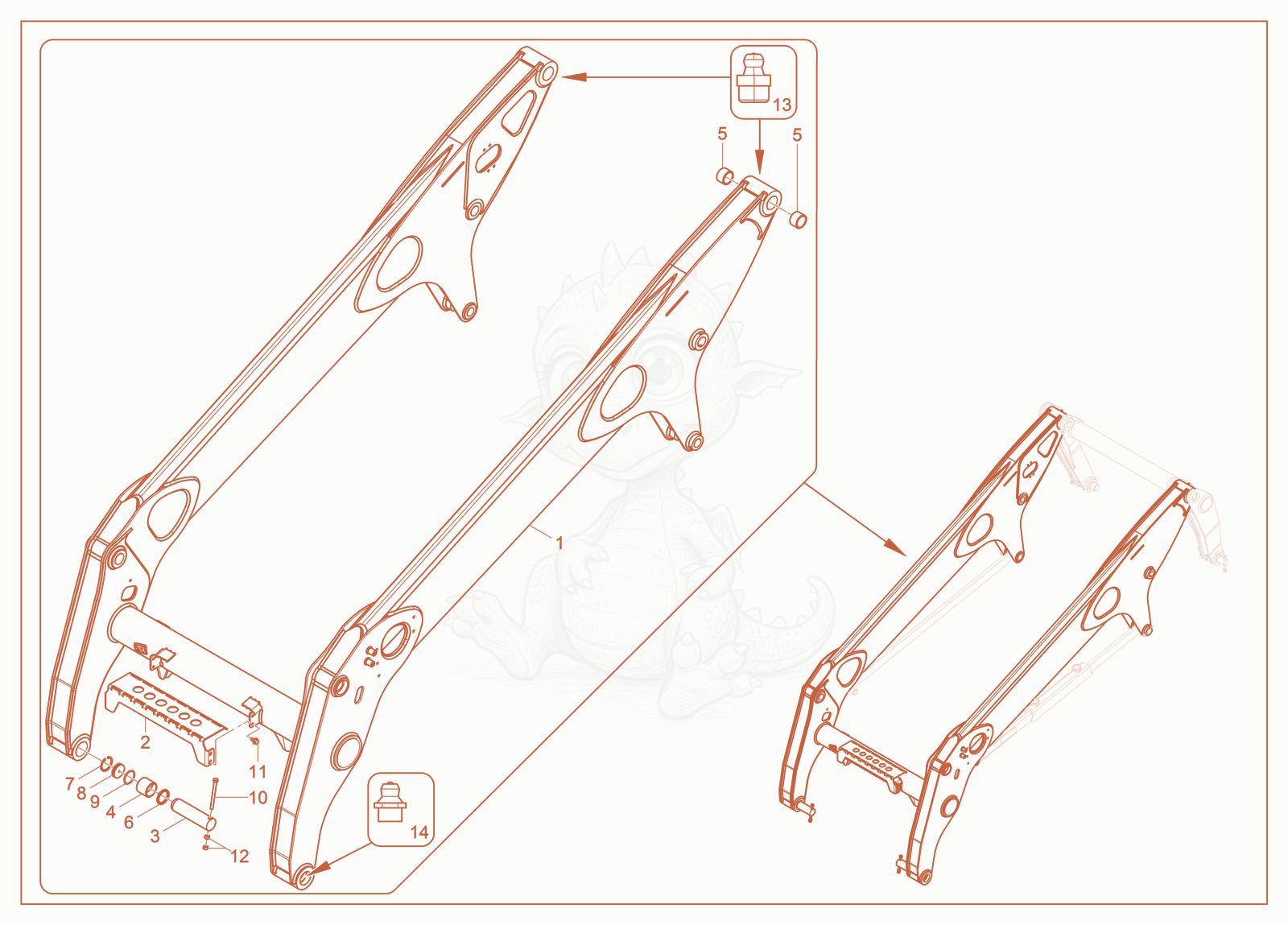

ST45 LIFT ARM Diagram

Exploded parts diagram of the LIFT ARM of a Wacker Neuson ST45, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000536637Not stocked
    WELDMENT LIFT ARM S09×1
  • 21000522317
    $70.92
    STEP - 1000522317×1
  • 31000543182Not stocked
    PIN PIVOT×2
  • 41000545088Not stocked
    BUSHING WEAR 50 X 60 X 50L×2
  • 51000543186Not stocked
    BUSHING WEAR 45X55X35×4
  • 61000551052Not stocked
    SEAL RADIAL LIP 50MM×2
  • 71000367246Not stocked
    Retaining clip×2
  • 81000366584Not stocked
    Grease nipple×2
  • 91000367247Not stocked
    O-ring×2
  • 101000426406
    $1.27
    SCREW-M10x120-HEX.HD-10.9-ZNC - 1000426406×2
  • 111000343280
    $0.44
    SCREW M10 X 20 THREAD ROLLING ZINC - 1000343280×4
  • 121000343310
    $0.06
    NUT M10 HEX 8 ZINC - 1000343310×4
  • 131000365384Not stocked
    Grease nipple×2
  • 141000343269
    $0.80
    ZERK GREASE - 1000343269×2
