TH625

TH625(T06-01) drive Diagram

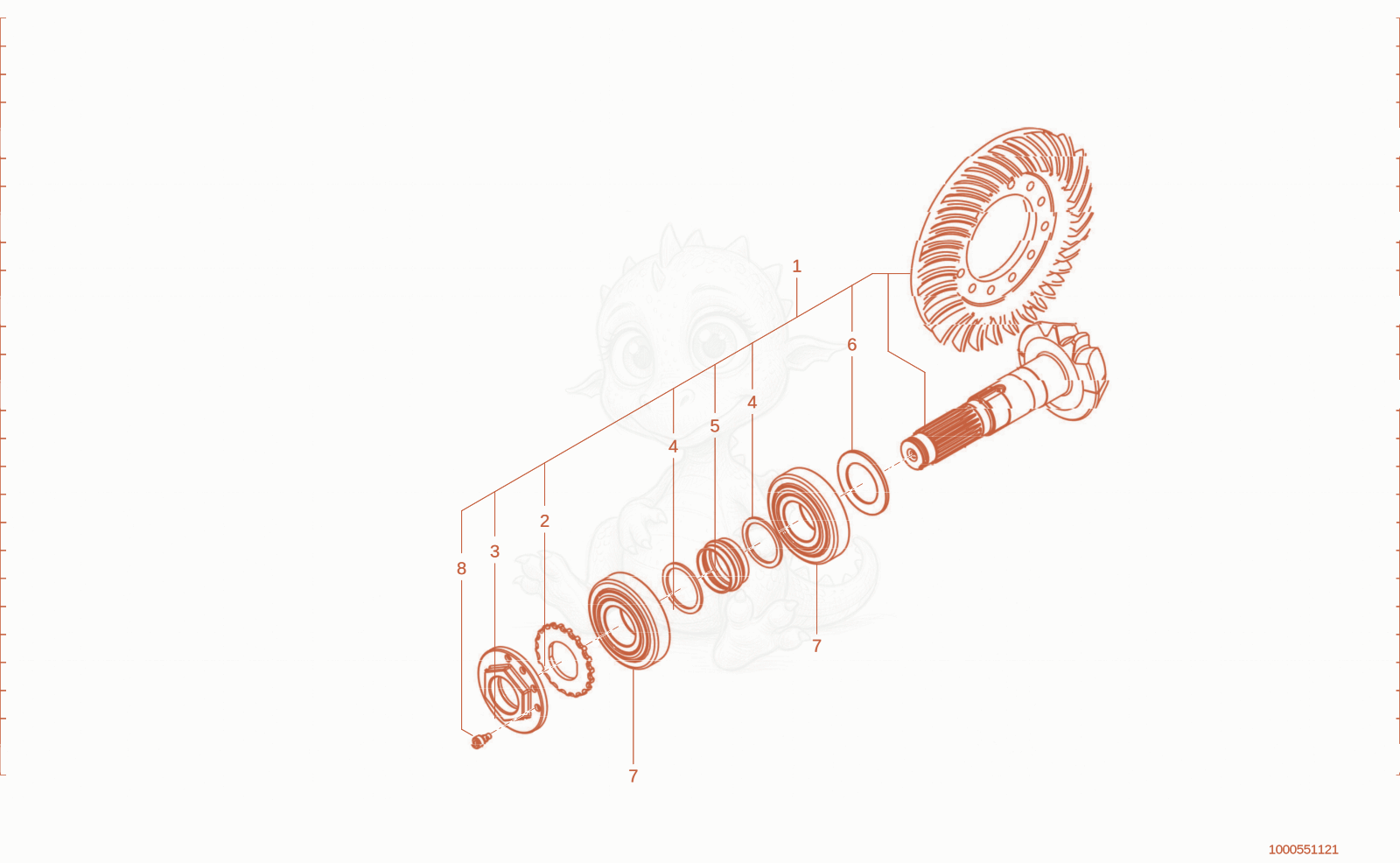

Exploded parts diagram of the drive of a Wacker Neuson TH625(T06-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000550607Not stocked
    pinion set×1
  • 21000462423Not stocked
    limit stop×1
  • 31000462428Not stocked
    ring nut×1
  • 41000098857
    $1.69
    Washer - 1000098857×2
  • 51000098636
    $3.83
    BUSHING - 1000098636×1
  • 61000462437Not stocked
    regulation disc set×1
  • 71000098257
    $74.80
    Bearing - 1000098257×2
  • 81000462444Not stocked
    screw×1
