TH625

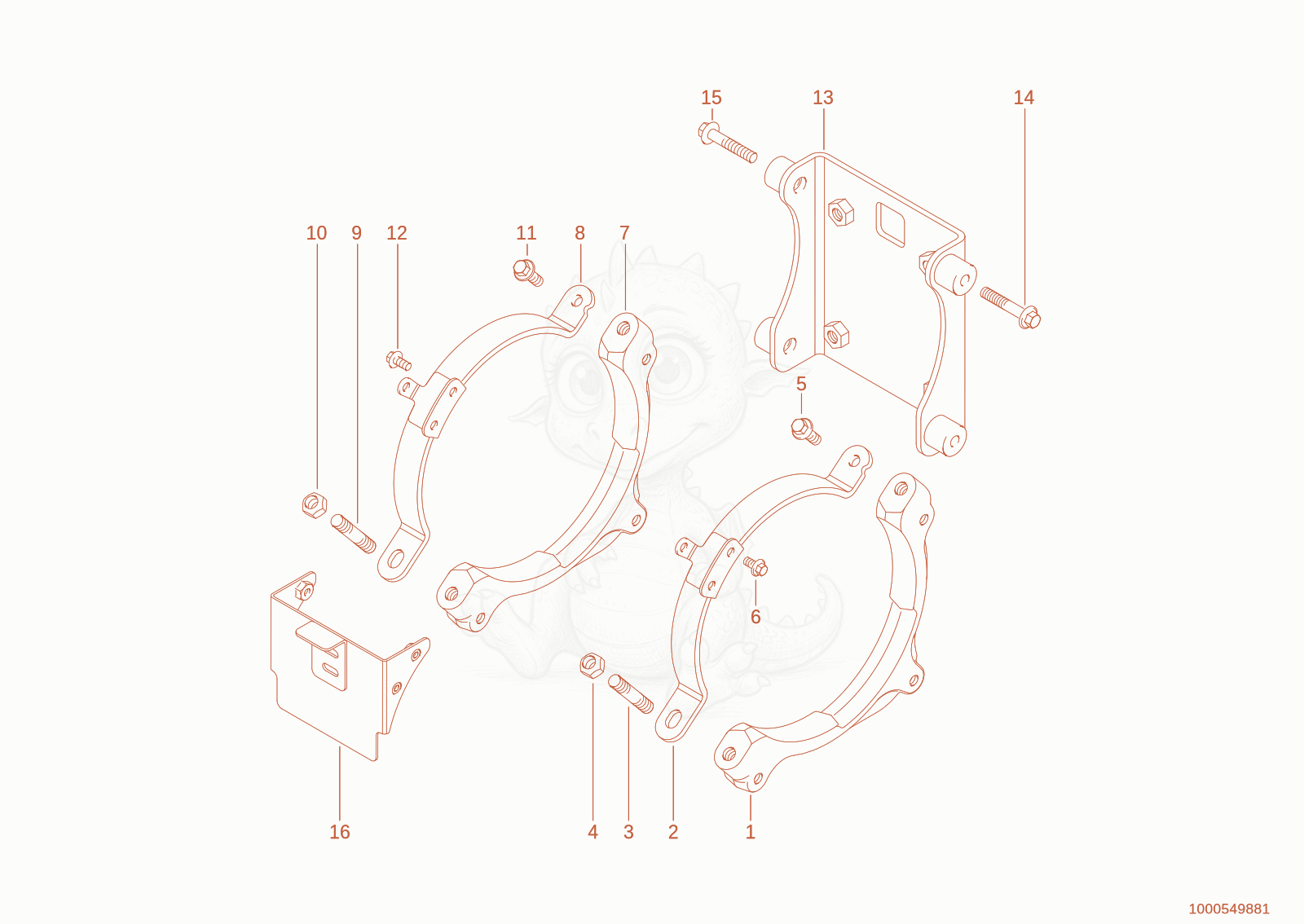

TH625(T06-01) console DPF Diagram

Exploded parts diagram of the console DPF of a Wacker Neuson TH625(T06-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000549719Not stocked
    bracket filter×1
  • 21000452962Not stocked
    clamp×1
  • 31000549720Not stocked
    stud bolt×1
  • 41000444413
    $18.19
    nut - 1000444413×1
  • 51000336804
    $1.96
    SCREW - 1000336804×1
  • 61000199802
    $1.53
    SCREW - 1000199802×2
  • 71000549719Not stocked
    bracket filter×1
  • 81000452962Not stocked
    clamp×1
  • 91000549720Not stocked
    stud bolt×1
  • 101000444413
    $18.19
    nut - 1000444413×1
  • 111000336804
    $1.96
    SCREW - 1000336804×1
  • 121000199802
    $1.53
    SCREW - 1000199802×2
  • 131000452963Not stocked
    bracket×1
  • 141000058893
    $1.59
    Screw - 1000058893×2
  • 151000058893
    $1.59
    Screw - 1000058893×2
  • 161000549721Not stocked
    bracket×1
