TH625

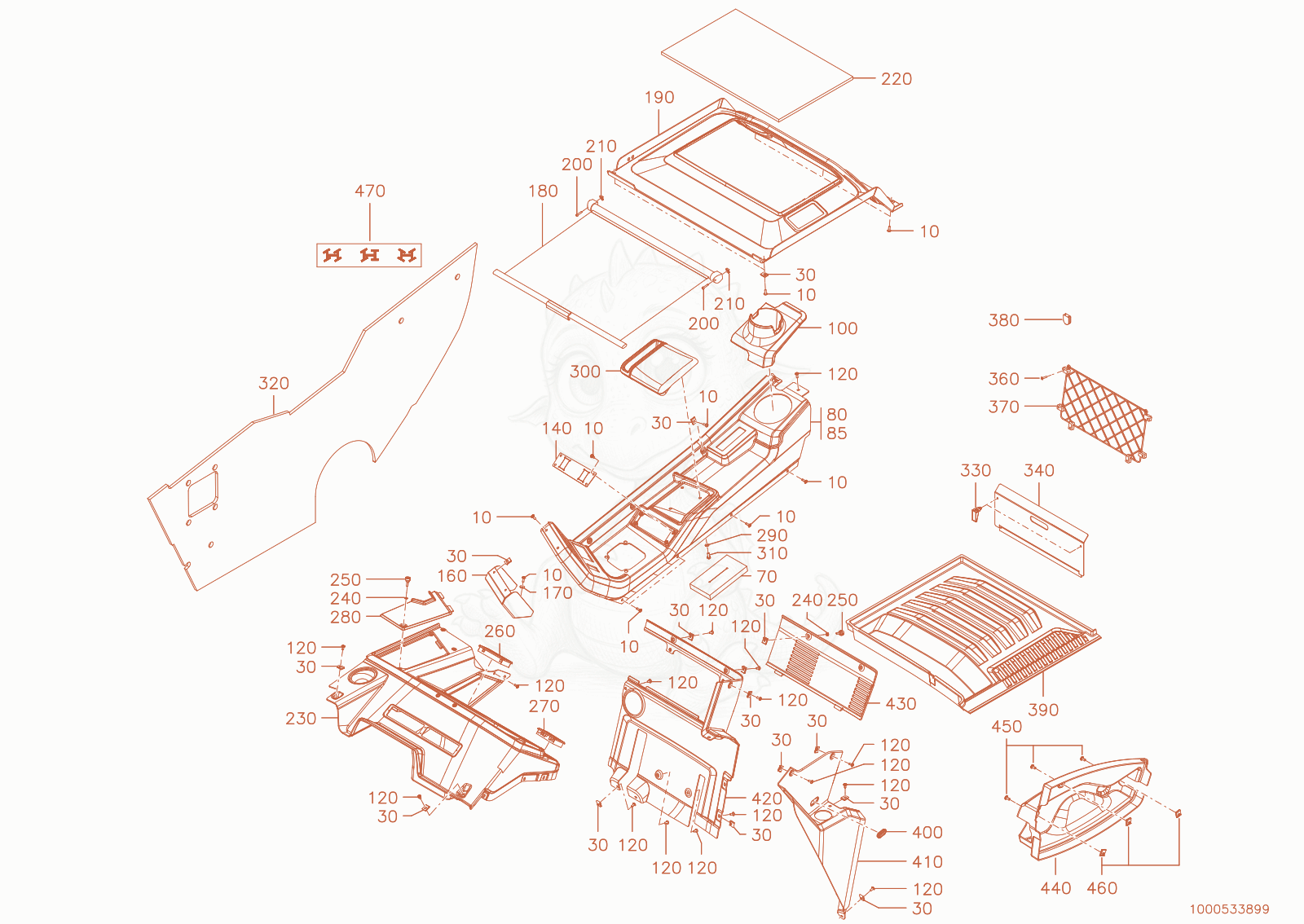

TH625(T06-01) trim Diagram

Exploded parts diagram of the trim of a Wacker Neuson TH625(T06-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000289762
    $1.16
    halfround screw - 1000289762×16
  • 301000030414Not stocked
    nut×6
  • 701000352090Not stocked
    insulating mat×1
  • 801000500344Not stocked
    side trim×1
  • 851000509398Not stocked
    side trim×1
  • 1001000465372
    $22.83
    Bottle holder - 1000465372×1
  • 1201000085378
    $0.70
    hex screw - 1000085378×2
  • 1401000511560Not stocked
    plate×1
  • 1601000558551Not stocked
    bracket×1
  • 1701000095342
    $1.22
    washer X-1000092302 - 1000095342×2
  • 1801000500357Not stocked
    sun rollblind×1
  • 1901000493546Not stocked
    roof trim×1
  • 2001000085450
    $0.70
    cheese head screw - 1000085450×2
  • 2101000329348Not stocked
    nut×2
  • 2201000500690
    $43.91
    Insulating mat - 1000500690×1
  • 2301000500343Not stocked
    front trim×1
  • 2401000483165
    $0.83
    Lock washer - 1000483165×3
  • 2501000355876Not stocked
    grooved screw×3
  • 2601000521561
    $3.31
    Mounting frame - 1000521561×1
  • 2701000537977Not stocked
    switch frame×1
  • 2801000518201Not stocked
    cover×1
  • 2901000015430Not stocked
    u-washer×3
  • 3001000479456
    $46.78
    Armrest Support - 1000479456×1
  • 3101000082237
    $1.71
    6-Point screw M6x16-8.8 A2C-DIN933 - 1000082237×3
  • 3201000530704Not stocked
    insulating mat×1
  • 3301000147884
    $30.08
    lock - 1000147884×1
  • 3401000500350Not stocked
    flap×1
  • 3601000052485Not stocked
    countersunk screw×4
  • 3701000034772
    $31.66
    NET - 1000034772×1
  • 3801000527537Not stocked
    plug×1
  • 3901000479893Not stocked
    floor rubber mat×1
  • 4001000384830
    $226.86
    sleeve - 1000384830×1
  • 4101000506630Not stocked
    cab trim×1
  • 4201000518205Not stocked
    trim×1
  • 4301000518206Not stocked
    Maintenance cover×1
  • 4401000500345Not stocked
    door trim×1
  • 4501000335809
    $1.22
    SCREW - 1000335809×3
  • 4601000030414Not stocked
    nut×3
  • 4701000239538
    $31.21
    INDICATION LABEL - 1000239538×1
