TH625

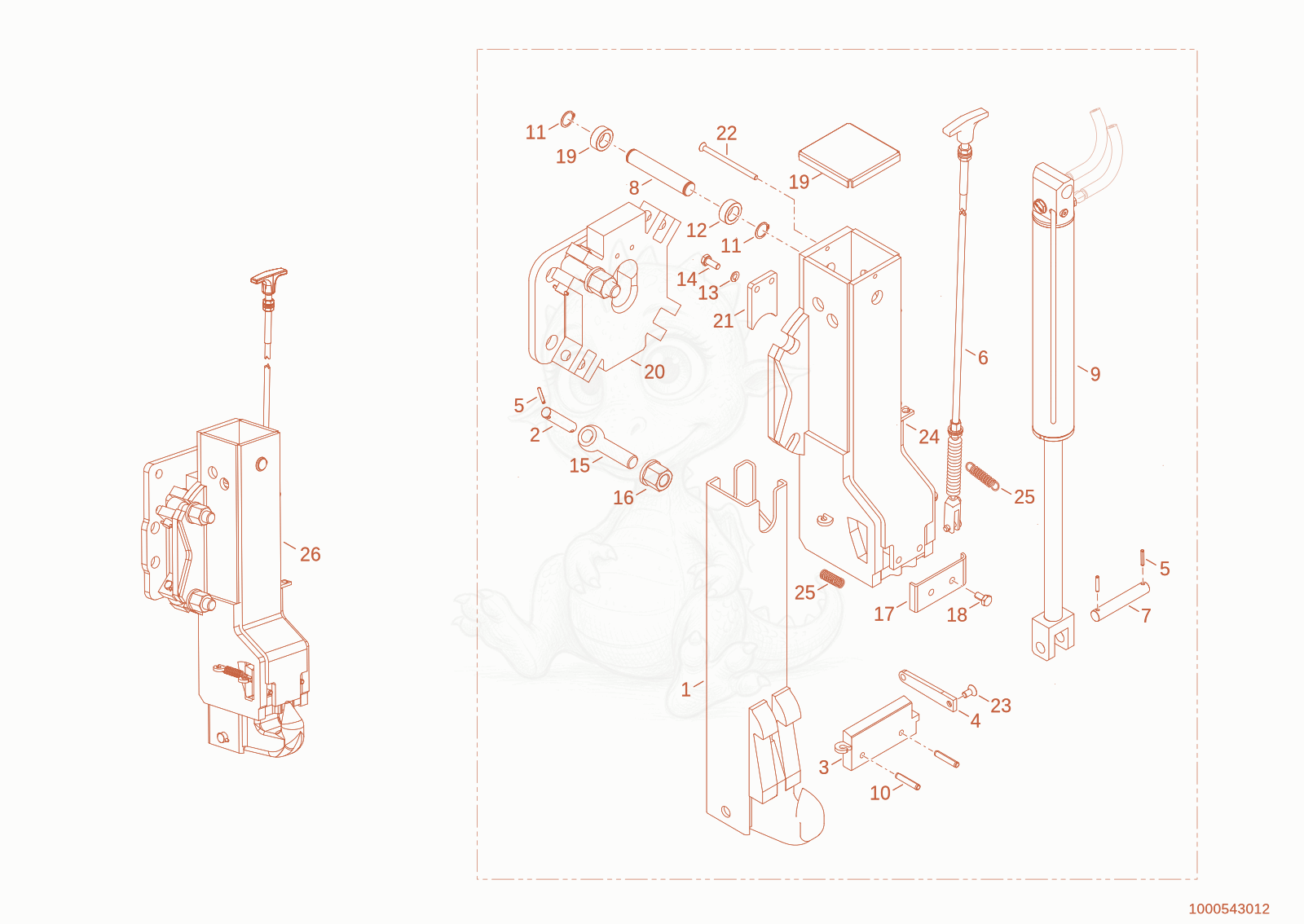

TH625(T06-01) coupling auto-hitch Diagram

Exploded parts diagram of the coupling auto-hitch of a Wacker Neuson TH625(T06-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000416699Not stocked
    towing hook×1
  • 21000416700Not stocked
    stick pin×4
  • 31000417041Not stocked
    fitting plate×1
  • 41000417043Not stocked
    cable bracket×1
  • 51000019189Not stocked
    cotter pin×10
  • 61000543013Not stocked
    bowden cable×1
  • 71000417049Not stocked
    fixing pin×1
  • 81000417050Not stocked
    fixing pin×1
  • 91000417081Not stocked
    hydraulic cylinder×1
  • 101000278180
    $2.27
    stud - 1000278180×2
  • 111000019253Not stocked
    lock ring×2
  • 121000417082Not stocked
    sleeve×2
  • 131000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 141000015364Not stocked
    hex screw×2
  • 151000417075Not stocked
    eye screw×4
  • 161000417076Not stocked
    flat nut×4
  • 171000543009Not stocked
    cover×1
  • 181000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 191000543006Not stocked
    cover×1
  • 201000416408Not stocked
    fastening plate×1
  • 211000417083Not stocked
    fixing×1
  • 221000333136
    $2.11
    Bolt - 1000333136×1
  • 231000015397Not stocked
    countersunk screw×1
  • 241000416410Not stocked
    outer bracket×1
  • 251000417044Not stocked
    tension spring×2
  • 261000523586Not stocked
    coupling auto-hitch×1
