TH625

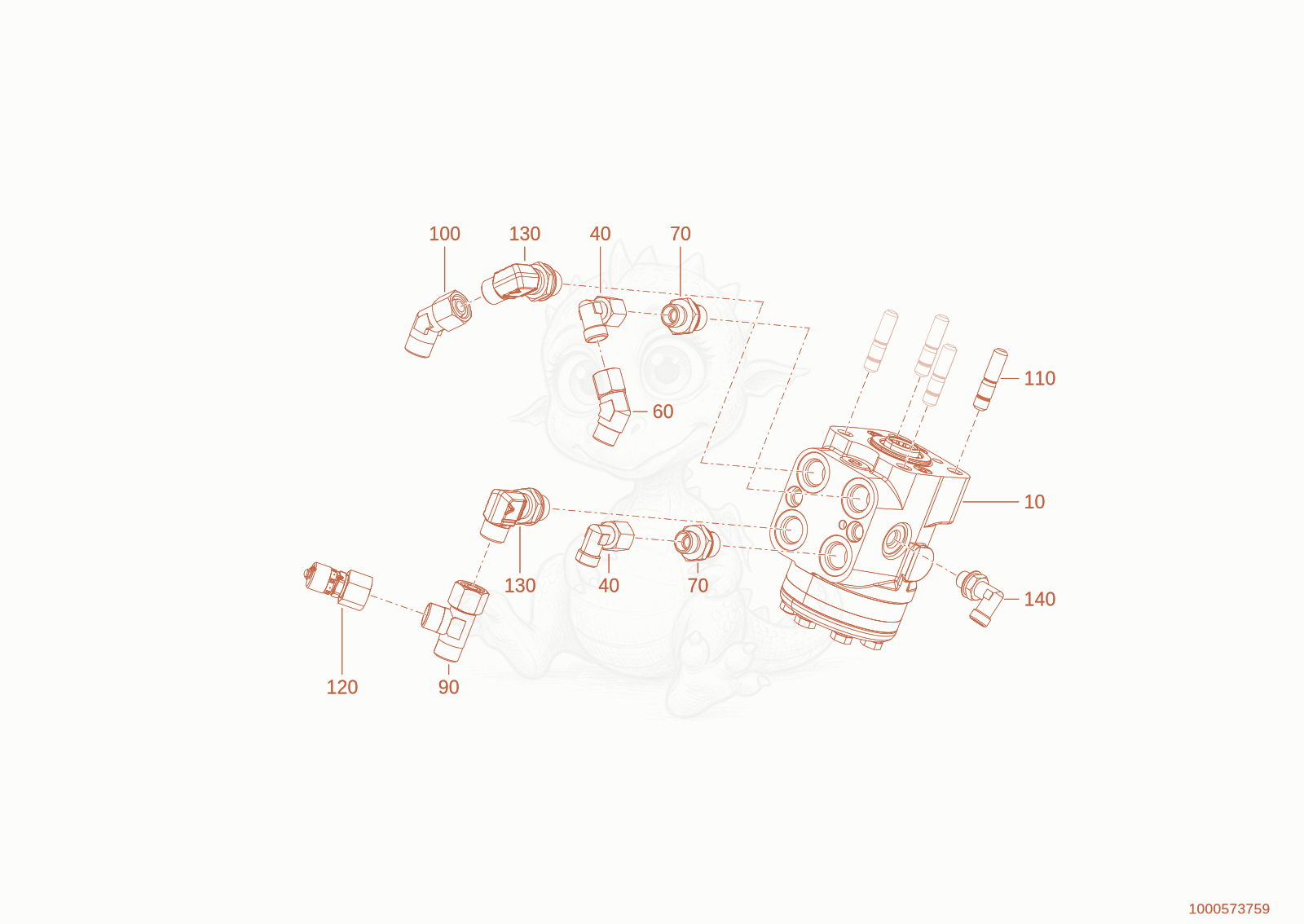

TH625(T06-01) hydrostatic steering Diagram

Exploded parts diagram of the hydrostatic steering of a Wacker Neuson TH625(T06-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000525014Not stocked
    steering unit×1
  • 101000561265Not stocked
    hydrostatic steering×1
  • 401000015510Not stocked
    screw joint×2
  • 601000168871
    $21.27
    EW 10 L 45° - 1000168871×1
  • 701000099768
    $8.96
    GE10-LM18X1,5ORA3C - 1000099768×2
  • 901000015516
    $13.63
    EL12LOMDA3C - 1000015516×1
  • 1001000170681
    $53.60
    EW 12 L 45�� - 1000170681×1
  • 1101000048917Not stocked
    stud×4
  • 1201000226604
    $63.02
    PR��FANSCHLUSS 12L SMK 12-12L-K - 1000226604×1
  • 1301000109207
    $37.60
    EWE12LM18X1,5OR - 1000109207×2
  • 1401000106531
    $15.18
    EWE8-LM12X1,5 A3C - 1000106531×1
