TH627

TH627(418-22) Hydraulics Tele Diagram

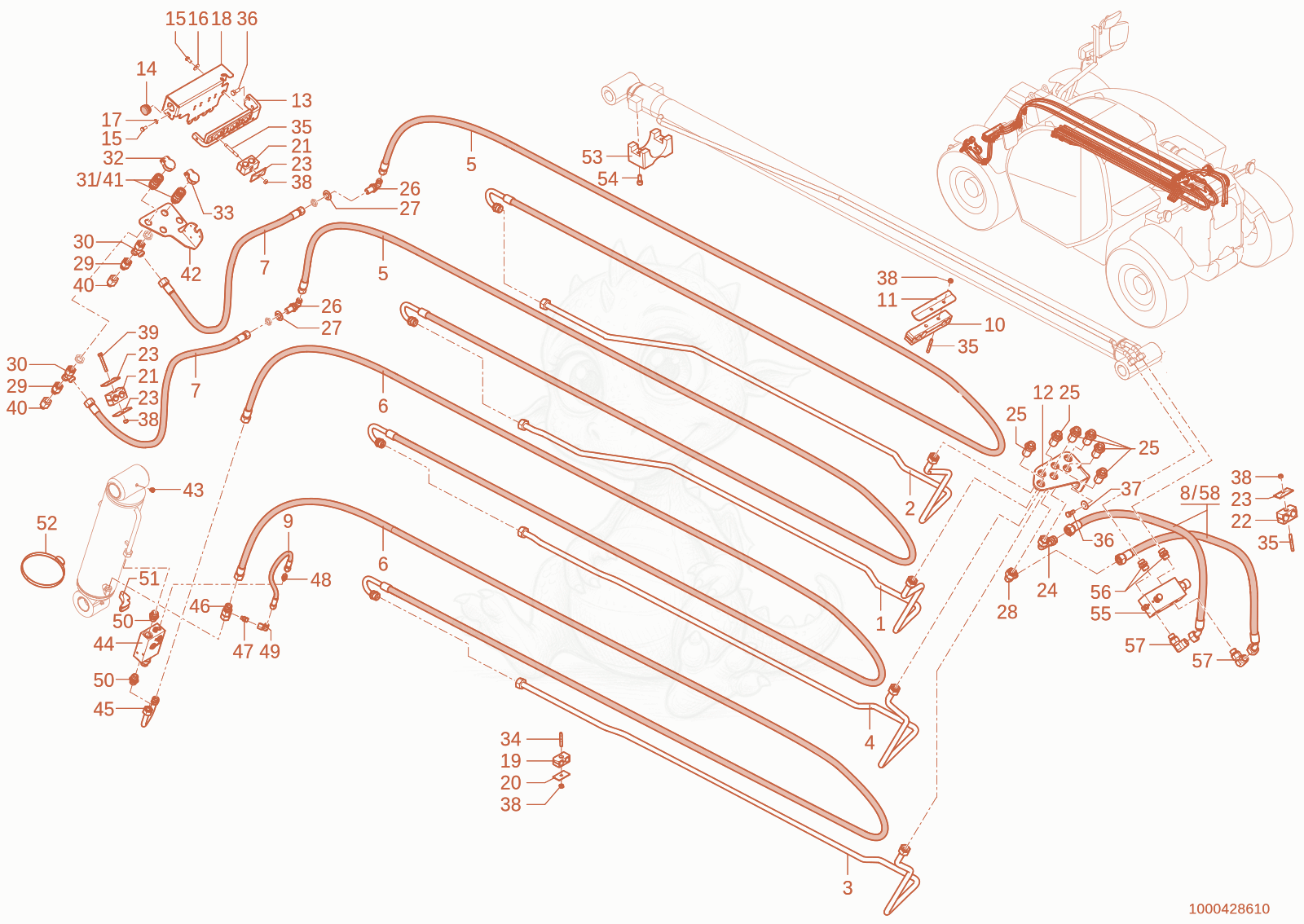

Exploded parts diagram of the Hydraulics Tele of a Wacker Neuson TH627(418-22), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000361474Not stocked
    hydraulic pipe×1
  • 21000361475Not stocked
    hydraulic pipe×1
  • 31000361476Not stocked
    hydraulic pipe×1
  • 41000361477Not stocked
    hydraulic pipe×1
  • 51000351786Not stocked
    Hose×2
  • 61000351787Not stocked
    Hose×2
  • 71000351789Not stocked
    Hose×2
  • 81000351788Not stocked
    Hose×2
  • 91000248144
    $23.77
    SLHYDR 2SC 6,0PN8 0 PN8 0 L400,0 - 1000248144×1
  • 101000351284Not stocked
    hose clamp×1
  • 111000246448
    $45.36
    Cover plate - 1000246448×1
  • 121000336304
    $110.22
    Bracket - 1000336304×1
  • 131000394709
    $510.52
    Bracket - 1000394709×1
  • 141000246267
    $2.76
    Plug - 1000246267×1
  • 151000019136Not stocked
    hex screw×2
  • 161000013027Not stocked
    washer×1
  • 171000015431Not stocked
    washer×1
  • 181000394713
    $302.83
    Distributor - 1000394713×1
  • 191000031626
    $3.54
    CLAMP - 1000031626×4
  • 201000031230Not stocked
    cover plate×4
  • 211000031638
    $2.44
    CLAMP - 1000031638×2
  • 221000124488
    $4.83
    CLAMP - 1000124488×1
  • 231000031245Not stocked
    cover plate×4
  • 241000168252
    $43.21
    CONNECTION PIECE - 1000168252×1
  • 251000015563Not stocked
    screw joint×6
  • 261000085080
    $12.42
    WSV12LOMDA3C - 1000085080×2
  • 271000049221Not stocked
    washer×2
  • 281000015513Not stocked
    screw joint×1
  • 291000028198Not stocked
    screw joint×2
  • 301000015539Not stocked
    screw joint×2
  • 311000019246Not stocked
    quick lock coupling×2
  • 321000033344
    $6.47
    Cover - 1000033344×1
  • 331000266545
    $12.99
    Cover - 1000266545×1
  • 341000048881Not stocked
    stud×4
  • 351000048894Not stocked
    stud×4
  • 361000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 371000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×2
  • 381000013022Not stocked
    hexagon nut×9
  • 391000085318
    $1.11
    6-Point screw M8x60-8.8 A2C-DIN931 - 1000085318×1
  • 401000149766
    $48.71
    VERSCHRAUBUNG - 1000149766×2
  • 411000028413Not stocked
    quick lock coupling×2
  • 421000347790
    $108.37
    Bracket - 1000347790×1
  • 431000154994
    $9.42
    lock screw - 1000154994×1
  • 441000310121
    $332.21
    valve - 1000310121×1
  • 451000238489
    $66.92
    HYDRAULIC PIPE - 1000238489×1
  • 461000246601
    $130.36
    PIPE LINE - 1000246601×1
  • 471000028739Not stocked
    screw joint×1
  • 481000015530Not stocked
    screw joint×1
  • 491000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 501000015494Not stocked
    screw joint×2
  • 511000031730
    $11.93
    Lining - 1000031730×1
  • 521000032242
    $5.30
    CLAMP - 1000032242×1
  • 531000249132
    $108.57
    SLIDE PIECE - 1000249132×1
  • 541000085468
    $0.42
    cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×2
  • 551000335231
    $699.39
    Valve - 1000335231×1
  • 561000015494Not stocked
    screw joint×2
  • 571000028464Not stocked
    screw joint×2
  • 581000372907Not stocked
    Hose×2
