TH627

TH627(418-22) Cycle compensating cylinder Diagram

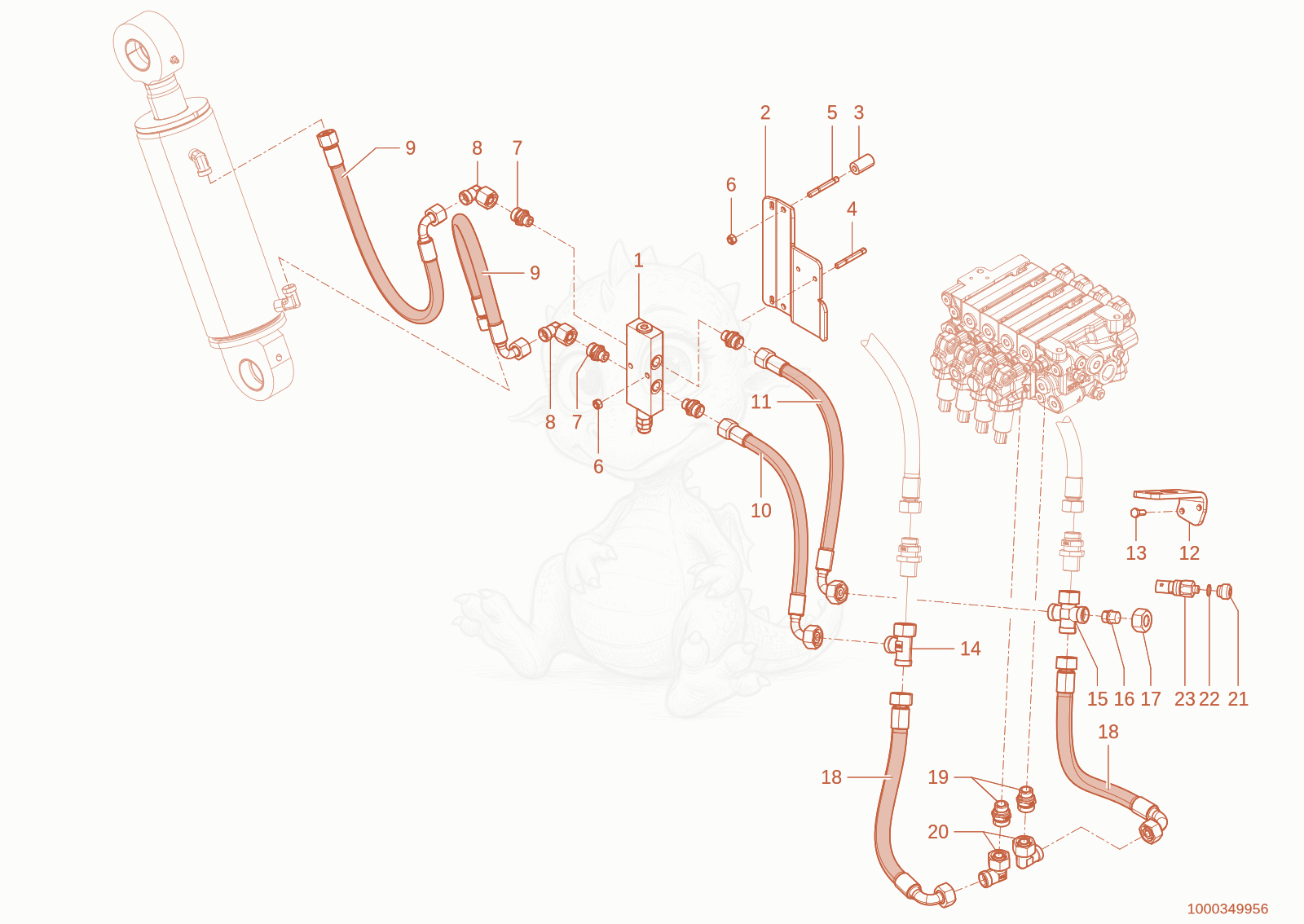

Exploded parts diagram of the Cycle compensating cylinder of a Wacker Neuson TH627(418-22), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000276175
    $289.39
    Valve 1000276175×1
  • 21000246755
    $44.09
    Bracket - 1000246755×1
  • 31000336552Not stocked
    distance piece×2
  • 41000048881Not stocked
    stud×2
  • 51000048894Not stocked
    stud×2
  • 61000013022Not stocked
    hexagon nut×4
  • 71000100718
    $9.88
    GE15-LR3/8" E A3C - 1000100718×4
  • 81000015512Not stocked
    screw joint×2
  • 91000247390
    $38.92
    SLHYDR 2SC 12 PN15 0 PN15 90 L560,0 - 1000247390×2
  • 101000348298Not stocked
    Hose×1
  • 111000348297Not stocked
    Hose×1
  • 121000336306
    $55.79
    Bracket - 1000336306×1
  • 131000013008Not stocked
    hex screw×2
  • 141000015517Not stocked
    screw joint×1
  • 151000128869
    $99.73
    EK18-L A3C - 1000128869×1
  • 161000028206Not stocked
    lock piece×1
  • 171000050506Not stocked
    union nut×1
  • 181000348305Not stocked
    Hose×2
  • 191000015559Not stocked
    screw joint×2
  • 201000015513Not stocked
    screw joint×2
  • 211000151022
    $28.42
    CONNECTION PIECE - 1000151022×1
  • 221000085676
    $0.80
    seal ring - 1000085676×1
  • 231000276818
    $158.36
    pressure switch - 1000276818×1
