TH627

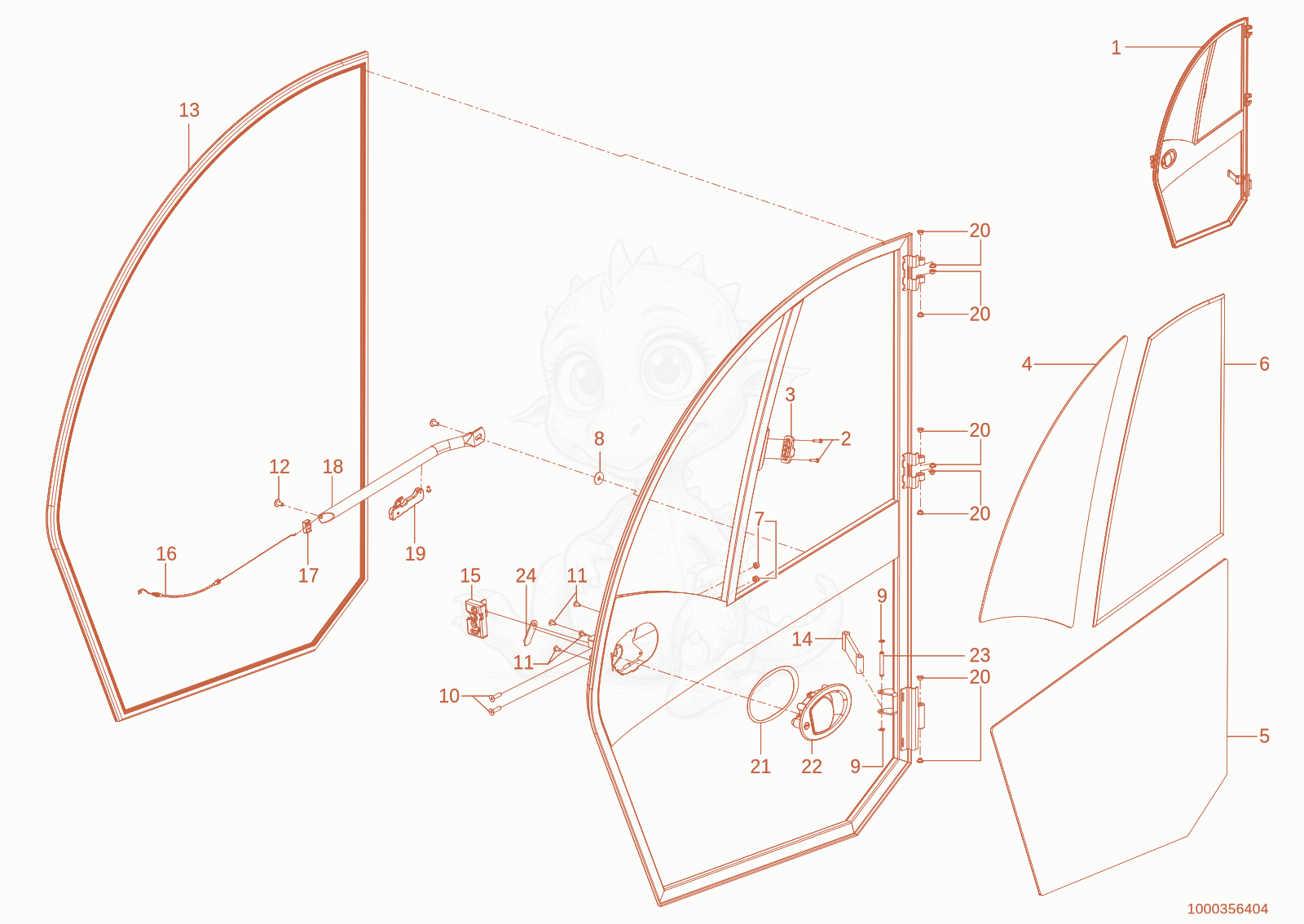

TH627(418-22) Cab door Diagram

Exploded parts diagram of the Cab door of a Wacker Neuson TH627(418-22), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000356534
    $4,291.64
    Door - 1000356534×1
  • 21000356535Not stocked
    countersunk screw×2
  • 31000356541
    $107.12
    Lock - 1000356541×1
  • 41000356533Not stocked
    door window×1
  • 51000356538Not stocked
    door window×1
  • 61000356540Not stocked
    Seal door window×1
  • 71000366478Not stocked
    hexagon nut×2
  • 81000356545Not stocked
    washer×1
  • 91000356554Not stocked
    lock ring×2
  • 101000366477Not stocked
    screw×2
  • 111000407557Not stocked
    screw×4
  • 121000356555Not stocked
    flat head screw×2
  • 131000356552
    $80.84
    profile - 1000356552×1
  • 141000356558
    $66.58
    fastenbelt - 1000356558×1
  • 151000356547
    $188.20
    Lock - 1000356547×1
  • 161000356543Not stocked
    bowden cable×1
  • 171000356544
    $6.68
    MOUNTING - 1000356544×1
  • 181000356542
    $202.92
    Handle - 1000356542×1
  • 191000356559Not stocked
    control lever×1
  • 201000356556
    $2.50
    Bushing - 1000356556×10
  • 211000308779
    $6.28
    SEAL - 1000308779×1
  • 221000356546
    $113.01
    Handle - 1000356546×1
  • 231000356557
    $22.47
    PIN - 1000356557×1
  • 241000356560
    $14.49
    joint - 1000356560×1
