TH627

TH627(418-22) Harness telescopio 14-pol. Diagram

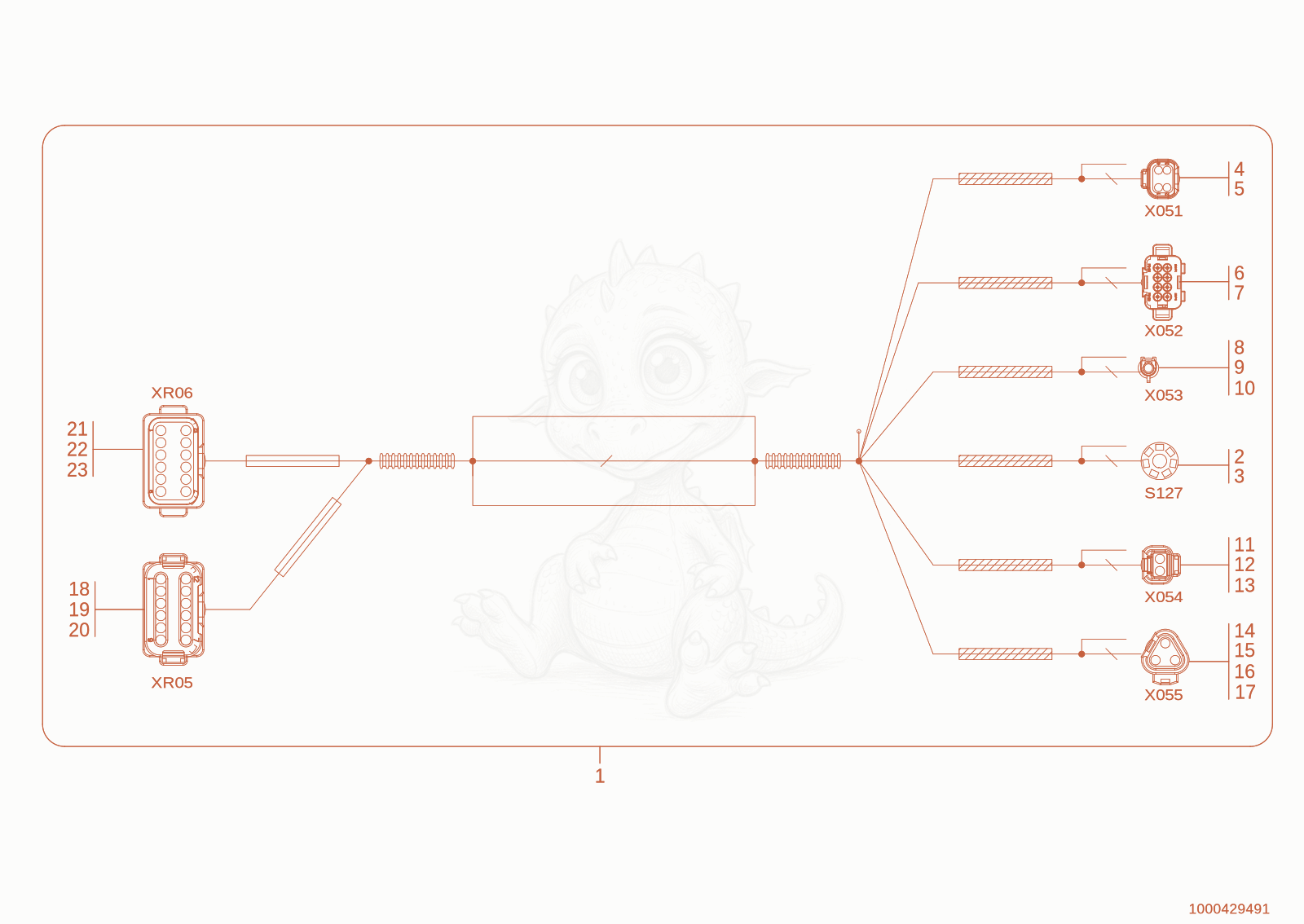

Exploded parts diagram of the Harness telescopio 14-pol. of a Wacker Neuson TH627(418-22), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000420562Not stocked
    wiring harness×1
  • 21000104430
    $10.68
    Plug housing - 1000104430×1
  • 31000095371Not stocked
    plug sleeve×2
  • 41000104284
    $15.02
    Pin housing - 1000104284×1
  • 51000309282Not stocked
    pin contact×4
  • 61000420762Not stocked
    pin housing×1
  • 71000420763Not stocked
    pin contact×8
  • 81000298832Not stocked
    pin housing×1
  • 91000155228
    $1.41
    Pin contact - 1000155228×1
  • 101000052672Not stocked
    seal×1
  • 111000027445Not stocked
    pin housing×1
  • 121000309282Not stocked
    pin contact×1
  • 131000362407Not stocked
    pin contact×1
  • 141000027394Not stocked
    pin housing×1
  • 151000362407Not stocked
    pin contact×1
  • 161000309282Not stocked
    pin contact×1
  • 171000030446Not stocked
    plug×1
  • 181000100595
    $18.24
    pin housing - 1000100595×1
  • 191000085028Not stocked
    pin contact×6
  • 201000030446Not stocked
    plug×6
  • 211000105124
    $36.42
    pin housing - 1000105124×1
  • 221000309282Not stocked
    pin contact×11
  • 231000030446Not stocked
    plug×1
