TH627

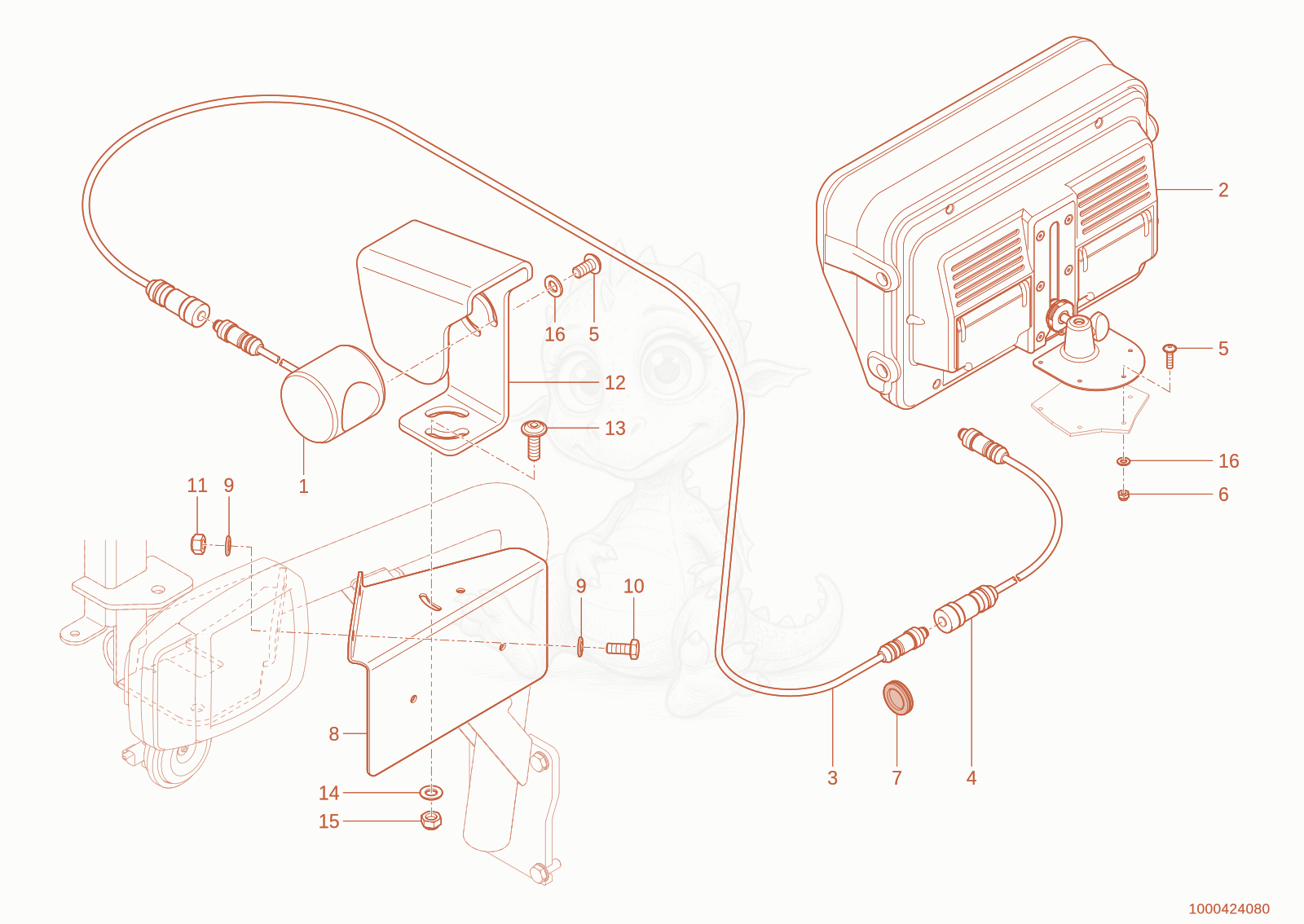

TH627(418-22) camera Diagram

Exploded parts diagram of the camera of a Wacker Neuson TH627(418-22), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000380360
    $920.50
    camera - 1000380360×1
  • 21000376907Not stocked
    Monitor cpl.×1
  • 31000380472
    $139.21
    cable - 1000380472×1
  • 41000380471
    $116.58
    cable - 1000380471×1
  • 51000152757
    $1.31
    ovalhead screw - 1000152757×7
  • 61000049057Not stocked
    hexagon nut×5
  • 71000106433
    $5.34
    JUNCTION - 1000106433×1
  • 81000284324
    $109.38
    Bracket - 1000284324×1
  • 91000015431Not stocked
    washer×4
  • 101000047828Not stocked
    hex screw×2
  • 111000013022Not stocked
    hexagon nut×2
  • 121000392841
    $152.37
    Bracket - 1000392841×1
  • 131000289762
    $1.16
    halfround screw - 1000289762×2
  • 141000095342
    $1.22
    washer X-1000092302 - 1000095342×2
  • 151000085587
    $0.03
    HEXAGON NUT - 1000085587×2
  • 161000092288
    $3.28
    WASHER - 1000092288×7
