WL110

WL110(R90-05) Trailer brake Diagram

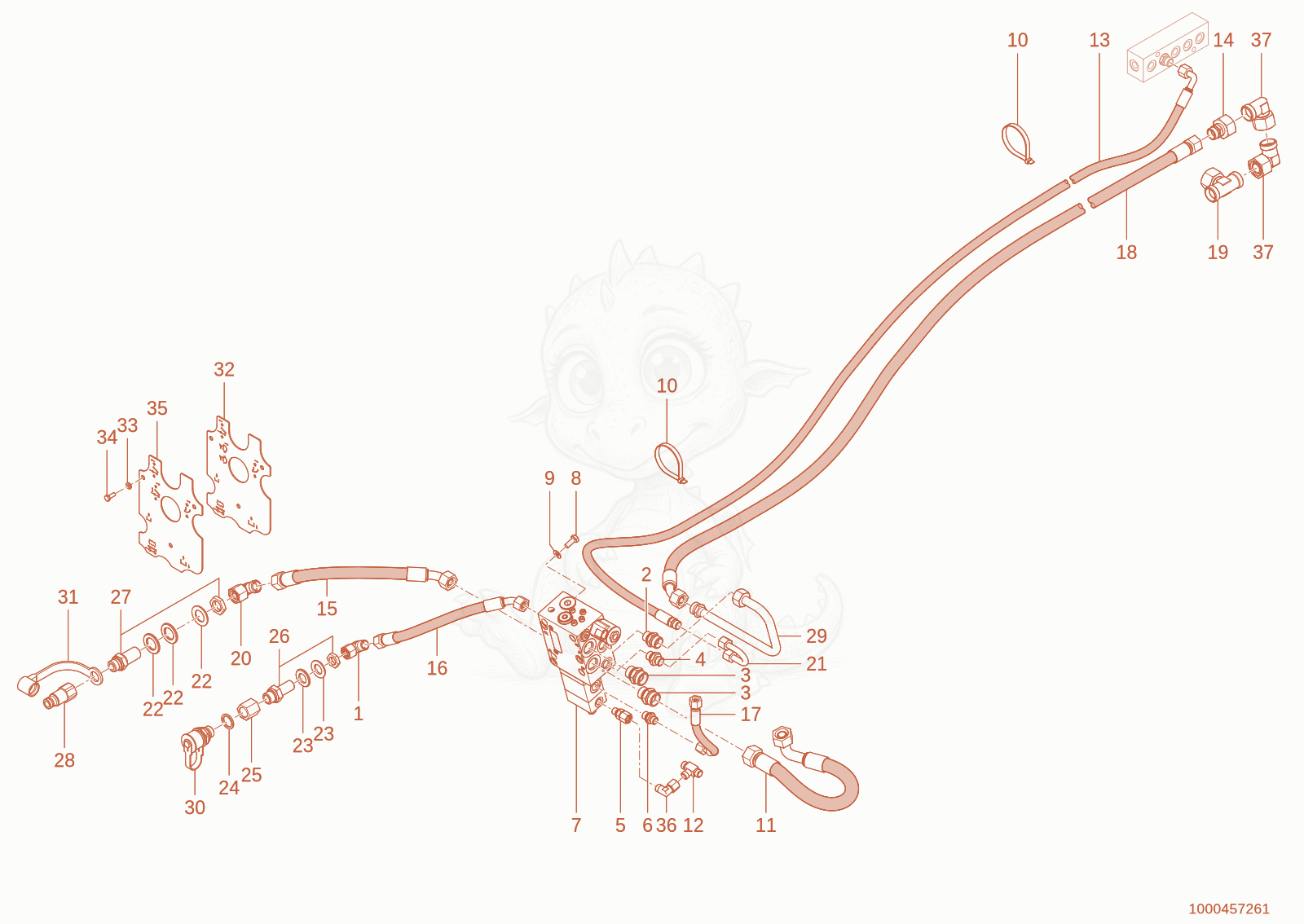

Exploded parts diagram of the Trailer brake of a Wacker Neuson WL110(R90-05), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000000573Not stocked
    screw joint×1
  • 21000368746Not stocked
    screw joint×1
  • 31000147704
    $6.53
    GE18LM22X1,5OROMDA3C - 1000147704×2
  • 41000375777Not stocked
    screw joint×1
  • 51000273543
    $12.85
    EGE 8-L M12X1,5 - 1000273543×1
  • 61000028657Not stocked
    screw joint×1
  • 71000422424Not stocked
    brake valve×1
  • 81000013008Not stocked
    hex screw×3
  • 91000015431Not stocked
    washer×3
  • 101000090012
    $0.50
    CABLE STRAP - 1000090012×2
  • 111000378941Not stocked
    Hose×1
  • 121000101307
    $79.20
    REPLACEMENT VALVE - 1000101307×1
  • 131000376148Not stocked
    Hose×1
  • 141000085040
    $7.68
    RED22/15LOMDA3C - 1000085040×1
  • 151000376145Not stocked
    Hose×1
  • 161000376142Not stocked
    Hose×1
  • 171000376141Not stocked
    Hose×1
  • 181000376147Not stocked
    Hose×1
  • 191000085124
    $24.29
    ET22LOMDA3C - 1000085124×1
  • 201000015512Not stocked
    screw joint×1
  • 211000102283
    $24.52
    HYDRAULIC PIPE - 1000102283×1
  • 221000049223
    $3.16
    WASHER - 1000049223×3
  • 231000049221Not stocked
    washer×2
  • 241000369353Not stocked
    seal ring×1
  • 251000369358Not stocked
    screw joint×1
  • 261000369487
    $36.06
    ADAPTER - 1000369487×1
  • 271000050609
    $30.79
    ADAPTER - 1000050609×1
  • 281000182463
    $108.92
    plug coupling - 1000182463×1
  • 291000373839Not stocked
    hydraulic pipe×1
  • 301000369359Not stocked
    quick lock coupling×1
  • 311000020860Not stocked
    dust cap×1
  • 321000379572Not stocked
    cover plate×1
  • 331000092290
    $0.74
    WASHER - 1000092290×3
  • 341000085382
    $0.70
    HEX SCREW - 1000085382×3
  • 351000379745Not stocked
    cover plate×1
  • 361000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 371000020261
    $17.85
    EW22LOMD - 1000020261×2
