WL110

WL110(R90-05) Console Diagram

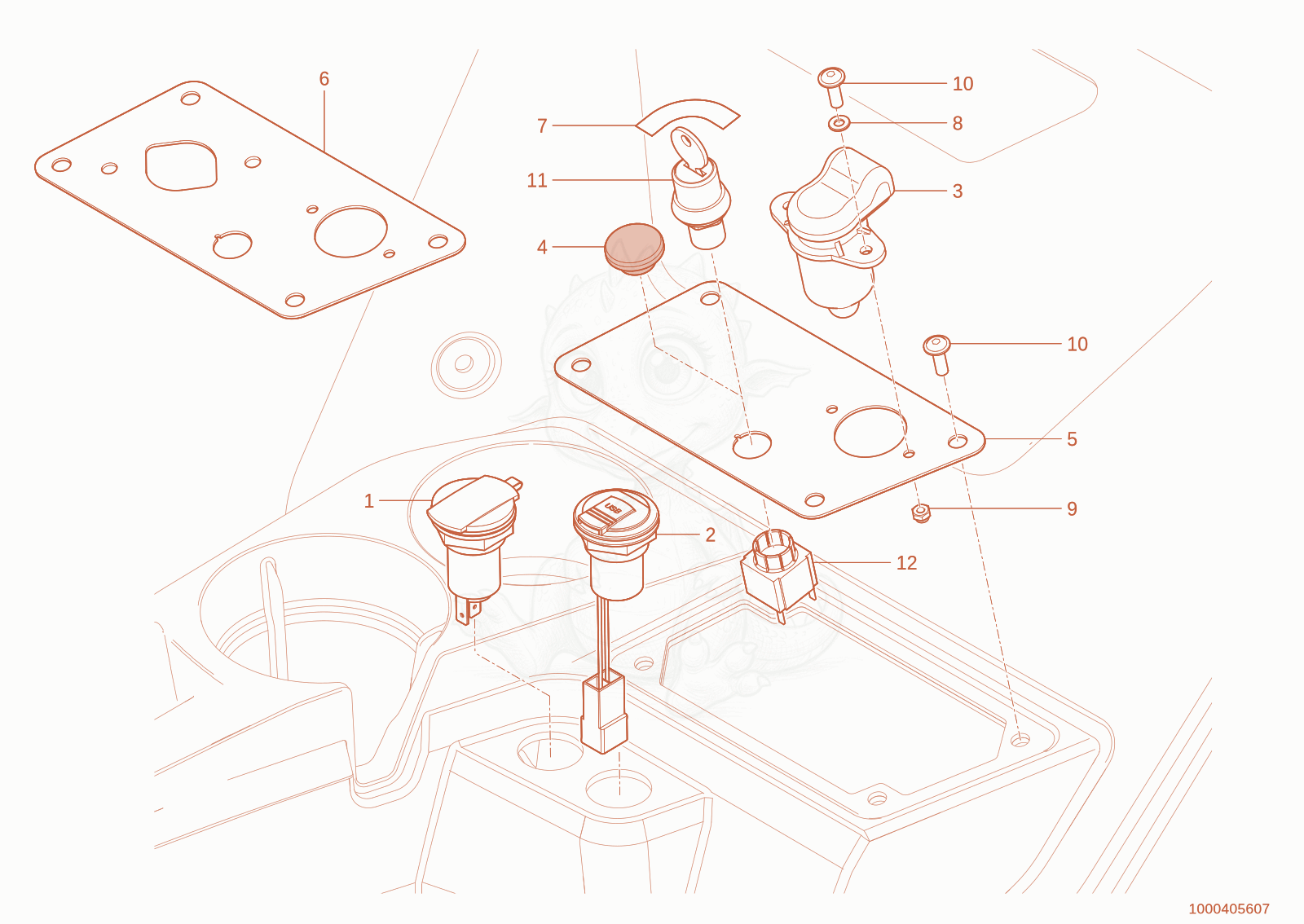

Exploded parts diagram of the Console of a Wacker Neuson WL110(R90-05), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000187512
    $30.26
    socket - 1000187512×1
  • 21000378118Not stocked
    socket×1
  • 31000229809
    $23.63
    socket - 1000229809×1
  • 41000099083
    $1.36
    PLUG - 1000099083×1
  • 51000449455Not stocked
    cover plate×1
  • 61000449447Not stocked
    cover plate×1
  • 71000052378Not stocked
    indication label×2
  • 81000092289
    $1.71
    WASHER - 1000092289×2
  • 91000085587
    $0.03
    HEXAGON NUT - 1000085587×2
  • 101000289762
    $1.16
    halfround screw - 1000289762×6
  • 111000051960
    $132.30
    Switch - 1000051960×1
  • 121000027253Not stocked
    switch unit×1
