WL110

WL110(R90-05) wiring harness Diagram

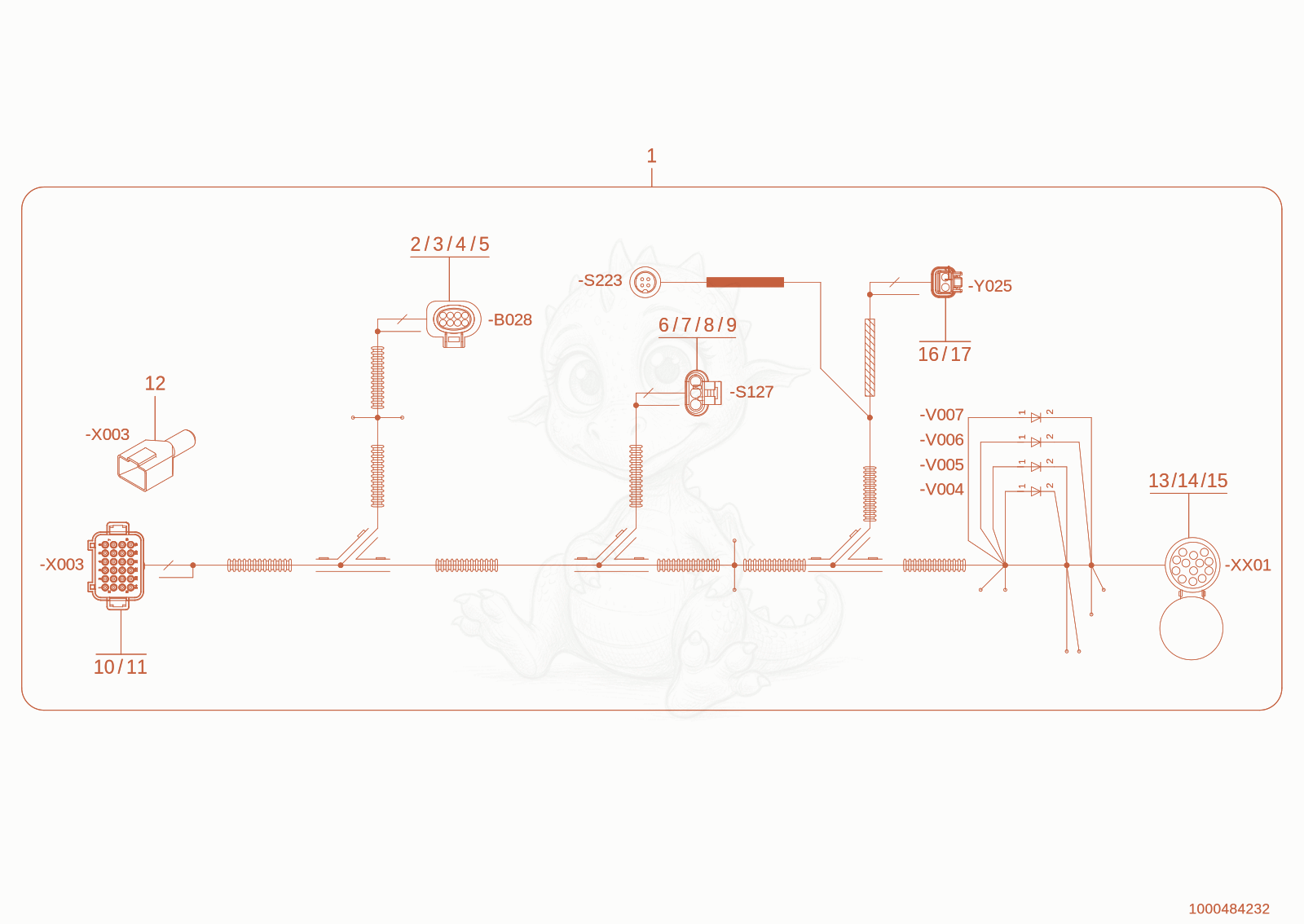

Exploded parts diagram of the wiring harness of a Wacker Neuson WL110(R90-05), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000459314Not stocked
    wiring harness×1
  • 21000262118
    $17.60
    bushing housing - 1000262118×1
  • 31000104732
    $3.06
    CONTACT - 1000104732×6
  • 41000104740
    $1.41
    lock plug - 1000104740×2
  • 51000104738
    $1.51
    seal - 1000104738×6
  • 61000051989Not stocked
    bushing housing×1
  • 71000051990Not stocked
    bushing contact×2
  • 81000128773
    $0.32
    Plug - 1000128773×1
  • 91000052672Not stocked
    seal×2
  • 101000147472
    $6.67
    Pin contact - 1000147472×24
  • 111000363133Not stocked
    pin housing×1
  • 121000145426
    $11.06
    Rubber cap - 1000145426×1
  • 131000105125
    $90.64
    Socket - 1000105125×1
  • 141000051988
    $0.91
    endsleeve - 1000051988×4
  • 151000098962
    $0.68
    endsleeve - 1000098962×6
  • 161000027438Not stocked
    bushing housing×1
  • 171000359612Not stocked
    plug connection×2
