WL110

WL110(R90-05) Cycle add. + Hitch + Tippler Diagram

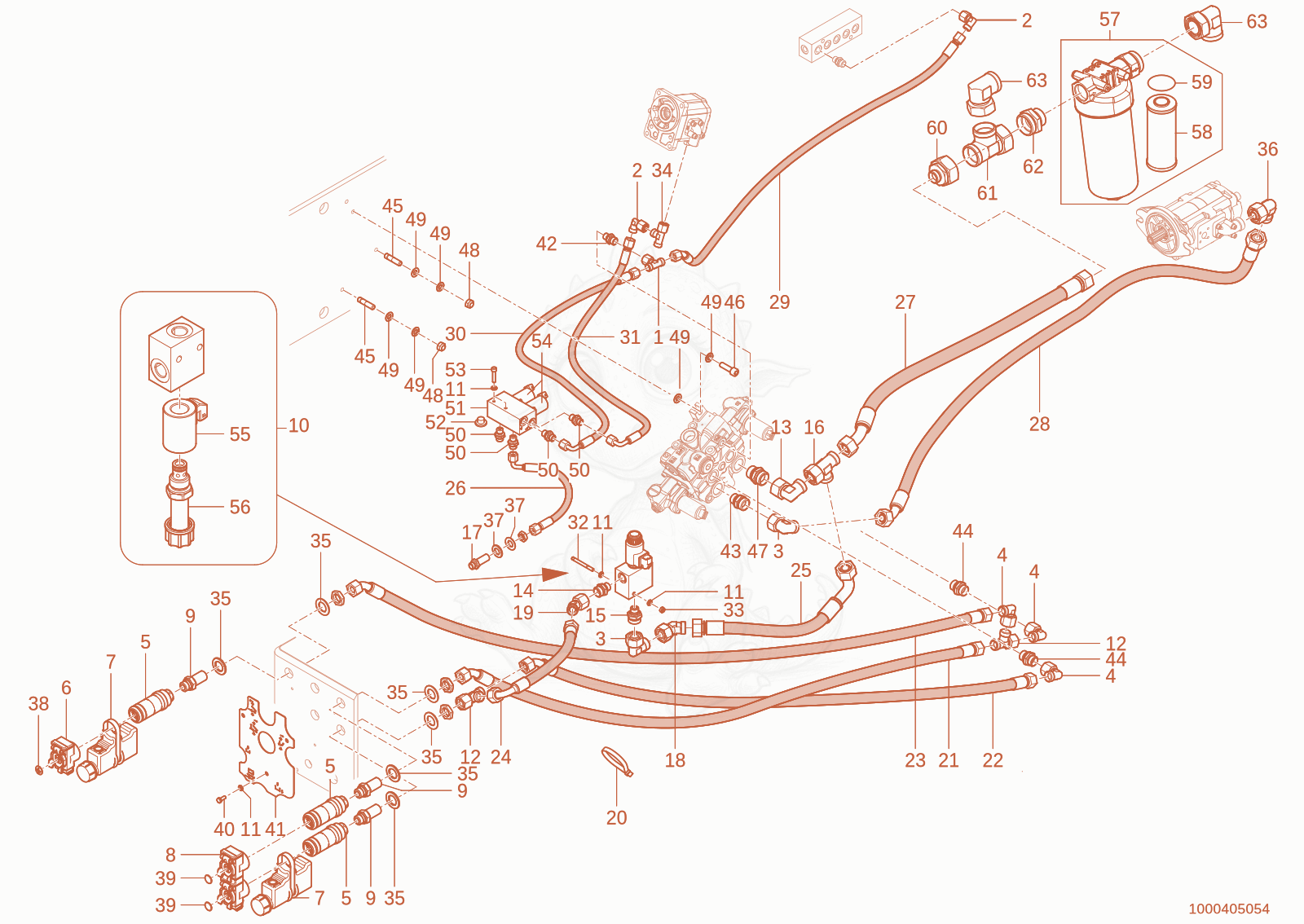

Exploded parts diagram of the Cycle add. + Hitch + Tippler of a Wacker Neuson WL110(R90-05), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000085057
    $13.12
    ET10LOMDA3C - 1000085057×1
  • 21000015510Not stocked
    screw joint×2
  • 31000015513Not stocked
    screw joint×2
  • 41000015512Not stocked
    screw joint×3
  • 51000343711
    $93.62
    Socket - 1000343711×3
  • 61000277838
    $43.48
    oiltank - 1000277838×1
  • 71000284530
    $41.98
    Container - 1000284530×2
  • 81000277839
    $72.42
    oiltank - 1000277839×1
  • 91000050609
    $30.79
    ADAPTER - 1000050609×3
  • 101000335644
    $216.58
    Valve - 1000335644×1
  • 111000092290
    $0.74
    WASHER - 1000092290×9
  • 121000015539Not stocked
    screw joint×2
  • 131000020261
    $17.85
    EW22LOMD - 1000020261×1
  • 141000100718
    $9.88
    GE15-LR3/8" E A3C - 1000100718×1
  • 151000052133Not stocked
    screw joint×1
  • 161000085045
    $31.31
    EL22LOMDA3C - 1000085045×1
  • 171000085075
    $4.46
    SV08-L - 1000085075×1
  • 181000149608
    $73.35
    EW 18 L 45° - 1000149608×1
  • 191000189050
    $50.03
    EW 15 L 45�� - 1000189050×1
  • 201000090012
    $0.50
    CABLE STRAP - 1000090012×1
  • 211000374702Not stocked
    Hose×1
  • 221000374703Not stocked
    Hose×1
  • 231000374704Not stocked
    Hose×1
  • 241000352216Not stocked
    Hose×1
  • 251000374705Not stocked
    Hose×1
  • 261000374706Not stocked
    Hose×1
  • 271000374707Not stocked
    Hose×1
  • 281000374710Not stocked
    Hose×1
  • 291000374711Not stocked
    Hose×1
  • 301000374712Not stocked
    Hose×1
  • 311000374709Not stocked
    Hose×1
  • 321000048887
    $1.31
    STUD - 1000048887×2
  • 331000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 341000085089
    $10.48
    EL10LOMDA3C - 1000085089×1
  • 351000049223
    $3.16
    WASHER - 1000049223×6
  • 361000085093
    $17.22
    EW20SOMDA3C - 1000085093×1
  • 371000049233Not stocked
    washer×2
  • 381000284529
    $2.12
    Bracket - 1000284529×1
  • 391000380193
    $2.02
    clip - 1000380193×2
  • 401000085382
    $0.70
    HEX SCREW - 1000085382×3
  • 411000379745Not stocked
    cover plate×1
  • 421000015490Not stocked
    screw joint×1
  • 431000015559Not stocked
    screw joint×1
  • 441000015494Not stocked
    screw joint×2
  • 451000048917Not stocked
    stud×2
  • 461000085503
    $0.93
    cheese head screw - 1000085503×1
  • 471000085096
    $9.05
    GE22LREDOMDA3C - 1000085096×1
  • 481000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×2
  • 491000092291
    $0.80
    WASHER - 1000092291×6
  • 501000015488Not stocked
    screw joint×3
  • 511000052097Not stocked
    solenoid valve×1
  • 521000030476Not stocked
    lock screw×1
  • 531000015369Not stocked
    cheese head screw×2
  • 541000135753
    $289.63
    valve - 1000135753×2
  • 551000346390
    $64.57
    Solenoid - 1000346390×1
  • 561000265570
    $198.75
    drive valve - 1000265570×1
  • 571000351828
    $325.01
    Filter - 1000351828×1
  • 581000394792
    $197.44
    Filter - 1000394792×1
  • 591000403345
    $26.98
    O-ring - 1000403345×1
  • 601000162847
    $62.88
    GE42LR 1 1/4" A3C - 1000162847×1
  • 611000120376Not stocked
    screw joint×1
  • 621000363219Not stocked
    screw joint×1
  • 631000162881
    $88.80
    EW42LOMDA3C - 1000162881×2
