WL20e

WL20E main harness Diagram

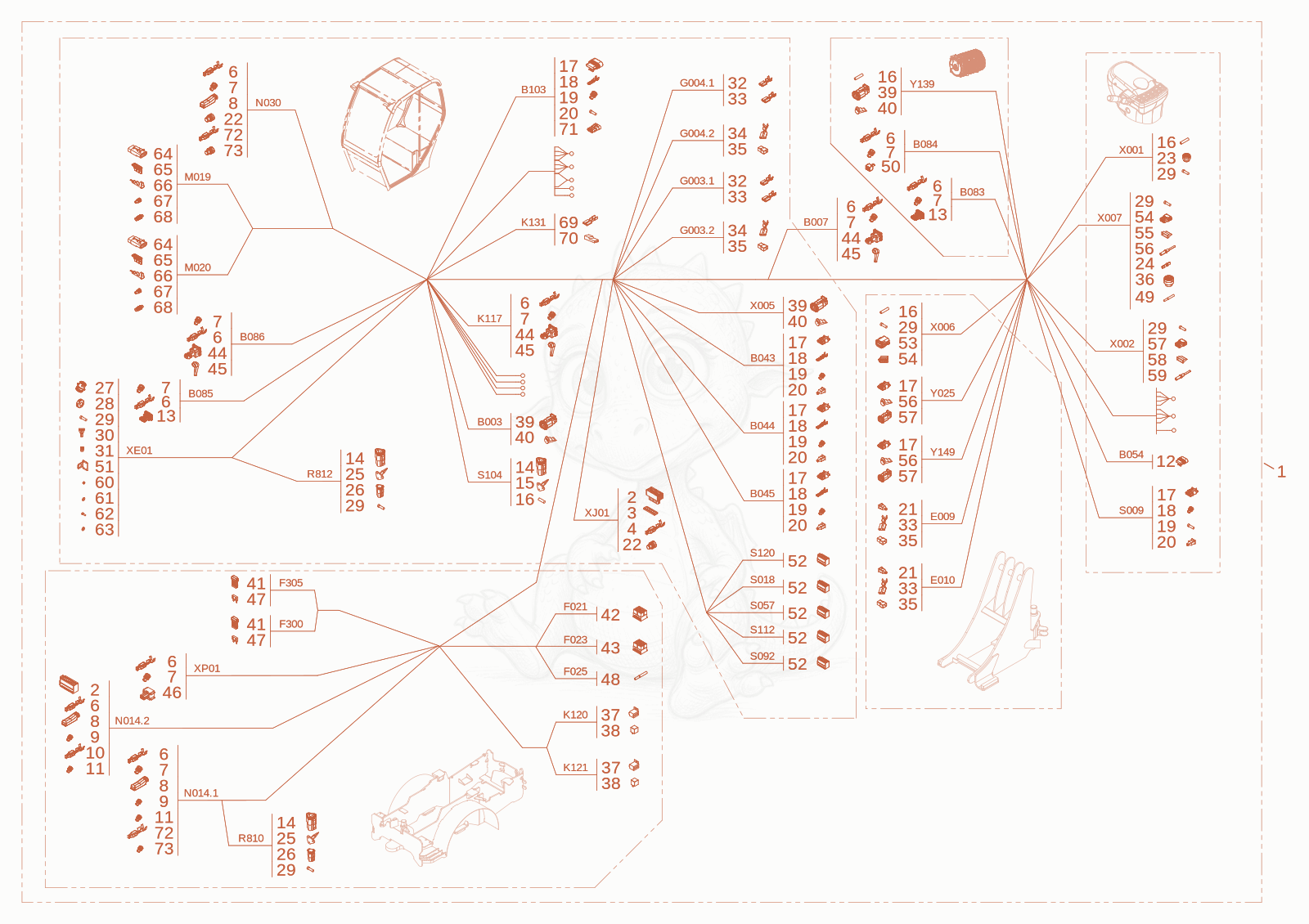

Exploded parts diagram of the main harness of a Wacker Neuson WL20E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000343795Not stocked
    main harness×1
  • 21000261621
    $32.33
    PLUG HOUSING - 1000261621×1
  • 31000225296
    $7.04
    Gasket - 1000225296×1
  • 41000229903
    $2.68
    plug - 1000229903×8
  • 51000328549Not stocked
    plug housing×2
  • 61000347189Not stocked
    plug sleeve×77
  • 71000344800
    $0.29
    Seal - 1000344800×77
  • 81000344776Not stocked
    cover×3
  • 91000104740
    $1.41
    lock plug - 1000104740×1
  • 101000316866Not stocked
    plug sleeve×12
  • 111000344851Not stocked
    seal×12
  • 121000308534Not stocked
    bushing housing×1
  • 131000344777Not stocked
    bushing housing×2
  • 141000229808
    $8.99
    HOUSING-PLUG - 1000229808×3
  • 151000229811
    $1.41
    LOOKING - 1000229811×1
  • 161000085034Not stocked
    bushing contact×5
  • 171000255531
    $4.79
    HOUSING-PLUG - 1000255531×6
  • 181000229891
    $1.51
    PLUG SLEEVE CONNECTION - 1000229891×10
  • 191000347188Not stocked
    seal×10
  • 201000052627
    $1.00
    Plug - 1000052627×10
  • 211000208050
    $2.73
    RUBBER CAP - 1000208050×2
  • 221000128773
    $0.32
    Plug - 1000128773×10
  • 231000328671Not stocked
    plug sleeve housing×1
  • 241000229911
    $3.86
    ROUND SOCKET SLEEVE - 1000229911×10
  • 251000277472
    $2.64
    locking - 1000277472×2
  • 261000277469
    $25.84
    diode - 1000277469×2
  • 271000277442
    $53.81
    pin housing - 1000277442×1
  • 281000277443
    $22.68
    protecting cap - 1000277443×1
  • 291000030446Not stocked
    plug×10
  • 301000320843Not stocked
    plug housing×1
  • 311000320844Not stocked
    cable screwunion×1
  • 321000344373Not stocked
    plug sleeve×4
  • 331000229869
    $1.41
    PLUG SLEEVE - 1000229869×4
  • 341000229866
    $2.40
    PLUG SLEEVE - 1000229866×4
  • 351000019955
    $0.53
    HOUSING-PLUG - 1000019955×2
  • 361000328672Not stocked
    plug sleeve housing×1
  • 381000193647
    $16.60
    relay - 1000193647×2
  • 391000229795
    $9.42
    HOUSING-PLUG - 1000229795×2
  • 401000229786
    $9.23
    HOUSING-PLUG - 1000229786×2
  • 411000203518
    $10.87
    FUSE HOLDER - 1000203518×2
  • 421000214392
    $71.25
    Housing - 1000214392×1
  • 431000101621
    $8.84
    Socket housing - 1000101621×1
  • 441000229790
    $9.75
    PLUG SLEEVE HOUSING - 1000229790×2
  • 451000228723
    $10.08
    RUBBER CAP - 1000228723×3
  • 461000328550Not stocked
    plug housing×1
  • 471000193787
    $2.70
    FUSE - 1000193787×2
  • 481000214394
    $39.39
    Housing - 1000214394×1
  • 491000328676Not stocked
    plug×10
  • 501000346194Not stocked
    plug housing×1
  • 511000322223Not stocked
    bracket×1
  • 521000103949
    $5.74
    bushing housing - 1000103949×5
  • 531000229857
    $49.27
    HOUSING-PLUG - 1000229857×1
  • 541000229851
    $1.55
    HOUSING-PLUG - 1000229851×1
  • 551000229795
    $9.42
    HOUSING-PLUG - 1000229795×2
  • 561000229786
    $9.23
    HOUSING-PLUG - 1000229786×2
  • 571000229766
    $38.54
    HOUSING - 1000229766×1
  • 581000229765
    $1.65
    locking - 1000229765×1
  • 591000229896
    $2.77
    PIN-WIRE,ELECTRICAL - 1000229896×10
  • 601000048986Not stocked
    hexagon nut×4
  • 611000222878
    $6.25
    U-WASHER - 1000222878×8
  • 621000224103Not stocked
    hex screw×4
  • 631000223603Not stocked
    spring washer×4
  • 641000344639Not stocked
    plug housing×2
  • 651000344774Not stocked
    plug locking×2
  • 661000344775Not stocked
    plug sleeve×4
  • 671000344852Not stocked
    seal×4
  • 681000344773
    $1.06
    Plug - 1000344773×2
  • 691000229895
    $1.18
    PLUG SLEEVE - 1000229895×2
  • 701000027435Not stocked
    insulating sleeve×2
  • 711000274691
    $7.56
    plug sleeve housing - 1000274691×1
  • 721000316866Not stocked
    plug sleeve×10
  • 731000344851Not stocked
    seal×10
