WL20e

WL20E suppl. Control circuit Diagram

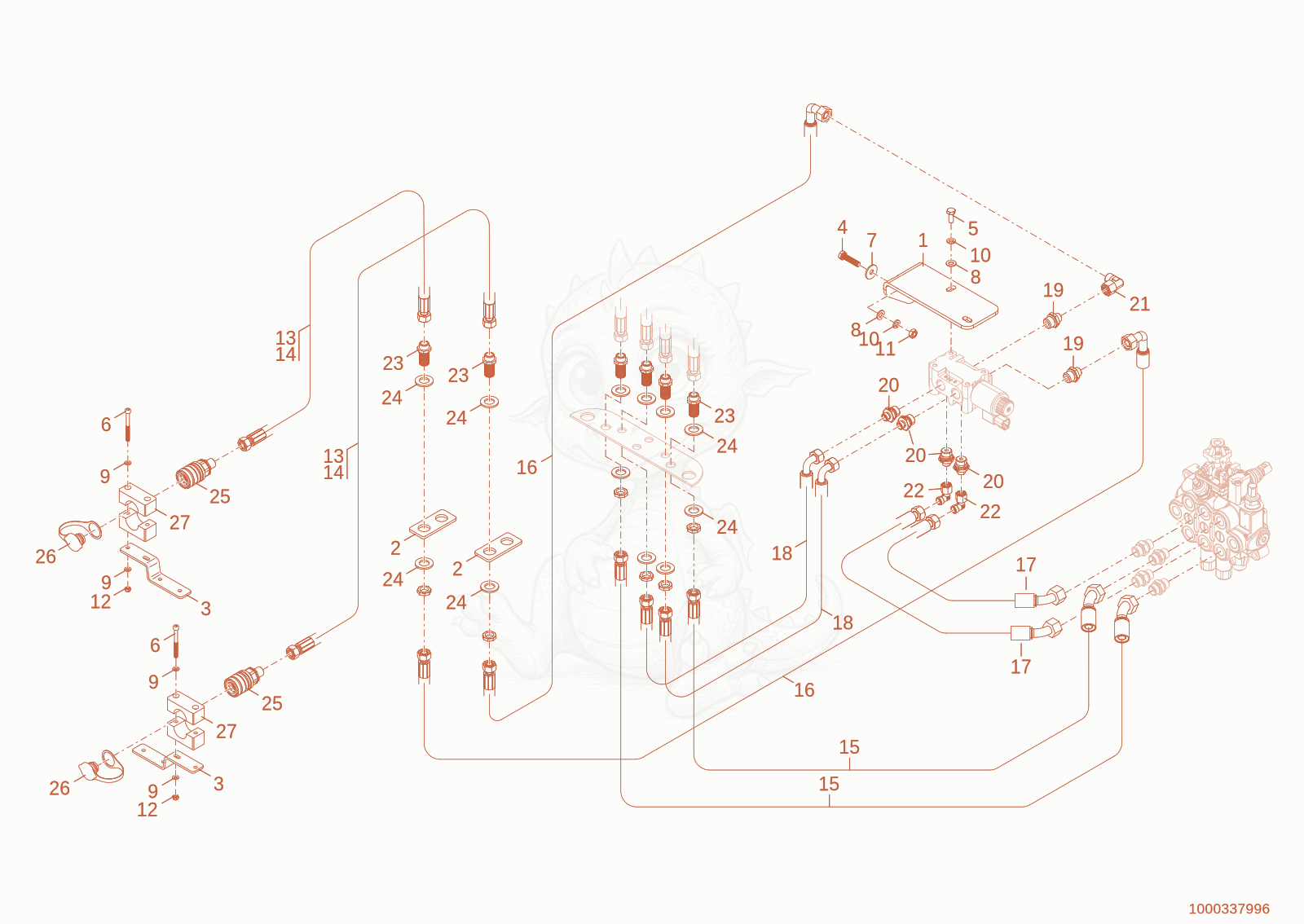

Exploded parts diagram of the suppl. Control circuit of a Wacker Neuson WL20E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000335509Not stocked
    bracket changeoff valve×1
  • 21000211398
    $13.12
    Bracket - 1000211398×2
  • 31000205042
    $60.86
    Bracket - 1000205042×2
  • 41000085391
    $0.91
    hex screw - 1000085391×2
  • 51000013008Not stocked
    hex screw×2
  • 61000222854
    $1.27
    SCREW-HEX - 1000222854×4
  • 71000013027Not stocked
    washer×4
  • 81000015431Not stocked
    washer×2
  • 91000015430Not stocked
    u-washer×4
  • 101000030951Not stocked
    spring washer×4
  • 111000015406Not stocked
    hexagon nut×2
  • 121000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×4
  • 131000221039
    $65.37
    SLHYDR 2SN 10 PN12 0 PN12 45 L2150 S - 1000221039×2
  • 141000264593
    $92.48
    SLHYDR 2SN 10 PN12 0 PN12 45 L2300 S - 1000264593×2
  • 151000221561
    $31.24
    SLHYDR 2SN 10 PN12 0 PN12 45 L1600 S - 1000221561×2
  • 161000337145Not stocked
    Hose×2
  • 171000221677
    $52.34
    SLHYDR 2SC 8,0PN10 0 PN10 45 L1600 S - 1000221677×2
  • 181000337146Not stocked
    Hose×2
  • 191000015493Not stocked
    screw joint×2
  • 201000106888
    $5.47
    GE10LR1/2"EDOMDA3C - 1000106888×4
  • 211000000573Not stocked
    screw joint×1
  • 221000015510Not stocked
    screw joint×2
  • 231000028480
    $5.07
    SV12-LA3C - 1000028480×6
  • 241000082625
    $0.83
    washer 19 - 1000082625×12
  • 251000002995Not stocked
    quick lock coupling×2
  • 261000186757
    $2.77
    dust cap - 1000186757×2
  • 271000222657
    $3.29
    BLOCK-CLAMPING - 1000222657×2
