WL20e

WL20E electric Diagram

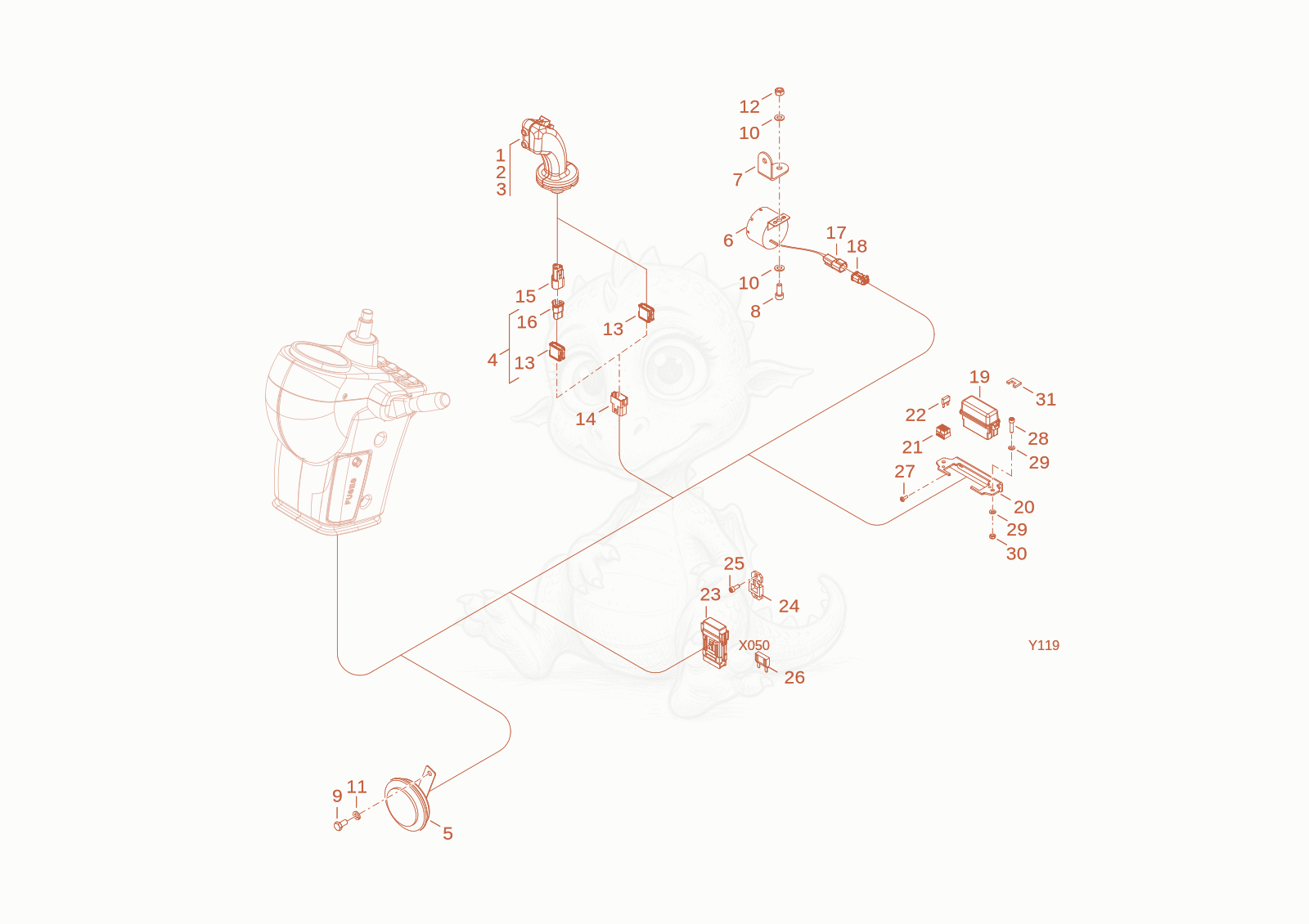

Exploded parts diagram of the electric of a Wacker Neuson WL20E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000209571
    $401.25
    Lever - 1000209571×1
  • 21000205903
    $623.15
    JOYSTICK - 1000205903×1
  • 31000205904
    $813.99
    JOYSTICK - 1000205904×1
  • 41000322477Not stocked
    connection cable×1
  • 51000310585Not stocked
    signal horn×1
  • 61000271322
    $104.29
    REVERSE WARNING SYSTEM - 1000271322×1
  • 71000322344Not stocked
    bracket×1
  • 81000048170
    $3.33
    CHEESE HEAD SCREW - 1000048170×1
  • 91000019136Not stocked
    hex screw×1
  • 101000015431Not stocked
    washer×1
  • 111000030951Not stocked
    spring washer×2
  • 121000013022Not stocked
    hexagon nut×1
  • 131000229772
    $34.60
    HOUSING-PLUG SLEEVE - 1000229772×2
  • 141000229774
    $11.96
    HOUSING-PLUG - 1000229774×1
  • 151000229812
    $8.84
    HOUSING-PLUG - 1000229812×1
  • 161000229808
    $8.99
    HOUSING-PLUG - 1000229808×1
  • 171000229794
    $5.18
    HOUSING-PLUG - 1000229794×1
  • 181000229795
    $9.42
    HOUSING-PLUG - 1000229795×1
  • 191000102290
    $77.37
    Fuse box - 1000102290×1
  • 201000289873
    $60.81
    Fuse Box Carrier - 1000289873×1
  • 221000334196Not stocked
    fuse×3
  • 221000344783Not stocked
    fuse×1
  • 231000155563
    $28.49
    fuse holder - 1000155563×6
  • 241000203519
    $2.68
    fuse holder - 1000203519×6
  • 251000048142
    $1.95
    cheese head screw - 1000048142×6
  • 261000207463
    $8.05
    FUSE - 1000207463×2
  • 271000085550
    $0.80
    ovalhead screw - 1000085550×2
  • 281000082474
    $0.80
    allen screw M4x16-8.8 A2C-DIN912 - 1000082474×2
  • 291000094961
    $1.71
    washer 4,3 DIN125 - 1000094961×4
  • 301000048967Not stocked
    hexagon nut×2
  • 311000146934
    $4.71
    CLAMP CONNECTION - 1000146934×4
