WL20e

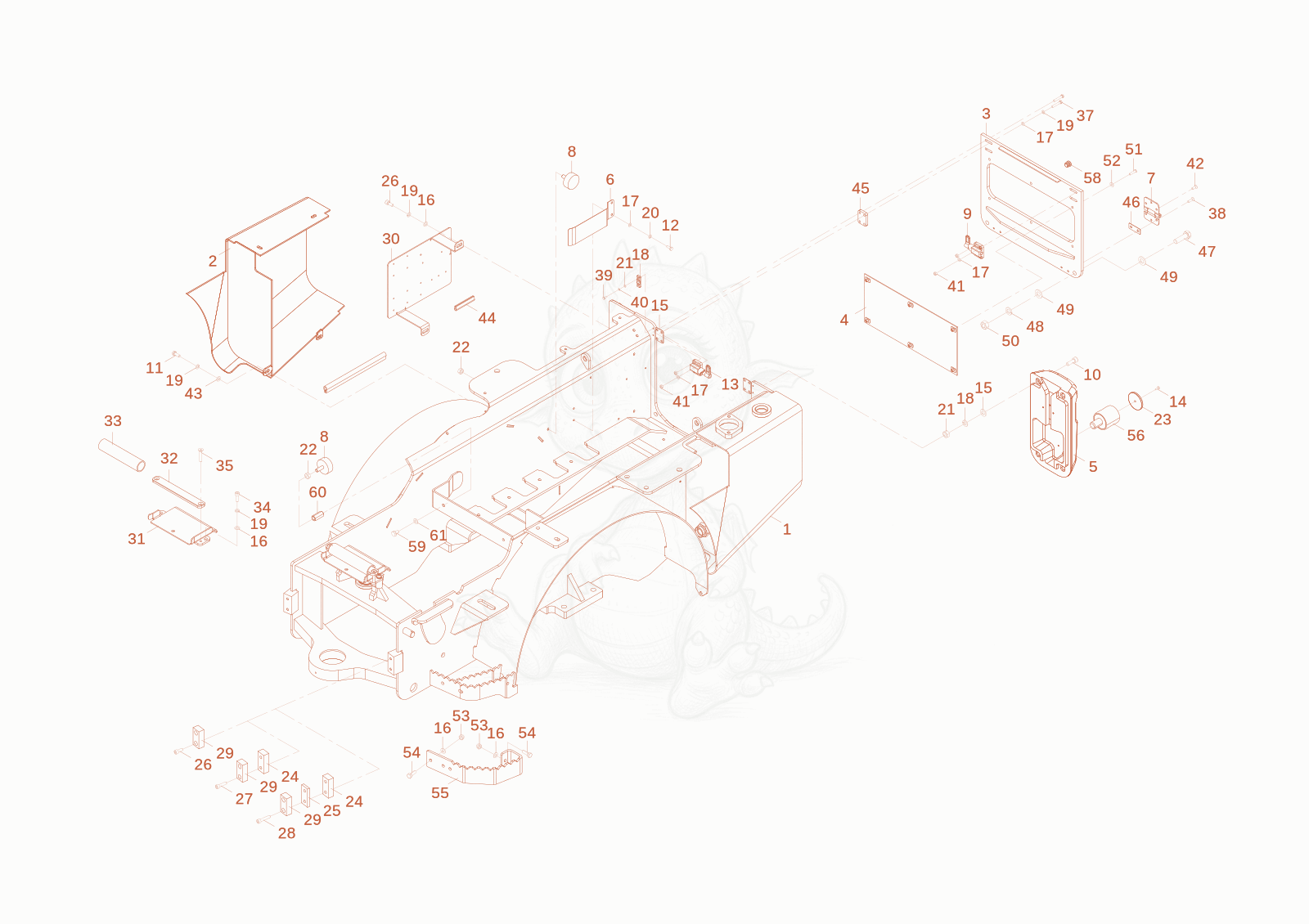

WL20E REAR PART CHASSIS Diagram
- 11000346349Not stockedREAR PART CHASSIS×1
- 21000346383Not stockedcover×1
- 31000304714Not stockedframe cover×1
- AIROUTPUT SCREEN - 1000242422×1
- 51000296014Not stockedprotection×2
- 61000321165Not stockedfuse holder×2
- Hinge - 1000344456×2
- RUBBER BUFFER - 1000228565×2
- 91000333083Not stockedspring catch×1
- 101000015376Not stockedcheese head screw×4
- 111000013008Not stockedhex screw×4
- HEX SCREW - 1000085382×4
- 131000333084Not stockedspring catch×1
- ovalhead screw - 1000082362×4
- 151000334721Not stockeddistance piece×2
- 161000015431Not stockedwasher×9
- 171000015430Not stockedu-washer×16
- 181000334722Not stockedbracket×2
- 191000030951Not stockedspring washer×10
- 201000015444Not stockedspring washer×16
- washer 4,3 DIN125 - 1000094961×4
- 221000015407Not stockedhexagon nut×2
- reflector - 1000098160×2
- DISTANCE PIECE - 1000243925×2
- SPACER-STEERING STOP - 1000200557×2
- CHEESE HEAD SCREW - 1000048170×4
- 271000013014Not stockedcheese head screw×4
- cheese head screw M8x40-8.8 A2C DIN912 - 1000128080×4
- rubber buffer - 1000228616×2
- 301000322102Not stockedFuse Box Carrier×1
- Brackethose 1000292794×1
- BRACKET HOSE - 1000261914×1
- 331000304536Not stockedhose×1
- 341000022386Not stockedcheese head screw×2
- Screw-Countersunk - 1000224075×2
- 361000015366Not stockedhex screw×4
- hex screw - 1000085309×4
- countersunk screw - 1000163440×4
- hex screw - 1000085375×4
- WASHER-SPRING - 1000223604×4
- 411000015405Not stockedhexagon nut×8
- COUNTERSUNK SCREW - 1000085528×4
- 431000013027Not stockedwasher×4
- 441000332187Not stockededge protection×1
- 451000339776Not stockedspacer×2
- 461000339360Not stockedspacer×2
- Screw-Hex - 1000047389×2
- 481000022017Not stockedspring washer×2
- 491000049219Not stockedwasher×4
- 501000049000Not stockedhexagon nut×2
- ovalhead screw - 1000267172×6
- Washer - 1000222875×6
- HEXAGON NUT - 1000114374×3
- 541000015343Not stockedhex screw×3
- 551000418735Not stockedstep stair×1
- 561000358840Not stockedbushing×4
