WL34

WL34 working hydraulic Diagram

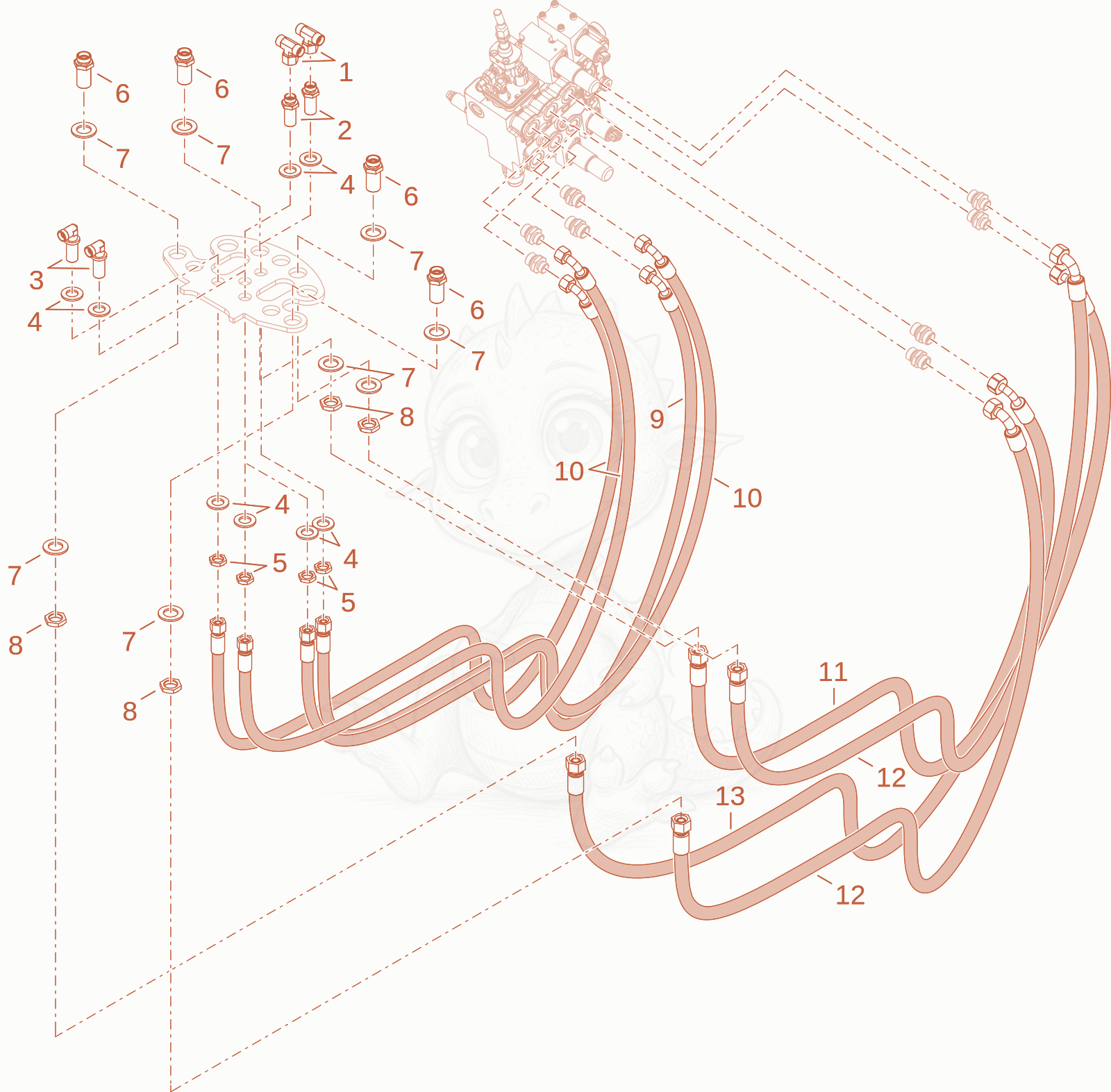

Exploded parts diagram of the working hydraulic of a Wacker Neuson WL34, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000015519
    $12.63
    ET12LOMDA3C - 1000015519×2
  • 21000028480
    $5.07
    SV12-LA3C - 1000028480×2
  • 31000085080
    $12.42
    WSV12LOMDA3C - 1000085080×2
  • 41000082625
    $0.83
    washer 19 - 1000082625×8
  • 51000225972
    $2.38
    VERSCHR. 12L -KONTERMUTTER - 1000225972×4
  • 61000028467Not stocked
    screw joint×4
  • 71000082620
    $0.08
    washer 23 - 1000082620×8
  • 81000225973
    $2.53
    VERSCHR. 15L -KONTERMUTTER - 1000225973×4
  • 91000406769Not stocked
    Hose×1
  • 101000413947Not stocked
    Hose×3
  • 111000400070Not stocked
    Hose×2
  • 121000406764Not stocked
    Hose×1
  • 131000406767Not stocked
    Hose×1
