WL34

WL34 brake pedal Diagram

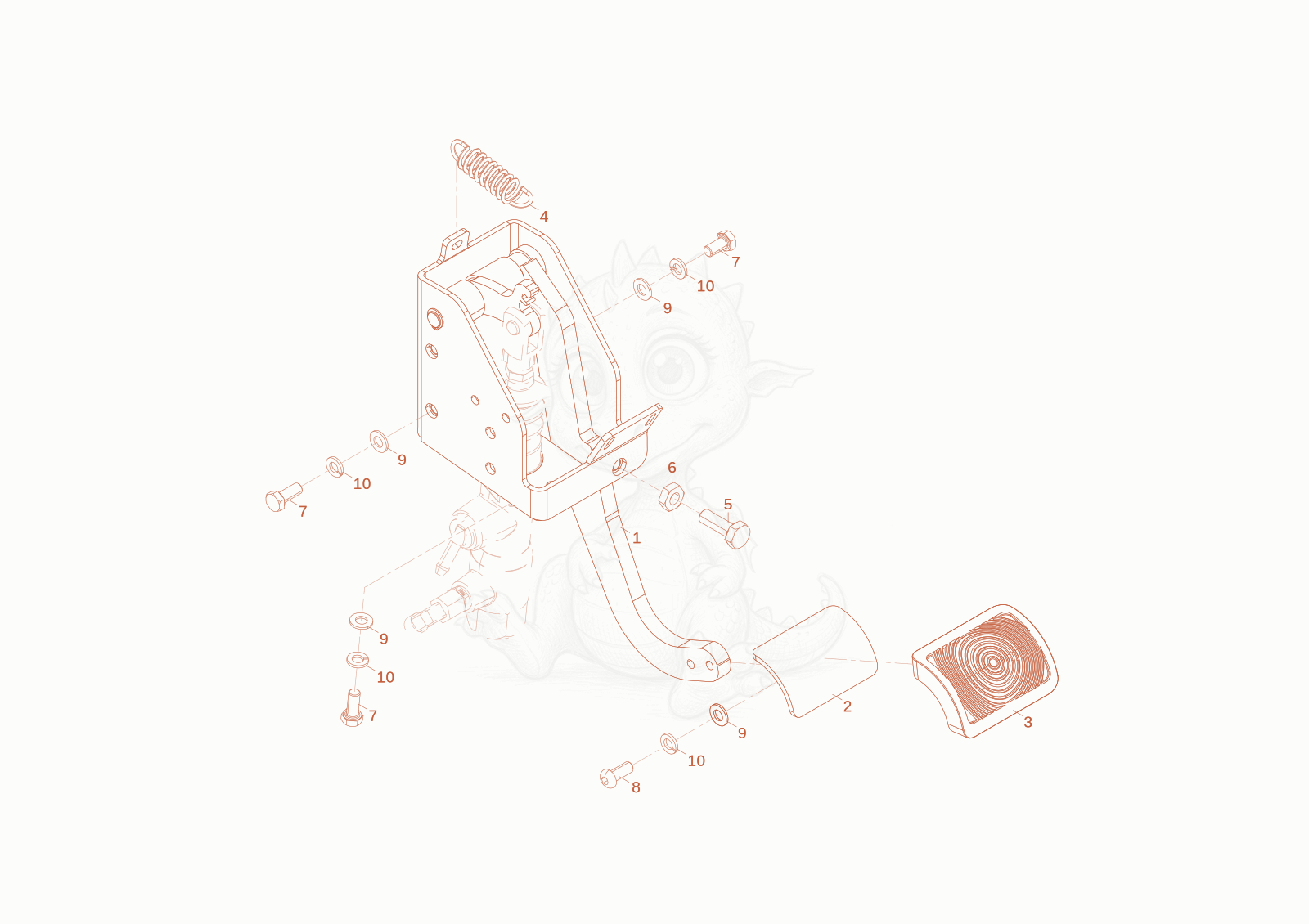

Exploded parts diagram of the brake pedal of a Wacker Neuson WL34, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000336063Not stocked
    brake pedal×1
  • 21000493360Not stocked
    plate×1
  • 31000239150
    $22.18
    Pedal lining - 1000239150×1
  • 41000289774
    $7.47
    tension spring - 1000289774×1
  • 51000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×1
  • 61000222530
    $1.45
    hexagon nut - 1000222530×1
  • 71000013008Not stocked
    hex screw×6
  • 81000222746
    $1.22
    SCREW - 1000222746×2
  • 91000015431Not stocked
    washer×8
  • 101000030951Not stocked
    spring washer×8
