WL34

WL34 Silencing foam Diagram

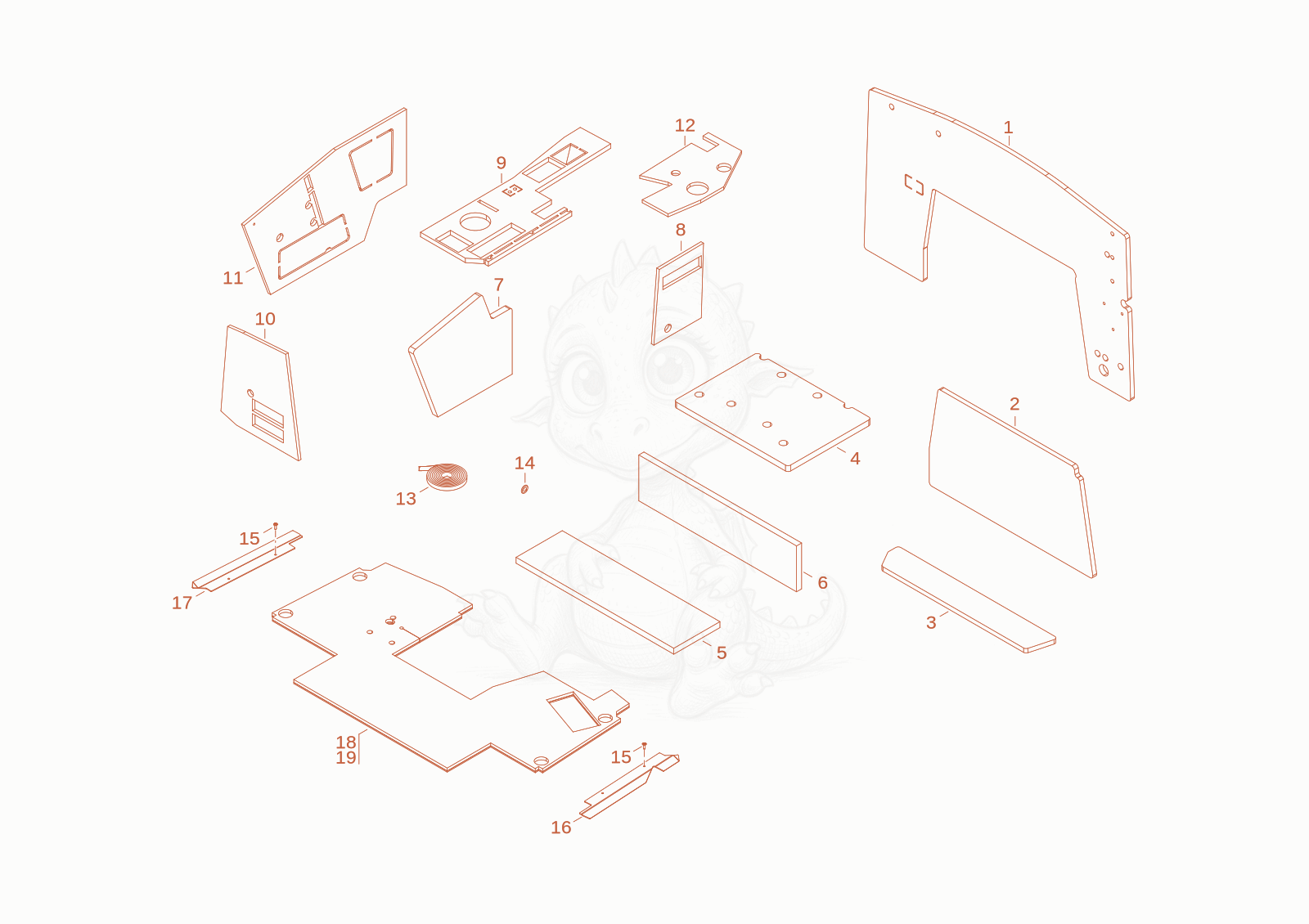

Exploded parts diagram of the Silencing foam of a Wacker Neuson WL34, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000337442Not stocked
    insulating mat rear plate×1
  • 21000336870Not stocked
    insulating mat rear plate×1
  • 31000336869Not stocked
    insulating mat rear plate×1
  • 41000337443Not stocked
    insulating mat cabine×1
  • 51000337445Not stocked
    insulating mat cabine×1
  • 61000337444Not stocked
    insulating mat cabine×1
  • 71000337452Not stocked
    Silencing foam×1
  • 81000337449Not stocked
    Silencing foam×1
  • 91000337451Not stocked
    Silencing foam×1
  • 101000337450Not stocked
    Silencing foam×1
  • 111000337453Not stocked
    Silencing foam×1
  • 121000337454Not stocked
    Silencing foam×1
  • 131000232122
    $32.59
    Foam - 1000232122×2
  • 141000222868
    $1.36
    Washer - 1000222868×42
  • 151000289762
    $1.16
    halfround screw - 1000289762×4
  • 161000360271Not stocked
    cover×1
  • 171000360272Not stocked
    cover×1
  • 181000337516Not stocked
    floor rubber mat×1
  • 191000446268Not stocked
    floor rubber mat×1
