WL34

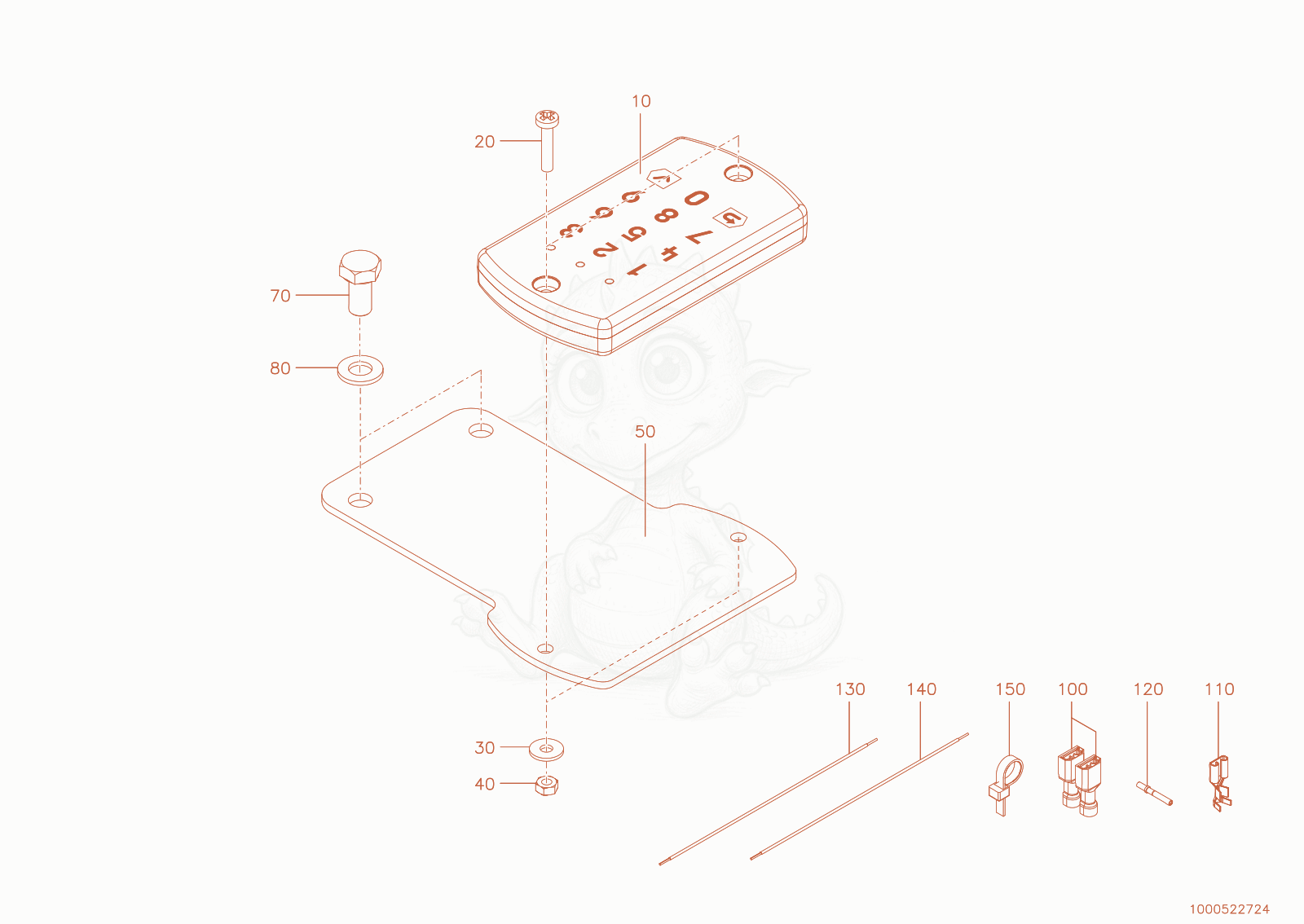

WL34 drive lock Diagram

Exploded parts diagram of the drive lock of a Wacker Neuson WL34, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000533358Not stocked
    keypad×1
  • 201000082362
    $0.75
    ovalhead screw - 1000082362×2
  • 301000222990
    $1.42
    Washer - 1000222990×2
  • 401000085580
    $0.72
    hexagon nut - 1000085580×2
  • 501000403285Not stocked
    bracket×1
  • 501000404700Not stocked
    bracket×1
  • 701000019136Not stocked
    hex screw×2
  • 801000015431Not stocked
    washer×2
  • 1001000229895
    $1.18
    PLUG SLEEVE - 1000229895×2
  • 1101000229925
    $1.41
    PLUG SLEEVE - 1000229925×1
  • 1201000161432Not stocked
    bushing contact×1
  • 1301000198741Not stocked
    vehicle line×1
  • 1401000198799Not stocked
    vehicle line×1
  • 1501000193825
    $1.12
    cable strap - 1000193825×10
