WL34

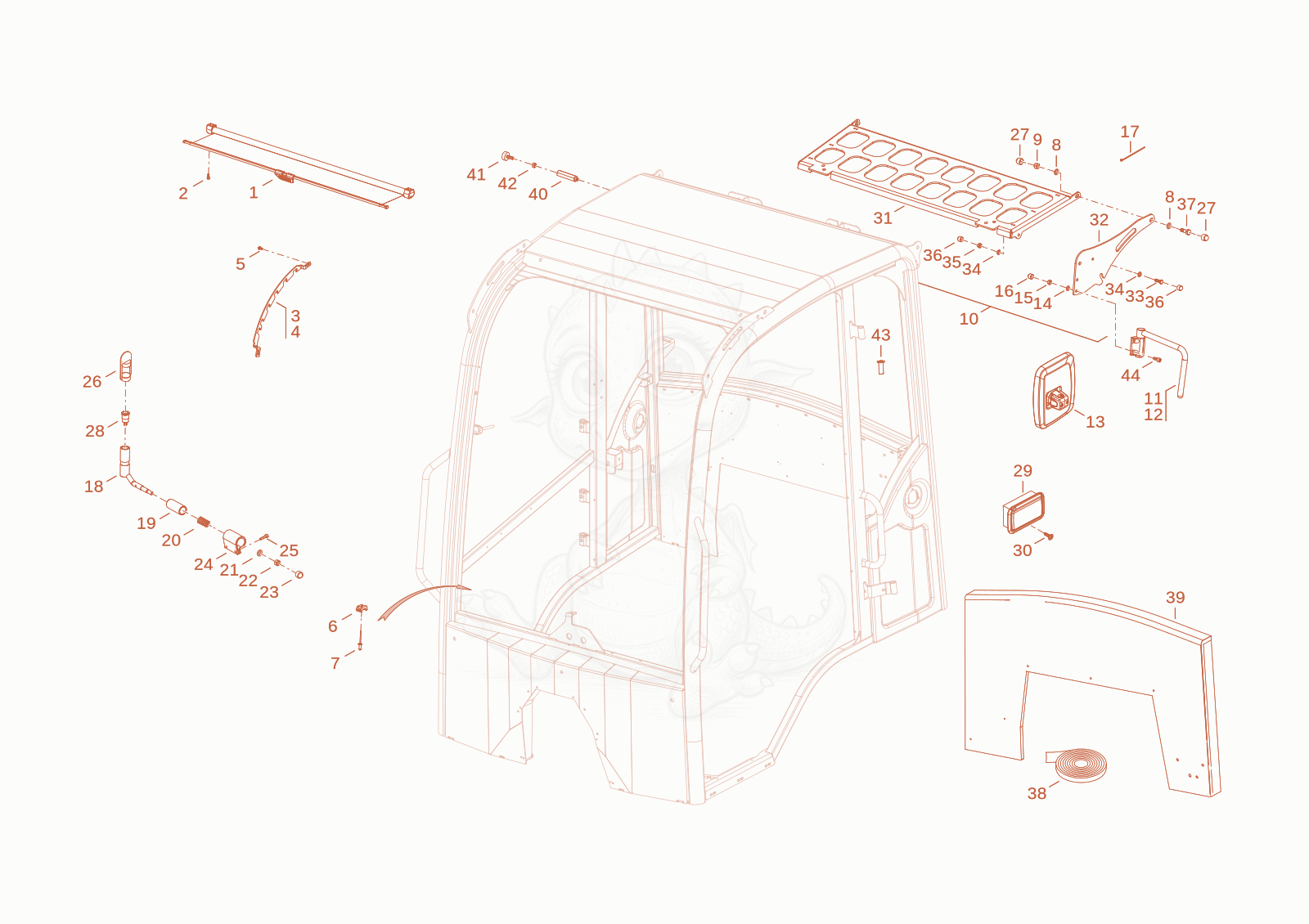

WL34 protecting screen Diagram
- Sun visor - 1000214607×1
- allen screw M5x20-8.8 A2C DIN912 - 1000085452×2
- screening - 1000214604×1
- screening - 1000214605×1
- screw M6x12 ISO7380-2 - 1000165459×4
- MOUNTING CABLE - 1000213645×3
- blind rivet - 1000248703×3
- washer 10,5 A2C DIN125 - 1000015432×8
- nut M10-8 A2C-DIN985 - 1000015408×4
- 101000308454Not stockedfops screen×1
- REFLECTOR-MIRROR - 1000351155×1
- REFLECTOR-MIRROR - 1000351156×1
- 131000316535Not stockedrearview mirror×2
- 141000015448Not stockedwasher×4
- DIN985-M8-8-A2C - 1000015416×4
- 161000004276Not stockedcover cap×4
- 171000331999Not stockedcable strap×10
- bracket rotating beacon - 1000214602×1
- 191000068956Not stockedrotating beacon sleeve×1
- 201000004298Not stockedshim rotary beacon×1
- 211000015448Not stockedwasher×1
- DIN985-M8-8-A2C - 1000015416×1
- 231000004276Not stockedcover cap×1
- console - 1000068954×1
- allen screw M5x20-8.8 A2C DIN912 - 1000085452×2
- 261000069001Not stockedrubber cover plate×1
- 271000067799Not stockedcover cap×8
- INSERT ROTATING BEACON - 1000102844×1
- Ashtray - 1000215979×1
- 301000048653Not stockedcountersunk screw×2
- 311000310903Not stockedfops screen×1
- bracket - 1000310899×2
- 331000047827Not stockedhex screw×2
- 341000015448Not stockedwasher×4
- DIN985-M8-8-A2C - 1000015416×2
- 361000004276Not stockedcover cap×4
- 371000015348Not stockedhex screw×4
- bur strap - 1000238980×10
- 391000360658Not stockedcab trim×1
- screw - 1000310821×2
- RUBBER BUFFER - 1000213413×2
- 421000015413Not stockedhexagon nut×2
- bearing bush - 1000297225×4
- 441000022386Not stockedcheese head screw×4
