WL34

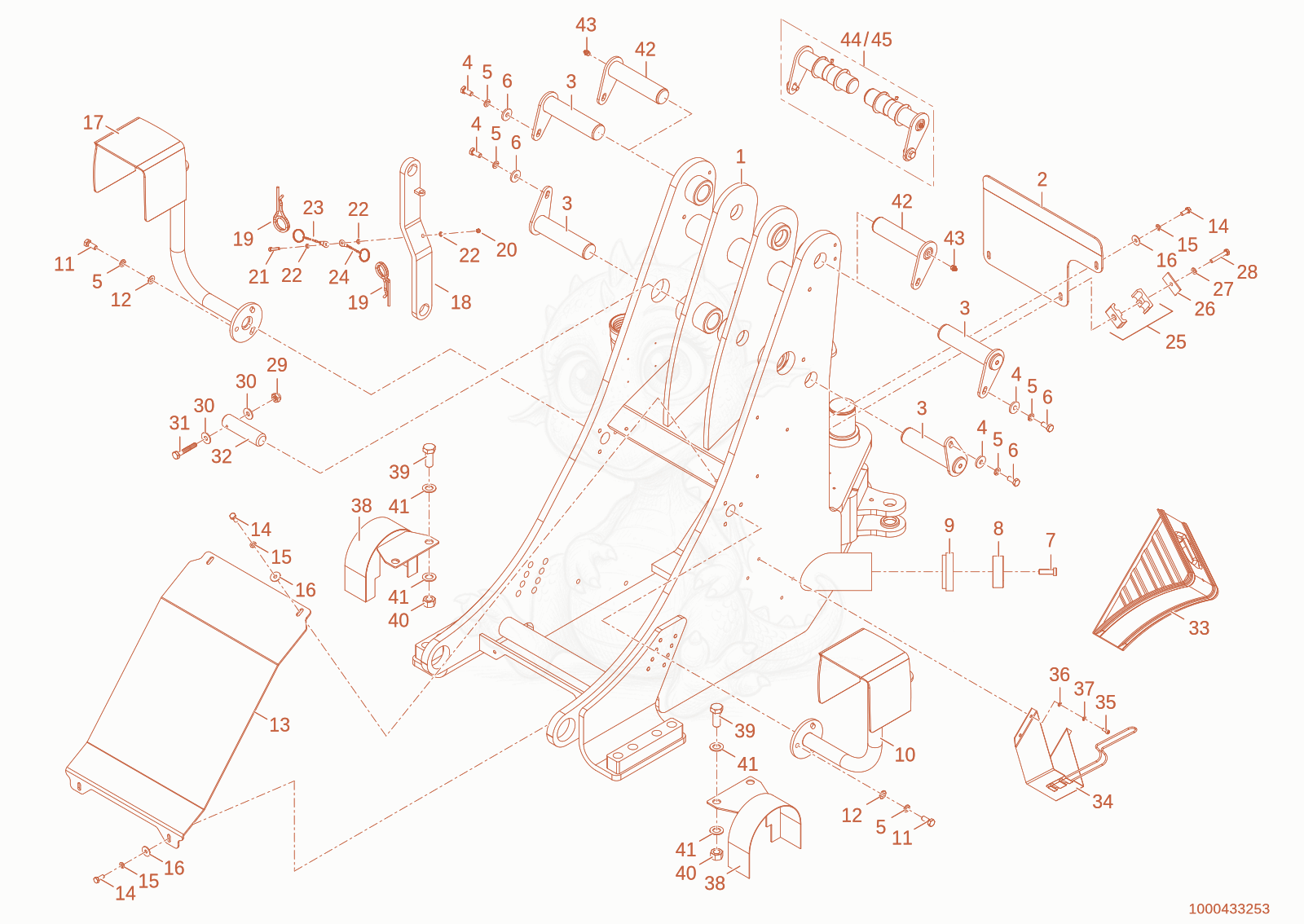

WL34 front part frame Diagram

Exploded parts diagram of the front part frame of a Wacker Neuson WL34, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000480746Not stocked
    front part frame×1
  • 21000292396
    $97.41
    Coverplate 1000292396×1
  • 31000294956
    $82.36
    pin - 1000294956×4
  • 41000222577
    $1.45
    Washer - 1000222577×4
  • 51000022016Not stocked
    spring washer×10
  • 61000223198
    $1.27
    SCREW - 1000223198×4
  • 71000222796
    $1.76
    Bolt - 1000222796×2
  • 81000228577
    $31.76
    Silent block - 1000228577×2
  • 81000491334
    $55.93
    Rubber buffer - 1000491334×2
  • 91000211727
    $167.51
    PLATE - 1000211727×2
  • 101000446492Not stocked
    bracket headlight×1
  • 111000015364Not stocked
    hex screw×6
  • 121000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×6
  • 131000292394
    $229.50
    Coverplate 1000292394×1
  • 141000013008Not stocked
    hex screw×7
  • 151000030951Not stocked
    spring washer×7
  • 161000013027Not stocked
    washer×7
  • 171000446495Not stocked
    bracket headlight×1
  • 181000416788Not stocked
    Transport securing strip×1
  • 191000015446
    $1.51
    plug - 1000015446×2
  • 201000049083
    $0.97
    NUT-HEX - 1000049083×1
  • 211000328397Not stocked
    cheese head screw×1
  • 221000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×3
  • 231000280398
    $26.29
    fasten rope - 1000280398×1
  • 241000418549Not stocked
    fasten rope×2
  • 251000222627
    $4.25
    BLOCK-CLAMPING - 1000222627×1
  • 261000031230Not stocked
    cover plate×1
  • 271000092411
    $2.06
    grooved washer - 1000092411×1
  • 281000085391
    $0.91
    hex screw - 1000085391×1
  • 291000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×1
  • 301000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×1
  • 311000048248Not stocked
    cheese head screw×1
  • 321000241599
    $48.74
    Pin 1000241599×1
  • 331000050427Not stocked
    wheel chock×1
  • 341000029676
    $21.97
    bracket - 1000029676×1
  • 351000018400Not stocked
    hex screw×4
  • 361000015430Not stocked
    u-washer×4
  • 371000015444Not stocked
    spring washer×4
  • 381000420820
    $334.37
    mudguard - 1000420820×2
  • 391000353246
    $7.51
    hex screw - 1000353246×4
  • 401000274071
    $1.81
    Hexagon nut M20-10 ISO 4032-Geomet 321 - 1000274071×4
  • 411000274540
    $1.33
    U-WASHER - 1000274540×8
  • 421000480558Not stocked
    pin×2
  • 431000050469
    $1.68
    grease nipple - 1000050469×2
  • 441000483460Not stocked
    retrofit kit×1
  • 451000483461Not stocked
    retrofit kit×1
