XPUKMAT Cylinder head Diagram

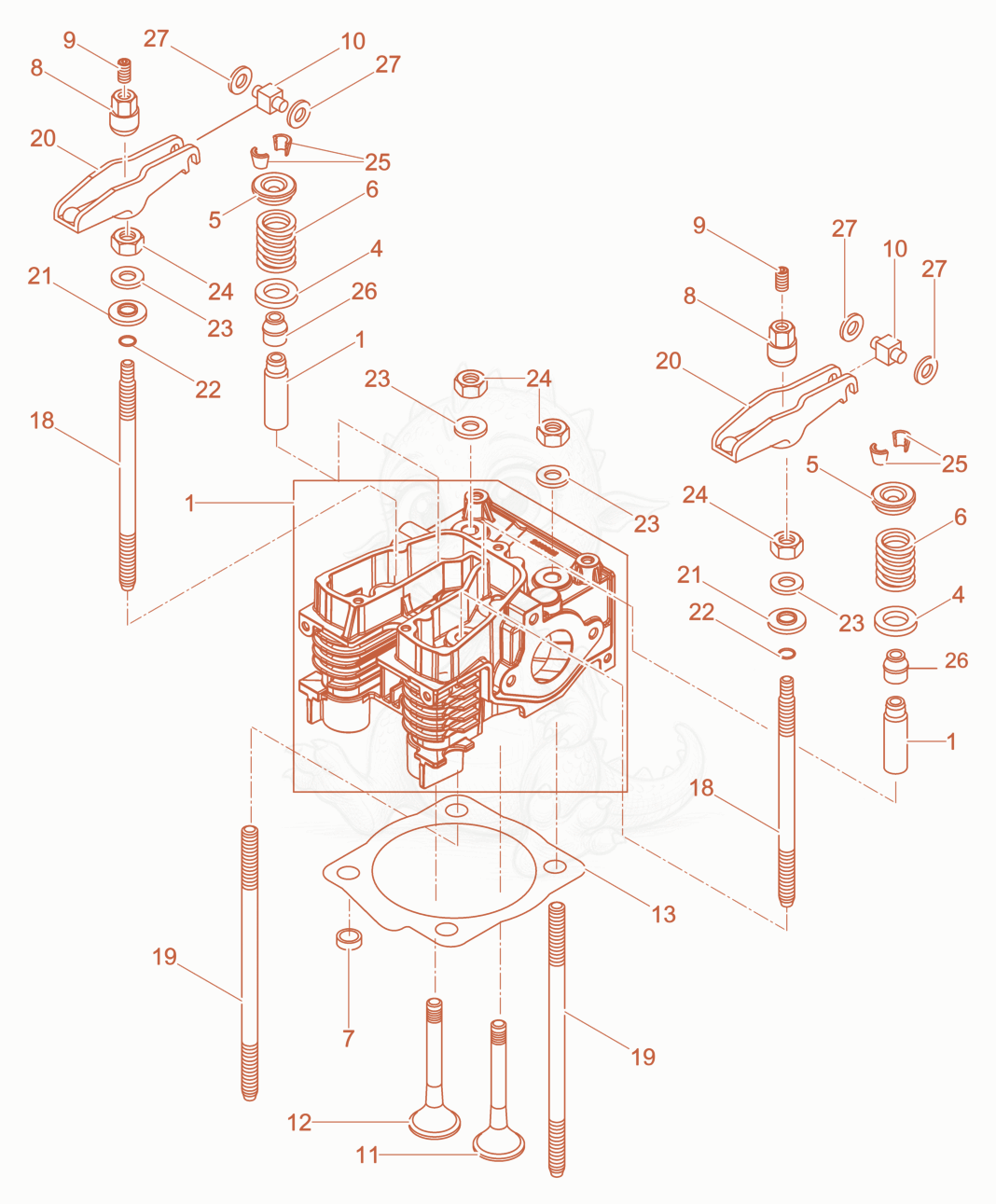

Exploded parts diagram of the Cylinder head of a Wacker Neuson XPUKMAT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100068999Not stocked
    Cylinder head×1
  • 45100069001
    $25.12
    Disc - 5100069001×2
  • 55100069002
    $32.81
    Spring holder - 5100069002×2
  • 65100069003
    $15.30
    Compression spring - 5100069003×2
  • 75100069005
    $12.56
    Centering bus - 5100069005×2
  • 85000108732
    $51.90
    NUT-ROCKER ARM - 5000108732×2
  • 95000129001
    $8.06
    SCREW-SET,M8X10 - 5000129001×2
  • 105100069006Not stocked
    Slider×2
  • 115100069007
    $69.16
    Intake valve - 5100069007×1
  • 125100069009
    $80.38
    Exhaust valve - 5100069009×1
  • 135100069014
    $804.50
    Cylinder head gasket - 5100069014×1
  • 135100069013
    $101.67
    Cylinder head gasket - 5100069013×1
  • 135100069012
    $89.67
    Cylinder head gasket - 5100069012×1
  • 135100069011
    $114.84
    Cylinder head gasket - 5100069011×1
  • 135100069010
    $681.36
    Cylinder head gasket - 5100069010×1
  • 185100069015
    $42.38
    Threaded stud bolt - 5100069015×2
  • 195100069017
    $39.08
    Threaded stud bolt - 5100069017×2
  • 205100069018
    $66.64
    Rocker arm - 5100069018×2
  • 215000205486
    $32.98
    DISC - 5000205486×2
  • 225000205485
    $7.02
    O-RING 1O X 2.5 - 5000205485×2
  • 235000151287
    $11.30
    WASHER 8.4X18X3 - 5000151287×4
  • 245000202334
    $8.06
    NUT M10 DIN934,HEX - 5000202334×4
  • 255000108734
    $16.49
    HOLDER-PLATE,SPRING - 5000108734×2
  • 265100013781Not stocked
    Gasket×2
  • 275000108730
    $8.06
    DISC-SUPPORT, 6X12X1.2 - 5000108730×4
  • 275000202301
    $8.06
    WASHER 6 X 12 X 1.35 - 5000202301×4
