Vibroplate xPU KMAT

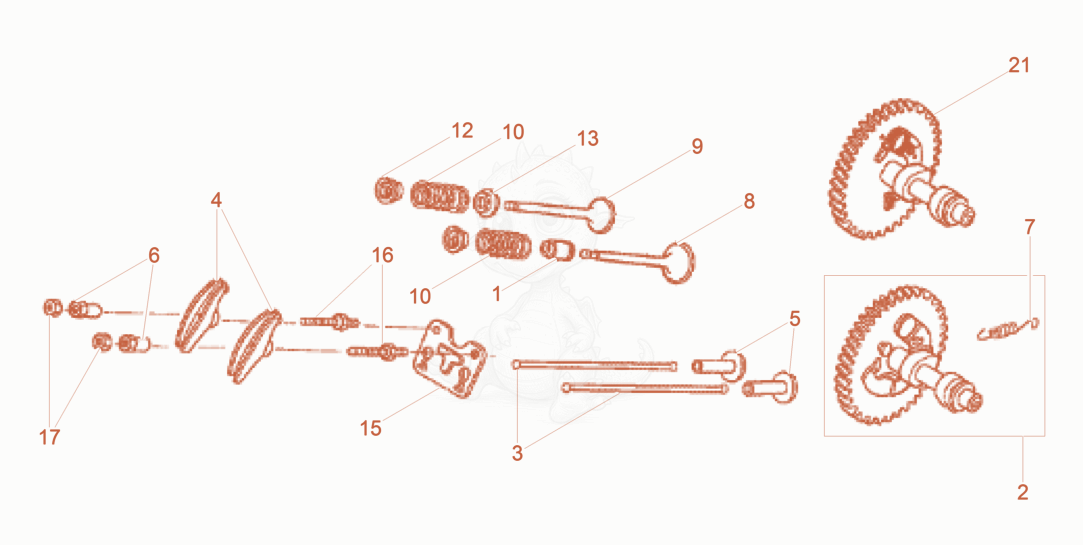

XPUKMAT Camshaft Diagram

Exploded parts diagram of the Camshaft of a Wacker Neuson XPUKMAT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000151750
    $10.09
    SEAL-VALVE STEM - 5000151750×1
  • 25100000379Not stocked
    Camshaft cpl.×1
  • 35200000542
    $9.58
    Push rod - 5200000542×2
  • 45000074675
    $10.99
    ROCKER ARM-VALVE - 5000074675×2
  • 55000074678
    $20.23
    valve tappet - 5000074678×2
  • 65000070985
    $7.60
    PIVOT-ROCKER ARM - 5000070985×2
  • 75000151028
    $3.98
    SPRING-WEIGHT RETURN - 5000151028×1
  • 85200001634Not stocked
    Intake valve×1
  • 95200001635Not stocked
    Exhaust valve×1
  • 105000217481
    $6.99
    Spring - 5000217481×2
  • 125200000496
    $5.70
    Holder-spring - 5200000496×1
  • 135000074659
    $4.53
    SEAT-VALVE SPRING - 5000074659×1
  • 155200000543
    $1.09
    Plate - 5200000543×1
  • 165000072778
    $10.09
    STUD-ROCKER ARM PIVOT - 5000072778×2
  • 175000070984
    $4.97
    NUT 1/4-28,PIVOT ADJUSTMENT - 5000070984×2
  • 215200000541
    $252.29
    Camshaft cpl. - 5200000541×1
