Vibroplate xPU KMAT

XPUKMAT Crankcase Diagram

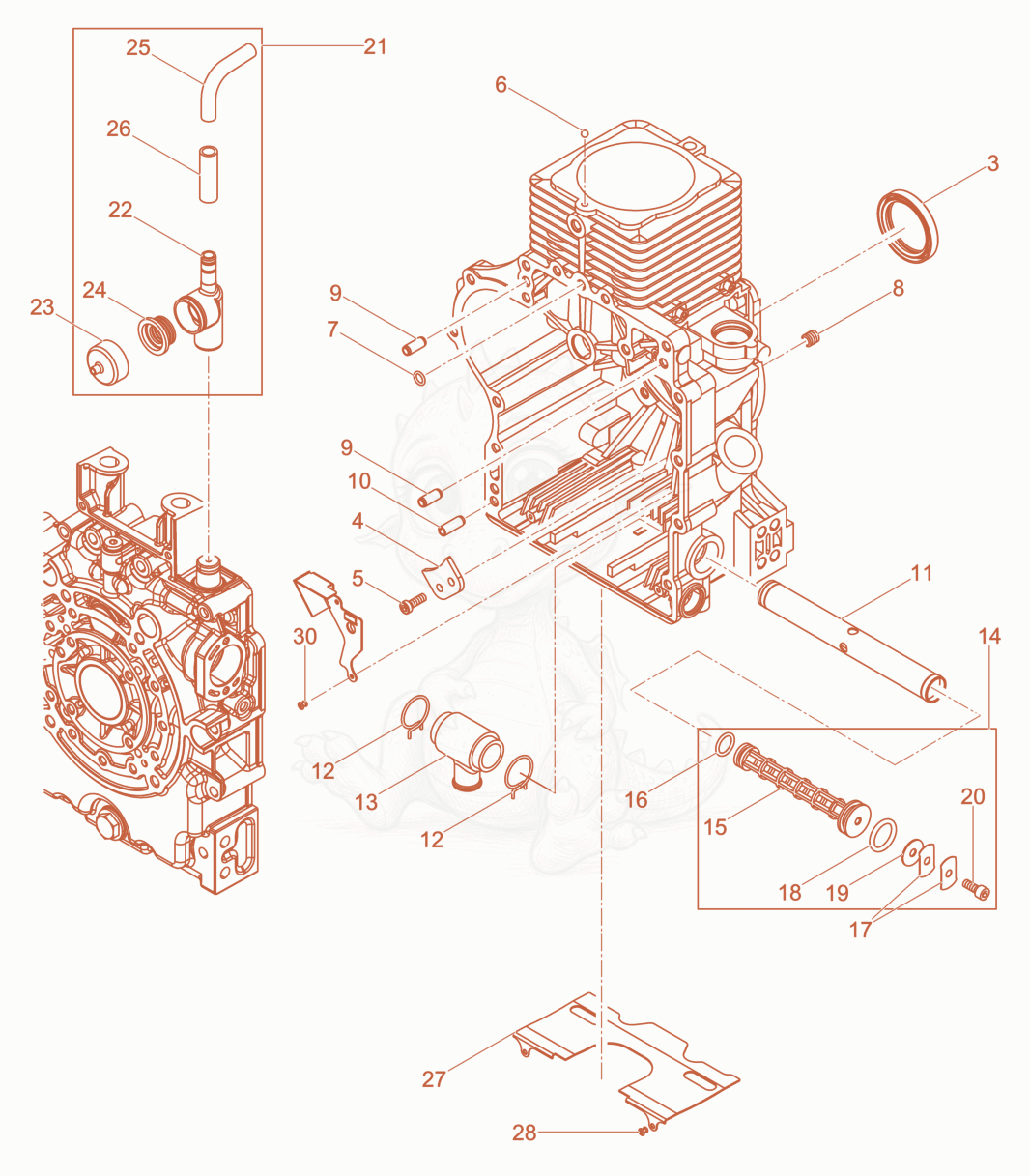

Exploded parts diagram of the Crankcase of a Wacker Neuson XPUKMAT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35100069008Not stocked
    Rotary shaft seal×1
  • 45100069019
    $15.30
    Plate - 5100069019×3
  • 55100069030
    $9.04
    Cheese head screw - 5100069030×6
  • 65100069041
    $6.00
    Ball - 5100069041×1
  • 75004101560
    $7.02
    O-RING 8 X 2-70 DEG. SH - 5004101560×1
  • 85000151353
    $11.94
    SCREW-GRUB M10X10 A3C - 5000151353×1
  • 95000108694
    $8.06
    PIN-CYLINDER, 8M 6X20 - 5000108694×2
  • 105100069052
    $6.00
    Dowel pin - 5100069052×1
  • 115100068964
    $33.90
    Housing - 5100068964×1
  • 125000108688
    $8.06
    CLIP-HOSE - 5000108688×2
  • 135000108691
    $41.16
    PORT-SUCTION - 5000108691×1
  • 145100016522
    $45.73
    FILTER-OIL - 5100016522×1
  • 155100068966Not stocked
    Oil filter×1
  • 165100053372Not stocked
    O-ring×1
  • 175000151230
    $8.06
    SPRING-PLATE - 5000151230×2
  • 185000151229
    $10.36
    O-RING, 20X4 - 5000151229×1
  • 195000108851
    $8.06
    WASHER 6.5 X 22.5 X 1 - 5000108851×1
  • 205000151231
    $8.06
    SCREW-ALLEN, M6X16 - 5000151231×1
  • 215100068967
    $103.63
    Bleeder Valve - 5100068967×1
  • 225100068969
    $18.47
    Housing - 5100068969×1
  • 235100068970
    $12.56
    Cap - 5100068970×1
  • 245100032125Not stocked
    Diaphragm×1
  • 255100068971Not stocked
    Fuel hose×1
  • 265100068972Not stocked
    Hose×1
  • 275100068973
    $14.78
    Baffle - 5100068973×1
  • 285100038898Not stocked
    Blind rivet×2
  • 305100038898Not stocked
    Blind rivet×2
