Vibroplate xPU KMAT

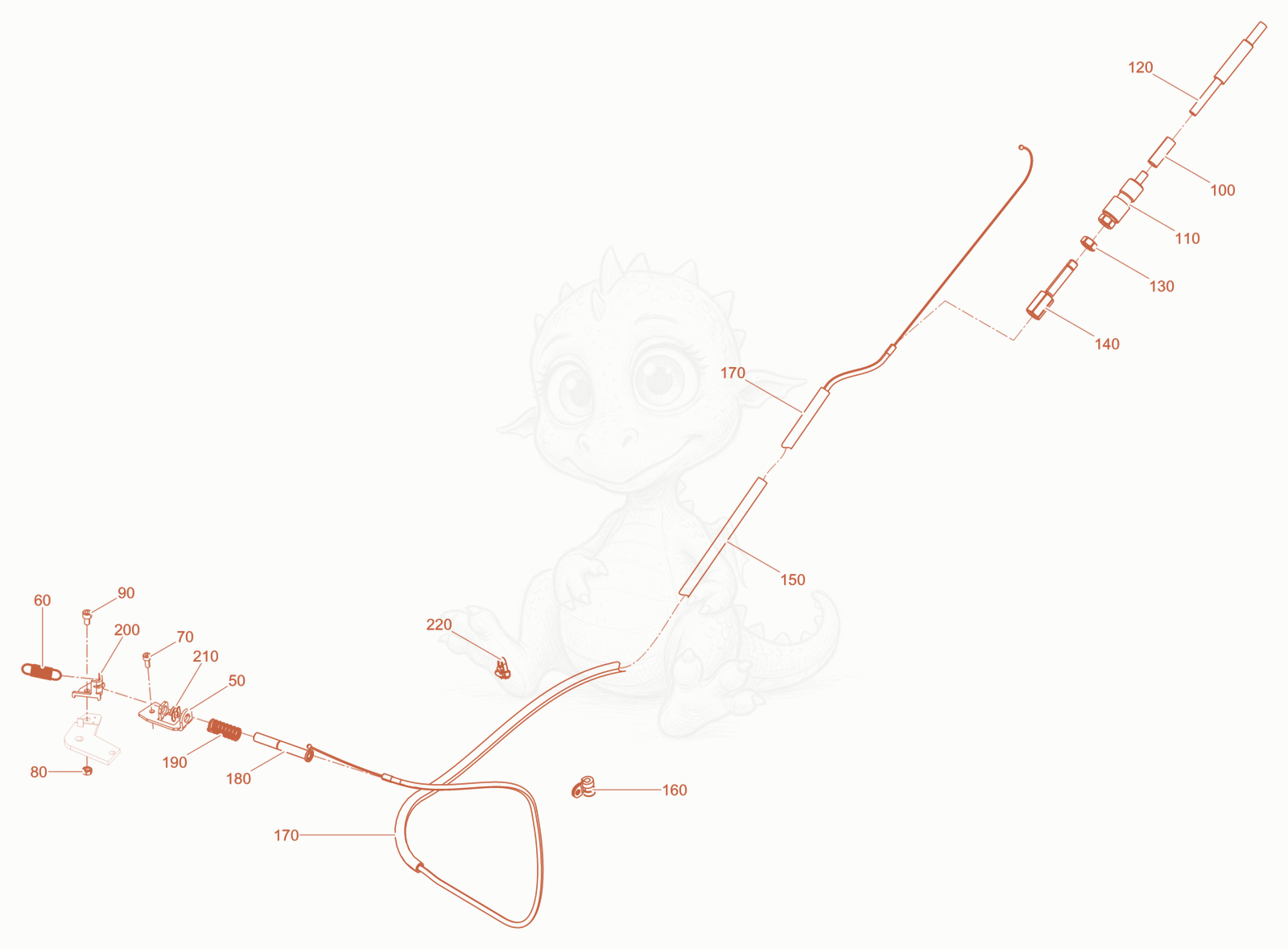

XPUKMAT speed control (BPU) Diagram
- 505100059257Not stockedHolder×1
- 605100058139Not stockedTension spring×1
- SCREW M5 X 12 SOC.HD. - 5000043307×1
- NUT M6 8,HEX - 5000010880×1
- SCREW M6 X 10 SOC.HD. - 5000011555×1
- 1005100071801Not stockedHose piece×1
- 1105100049056Not stockedBolt×1
- 1205100049055Not stockedSleeve×1
- NUT M10 8,HEX - 5000010883×1
- 1405100058133Not stockedAdjusting screw×1
- 1505100068386Not stockedTube×1
- Clamp - 5000212143×1
- 1705100070485Not stockedBowden cable×1
- 1805100068407Not stockedSleeve×1
- 1905100068382Not stockedCompression spring×1
- 2005100059258Not stockedLever×1
- 2105100068383Not stockedRetaining ring×1
- 2205100064264Not stockedcable tie×1
