Vibroplate xPU KMAT

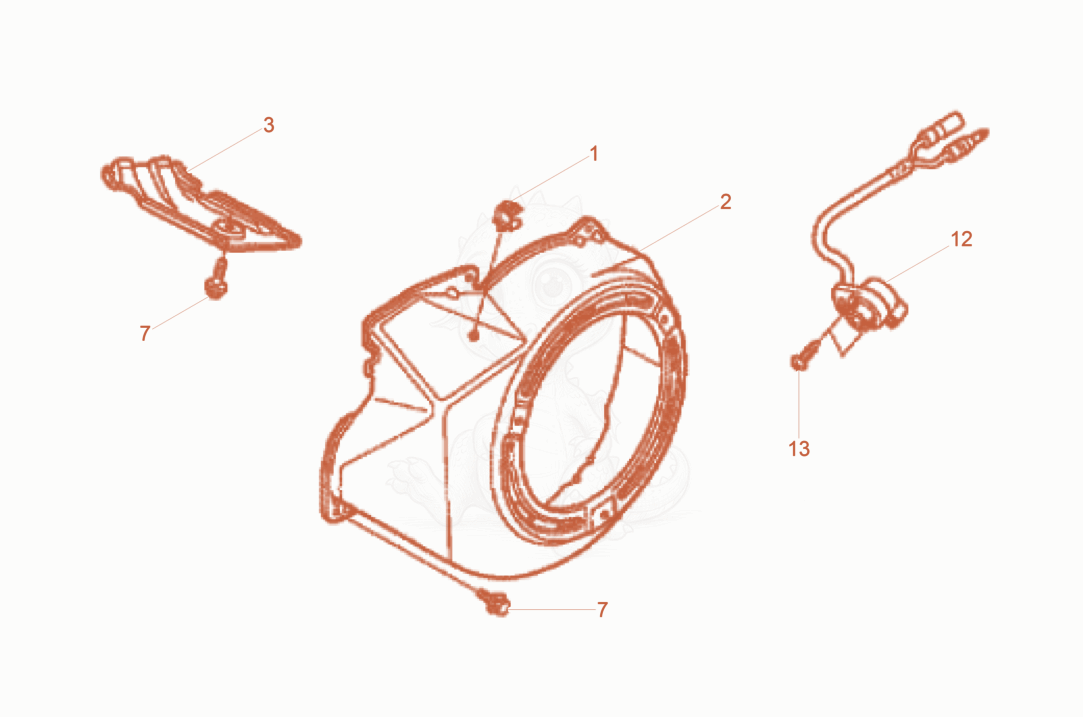

XPUKMAT Fan hood Diagram

Exploded parts diagram of the Fan hood of a Wacker Neuson XPUKMAT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000074689
    $3.60
    CLIP - 5000074689×1
  • 25100000418
    $38.37
    Cover cpl. - 5100000418×1
  • 35200000426
    $2.06
    Cover - 5200000426×1
  • 75000053990
    $2.33
    SCREW M6 X 12,HX.FLANGE HD. - 5000053990×6
  • 125100000436
    $73.07
    Engine stop cpl. - 5100000436×1
  • 135100000448Not stocked
    Screw×2
